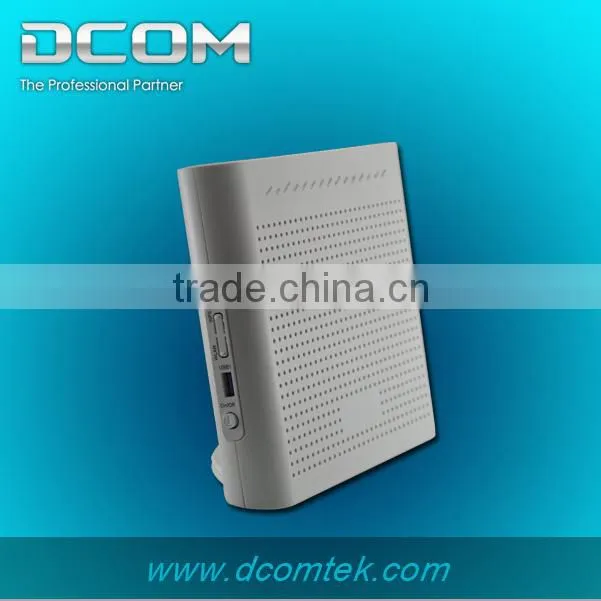

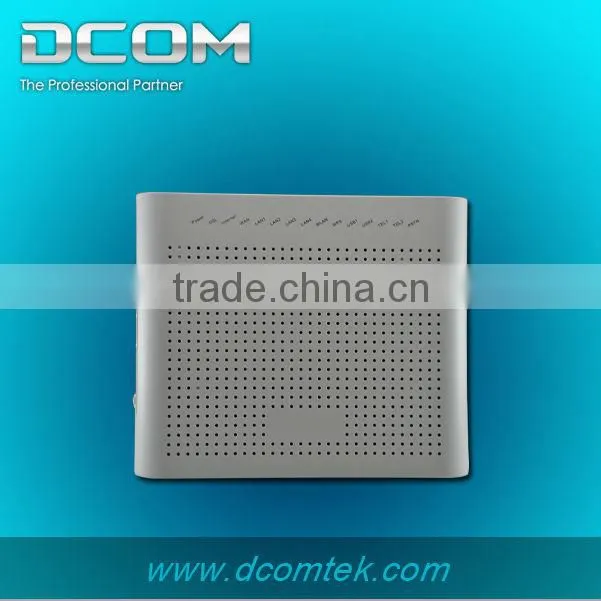

voip ports 300Mbps vdsl wifi router

System Specifications

Chipset

BCM63168V

DRAM

DDR3 1Gbit

Flash

SPI 16MB or NAND 1Gbit

Wi-Fi

2.4GHz or 5GHz BCM63168V, 802.11b/g/n, 2T2R

Features and Technical Specifications

ADSL Features

=T1.413i2, G.992.1

=G.dmt, G.992.2, G.lite

=G.992.3 (G.bis/ADSL2)

=G.992.5 (ADSL2+)

=ITU G.994.1 (G.hs)

=Annex L (Reach Extended ADSL2)

=Support ATM forum UNI3.0, 3.1 and 4.0 permanent virtual circuits (PVCs)

=Support CBR, UBR, VBR-rt, VBR-nrt

=Support multiple PVCs

Support ITU-T i.610F4/F5 OAM

VDSL Features

=ITU-T G.993.2 VDSL2

=Support 8a,8b,12a,12b,17a 12a_Bonding profile

=Support G.vector

=Support ATM and PTM

=Support G.INP

Protocol Features

=RFC2684 multiprotocol Encapsulation over ATM Adaptation Layer 5

=RFC1483 multiprotocol Encapsulation over ATM Adaptation Layer 5

=RFC2364 PPP over ATM ALL5 (PPPoA)

=RFC2516 PPP Over Ethernet (PPPoE)

=RFC1662 PPP in HDLC-like Framing

=RFC1332 PPP Internet Protocol Control Protocol

=RFC1577/2225 Classical IP and ARP over ATM (IPoA)

=RFC894 A Standard for the Transmission of IP Datagrams over Ethernet Networks

=RFC1042 A standard for the Transmission of IP Datagrams over IEEE 802 Networks

=MER (a.k.a IP over Ethernet over AAL5)

=Support ALG (Application Level Gateways)

=IEEE802.3

=IEEE802.3u

=IEEE 802.11b

=IEEE 802.11g

=IEEE 802.11n

Bridging Features

=Self-learning bridge (IEEE 802.1D Transparent Bridging)

=At least 64 learning MAC addresses

=Support IGMP snooping

Routing Features

=RFC768 User Datagram Protocol (UDP)

=RFC791 Internet Protocol (IP)

=RFC792 Internet Control Message Protocol (ICMP)

=RFC793 Transmission Control Protocol (TCP)

=RFC826 An Ethernet Address Resolution Protocol (ARP)

=RFC862 Echo Protocol

=Support IP routing

=Support transparent bridging

=Support source and destination routing

=Support DHCP server/client

=Support UPnP

=Support NAT,NAPT

=Support DMZ

=Support IP QoS

=Support IGMP proxy

=Support IPv6

Management

=Device Configuration, Management and Update

=Web based GUI

=Localization support

=Embedded web server

=Download image via HTTP, TFTP client, TFTP server, FTP server

=Command Line Interface via serial port, telnet, or ssh

=Menu-driven CLI via serial port or telnet

=Universal Plug and Play (UPnP) Internet Gateway Device (IGDv1.0)

=WAN Management Protocol (TR-069)

=SNMP v1/v2

=PSI configuration file upload and download

=Date/time update from SNTP Internet Time Server

Security

=Three-level login including local admin, local user, and remote technical support access

=Service access control based on incoming interface: WAN or LAN

=Service access control based on source IP addresses

=Protect DOS attacks from WAN: SYN flooding, IP surfing, ping of Death, fragile, UDP ECHO (port 7), teardrop, land

=PAP (RFC1334), CHAP (RFC1994), MSCHAP for PPP session

=IP filter, Parental control

Wireless Features

Standard

IEEE802.11b/g/n

Modulation schemes

=802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS

=802.11b: CCK, DQPSK, DBPSK

=HT20 and HT40: 64 QAM, 16QAM, QPSK, BPSK

Wireless data rate

=802.11b: 11, 5.5, 2, 1 Mbps per channel, auto fallback for extended range

=802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps per channel, auto fallback for extended range

=HT20: up to 150 Mbps

=HT40: up to 300 Mbps

Security

64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x

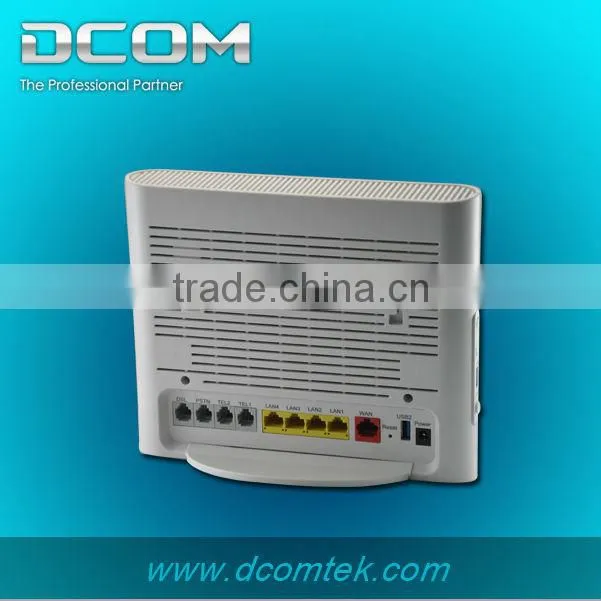

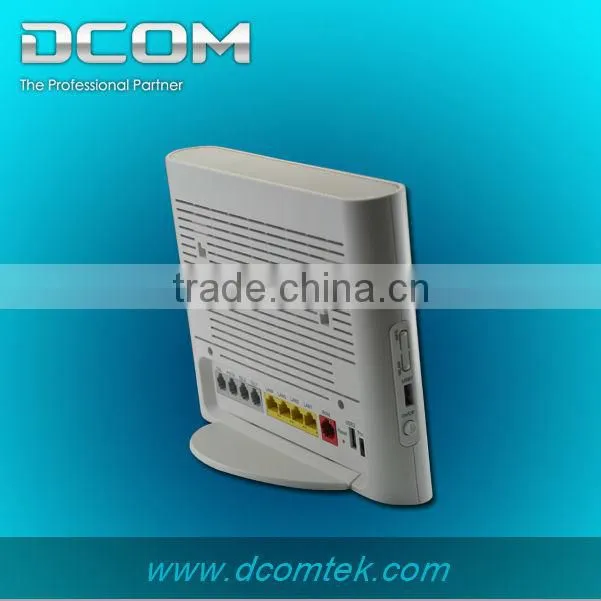

External Connectors

=1 x VDSL interface

=4 x RJ45 LAN Ethernet interfaces 10M/100M

=1 x 10M/100M/1000M WAN Interface

=2 x USB 2.0 host

=2 x FXS

=1 x FXO

=1 x reset button

=1 x WPS button

=1 x WLAN button

=1 x power jack

=1 x power switch

Environment Requirement

Operating Temperature

0ºC—40ºC

Storage Temperature

-20ºC—70ºC

Operating Humidity

10%—95%, non-condensing

Storage Humidity

5%—95%, non-condensing

Power Supply

12VDC, 2.0 A

Consumption

24W (including power Adapter)

EMC and Safety

Regulation Compliance

=CCC Class B

=CE

Safety Regulations

UL

Green Standard

RoHS

Physical Characteristics

Physical Dimension

L*W*H=250mm*61mm*173mm

Weight

466g (not including power adapter)
