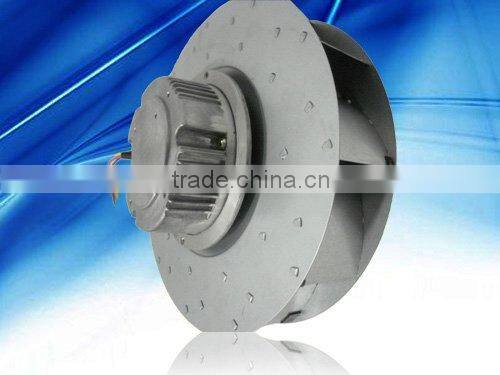

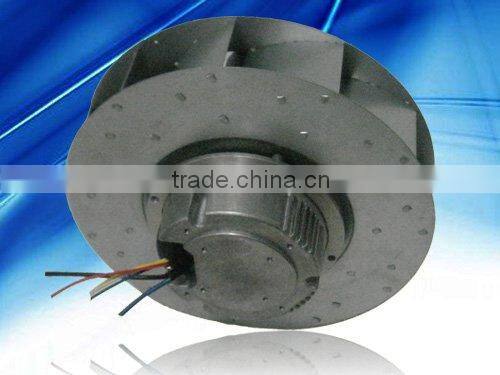

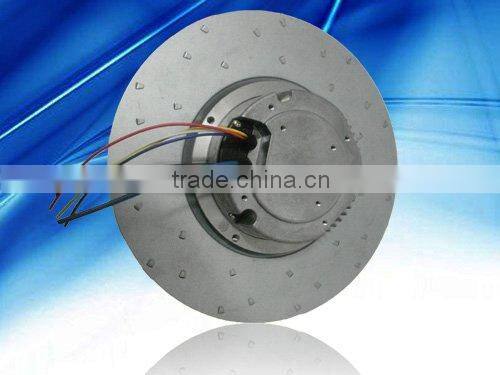

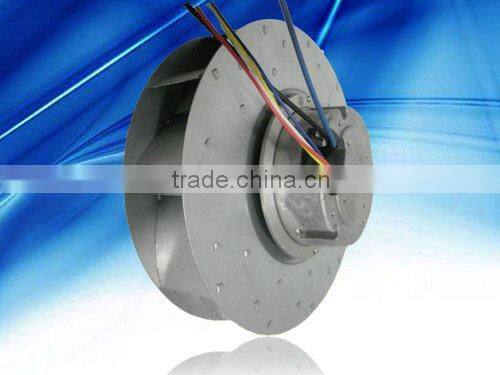

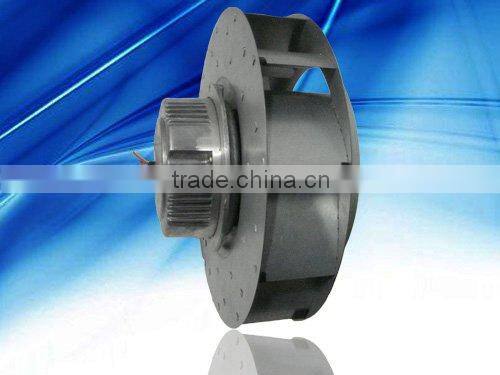

AC Brushless Fan
Negotiable
/ Piece
200 Pieces(Min. Order)
- ShenZhen
You May Like
Product Details
| Electric Current Type | Other, EC | Blade Material | Other, Metal Sheet | |
| Mounting | Other, heat exchanger/ventilations | Place of Origin | Guangdong, China | |
| Brand Name | PSCMF | Model Number | PI2E25080HB2M | |
| Power | 150W | Voltage | 230V | |
| Air Volume | 920 CFM | Speed | 2700 RPM | |
| Certification | Other, On process |
Product Description
Specifications
1.AC Brushless Fan2.Rated Voltage:230V
3.Rated Speed:2700RPM
4.Rated Current:1.05A
Ra250 AC Brushless Fan/AC Brushless Fan/AC Industrial Fan/EC Air Conditioner
- size Ø250 x130mm
- Weight: 2.1kg
- Impeller: Metal Sheet
- Number of blades : 11
- Direction of rotation: Clockwise, seen on rotor
- Type of protection: IP44
- Insulation: Class A
- Mode of operation: Continuous operation(S1)
- Safety: In process
- Operation Temperature: -20°C~+60°C
| Listed Model | Bearing System | Rated Voltage | Operating Voltage | Frequency | Rated Current | Rated Speed | Power | Air Flow | Air pressure | Noise Level | ||
| Part NO. | B / S | VAC | VAC | Hz | A | RPM | W | CFM | m3/h | mmH2O | inH2O | dBA |
| PI2E25080HB2M | B | 230 | 184~276 | 50/60 | 1.00 | 2,600 | 145 | 772.4 | 1312.0 | 59.98 | 2.36 | 70 |
| PI2E25080UB2M | B | 230 | 184~276 | 50/60 | 1.35 | 2,900 | 201 | 868.4 | 1475.2 | 77.13 | 3.04 | 75 |
