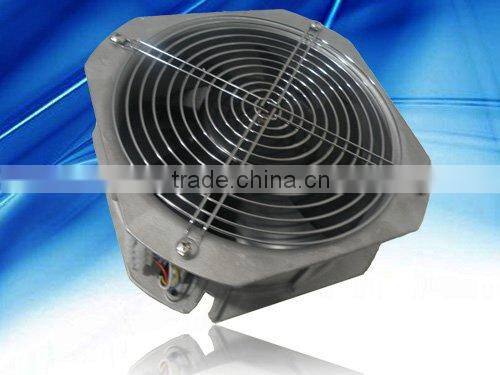

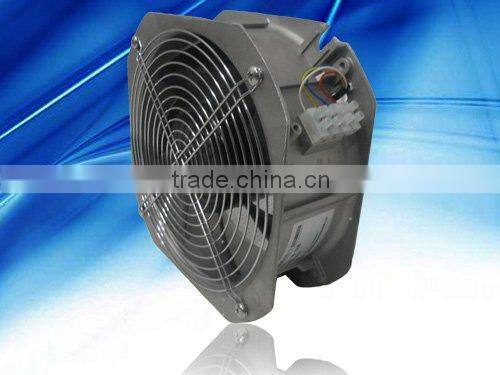

Dc Axial Fan Impeller

Dc Axial Fan Impeller thumbnail-1
Dc Axial Fan Impeller photo-1
Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Other, heat exchanger/ventilations
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
PSC Motor And Fan China Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type DC
Mounting Other, heat exchanger/ventilations
Blade Material Plastic
Place of Origin Guangdong, China
Brand Name PSCMF, PSCMF
Model Number PF2422580HB2M
Voltage 24 V
Power 124.8W
Air Volume 1130 CFM
Speed 2750 RPM
Certification Other, On process

Specifications

1.225x80mm DC Axial Impeller
2.Rated Voltage:24/48V
3.Rated 2750RPM
4.PSC-The No 2 DC Fan Suppllier

225x80mm DC Axial Impeller/Axial Impeller/Axial DC Small Impeller/Axial Fan



 Dc axial fan impellerDc axial fan impellerDc axial fan impellerDc axial fan impeller

  1. Size Ø225 x80mm
  2. Weight: 2.1kg
  3. Impeller: Metal Sheet
  4. Motor: DC brushless external rotor Motor
  5. Rotor: Black paint
  6. Insulation: Class A
  7. Safety: On process
  8. Operation Temperature:-25°C~+60°C



Listed
Model		 Bearing
System		 Rated
Voltage		 Operation
Voltage		 Rated
Current		 Rated Power Rated
Speed		 Air
Flow		 Air
pressure		 Noise
Level		 Available Features (Optional)
Part NO. B / S / F VDC VDC A W RPM CFM mmH2O dBA Tachometer
Output		 Autorestart Speed Control
PF4822580HB2M BALL 48 36~57 2.6 124.8 2,750 1130 22.44 70 / / /
PF2422580HB2M BALL 24 16~28 2.4 124.8 2,750 1130 22.44 70 / / /
