Specifications
alibaba machine QT4-24 small brick making machine line
1. CE, SGS, BV, ISO
2. Siemens motor, Mitsubish PLC
3. Advanced design

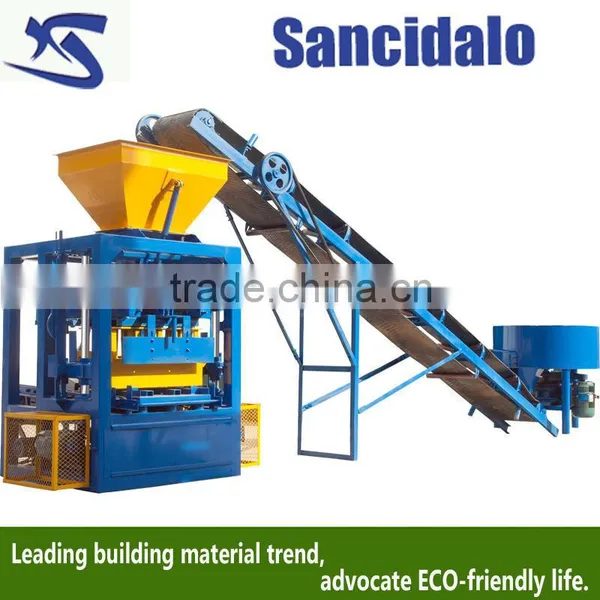

QT4--24 automatic brick making machine
Introduction
1. QT4-24B brick making machine /block making machine/ brick machine/block machine is based on original block molding machine with technological innovation.
2. Its design is reasonable with excellent performance.
3. It can make hollow bricks and solid bricks by changing another mould, very easy operation.
4. The block making machine is equipped with super vibration motor and the production of blocks are of good quality,large density and high strength.
5. T brick making machine adopts the best steel and welding technology,durable,firm,quake-proof.
6. Materials are widely used ,such as sand, fly ash,kuangfei,slag,cement and sail coal cinder slag etc.
Technical Parameter
Dimension of host machine |
2060×1730×2580mm |
Host machine power |
13.9KW |
Vibration force |
35.5KN |
||
Mould period |
20-30s |
Capacity |
22.5KW |
The size of the pallet |
850×550×30mm |
Mixer model |
JD350 |
Weight of the machine |
3T |
Voltage |
as per local condition |
Theoretical workshop area is 50 m2 3-4workers are needed.The office , curing area and stacking area will be arranged according your conditions.
Theoretical Production Capacity
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
400X100X200 |
7 |
630-840 |
5040-6720 |
400X150X200 |
5 |
450-600 |
3600-4800 |
400X200X200 |
4 |
360-480 |
2880-3840 |
400X250X200 |
3 |
270-360 |
2160-2880 |
240X115X 52 |
24 |
2400-2880 |
19200-23040 |
all kinds of hollow and solid bricks | |||
Complete equipment
Device |
Specification |
Power (KW) |
Unit |
Quantity |
Block machine |
QT4-26 |
13.9 |
Set |
1 |
Mixer |
JD350 |
7.5 |
Set |
1 |
Belt conveyer |
L=6M |
1.1 |
Set |
1 |
Mould |
Set |
2 |
||
Block trolley |
Set |
2 |
||
Spare parts and tools |
Set |
1 |
JD350 Mixer
Maim Technical Specifications | |
Discharging capacity |
0.35 m3 |
Feeding capacity |
0.56 m3 |
Productivity |
≥4m3/h |
Max. aggregates diameter |
80mm |
Mixer power |
7.5 KW |
Diameter |
1200mm |
Wegiht |
0.52Ton |
Raw materials
Certifications
Company informtion
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
| Q: | Can this machine make my block? |
| A: | We can design molds according to customers' drawings/figurations. |
| Q: | What is your payment term? |
| A: | T/T,L/C, D/A, D/P, West union, and MoneyGram. |
| Q: | What is your delivery time? |
| A: | 20-30 days after receiving the prepayment |
| Q: | How about your packing? |
| A: | Suitable for shipping, nude package,and shipped in 20/40 feet container |
| Q: | Whaere is your factory located and which port is the loading port? |
| A: | Our factory is located in Linyi City,Shandong province.The loading port is Qingdao/Tsingtao 2hours by car from our company. |
| Q: | Are you a factory or trading company? |
| A: | We are the professional manufacturing factory and we have exported |
| our block machines to many overseas market. |
