Help CenterQT-24 Manual Brick Making Machine
Related Products
-
QT4-25 Automatic Fly Ash Cement Brick Making Machine in India Price,concrete Brick MachineUS$ 7,999 - 13,999MOQ: 1 Set -
QT4-25 Automatic Hollow Block Making Machine Pavers New Technology Product in China,cement Brick MachineUS$ 7,999 - 13,999MOQ: 1 Set
-
QT4-25 Automatic Cement Brick Making Machine,machine de Fabrication de Parpaing,brick MachineUS$ 7,999 - 13,999MOQ: 1 Set
-
High Profit! QT4-25 Concrete Block Machine for Sale in Algeria,libya,kenya and Tanzania,brick MachineUS$ 7,999 - 13,999MOQ: 1 Set
-
Hollow Block Machine Production of Paving Slabs Qt4-25,brick Making MachineUS$ 7,999 - 13,999MOQ: 1 Set
Specifications
alibaba machine QT4-24 small brick making machine line
1. CE, SGS, BV, ISO
2. Siemens motor, Mitsubish PLC
3. Advanced design

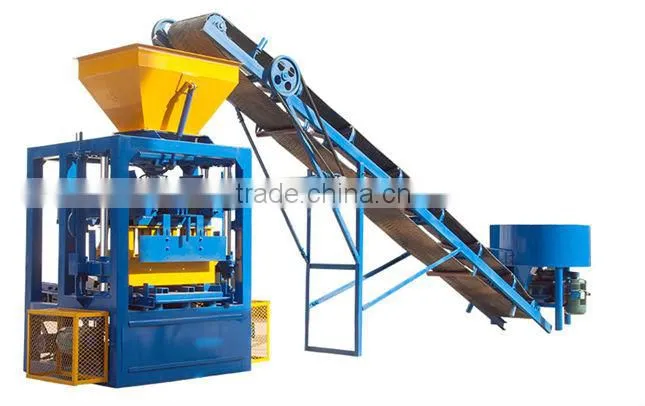

QT-24 manual brick making machine
Introduction
1. QT4-24B brick making machine /block making machine/ brick machine/block machine is based on original block molding machine with technological innovation.
2. Its design is reasonable with excellent performance.
3. It can make hollow bricks and solid bricks by changing another mould, very easy operation.
4. The block making machine is equipped with super vibration motor and the production of blocks are of good quality,large density and high strength.
5. T brick making machine adopts the best steel and welding technology,durable,firm,quake-proof.
6. Materials are widely used ,such as sand, fly ash,kuangfei,slag,cement and sail coal cinder slag etc.
Technical Parameter
Dimension of host machine |
2060×1730×2580mm |
Host machine power |
13.9KW |
Vibration force |
35.5KN |
||
Mould period |
20-30s |
Capacity |
22.5KW |
The size of the pallet |
850×550×30mm |
Mixer model |
JD350 |
Weight of the machine |
3T |
Voltage |
as per local condition |
Theoretical workshop area is 50 m2 3-4workers are needed.The office , curing area and stacking area will be arranged according your conditions.
Theoretical Production Capacity
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
400X100X200 |
7 |
630-840 |
5040-6720 |
400X150X200 |
5 |
450-600 |
3600-4800 |
400X200X200 |
4 |
360-480 |
2880-3840 |
400X250X200 |
3 |
270-360 |
2160-2880 |
240X115X 52 |
24 |
2400-2880 |
19200-23040 |
all kinds of hollow and solid bricks | |||
Complete equipment
Device |
Specification |
Power (KW) |
Unit |
Quantity |
Block machine |
QT4-26 |
13.9 |
Set |
1 |
Mixer |
JD350 |
7.5 |
Set |
1 |
Belt conveyer |
L=6M |
1.1 |
Set |
1 |
Mould |
Set |
2 |
||
Block trolley |
Set |
2 |
||
Spare parts and tools |
Set |
1 |
JD350 Mixer
Maim Technical Specifications | |
Discharging capacity |
0.35 m3 |
Feeding capacity |
0.56 m3 |
Productivity |
≥4m3/h |
Max. aggregates diameter |
80mm |
Mixer power |
7.5 KW |
Diameter |
1200mm |
Wegiht |
0.52Ton |
Raw materials
Certifications
Company informtion
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
FAQ
1. How about the quality of alibaba machine QT4-24 small brick making machine line ?
Our block machines adopt advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality.
2. About the delivery time.
Generally, it will be about 20-30 days after your deposit, which also will be on basis of your order.
3. As for the warranty.
We provide 1 years for warranty and overseas service
4. Which kind of payment is available for us?
T/T and L/C are common for us. In addition, we can accept other payments
