Help CenterQT4-15 Cement Brick Machine Price in Saudi Arabia
Related Products
-
QT4-15 Automatic Concrete Block Machine ,Cement MachineUS$ 18,000 - 40,000MOQ: 1 Set -
Best Selling QT40-2 Small Concrete Block Making Machine Business PlanNegotiableMOQ: 1 Set
-
Concrete Block Making Machine QT4-25 Small Type!!! Semi-automatic Block MachineUS$ 10,999 - 14,699MOQ: 1 Set
-
QT4-25 Small Scale Hollow Brick Moulding Machine( Multi-purpose)US$ 10,999 - 14,699MOQ: 1 Set
-
Good Performance High Quality QT4-25 Hollow Block Making Machine PhilippinesUS$ 10,999 - 14,699MOQ: 1 Set
Specifications
1.Siemens Motor
2. Hydraulic Vibration Table
3.Omron Scheider switches
4.Mitsubishi PLC Automatic control
How does QT4-15 Automatic Concrete brick machine work?
Screw Conveyer (Optional fitment): loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. Then conveyer belt carried materials to the Mixture Machine.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mixer automatically, as per requirement.
Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick, paver brick and kerbstone.
Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving.
Main parameters
Dimension of host machine |
2440×2000×2600mm |
Host machine power |
25KW |
Moulding area |
400×800mm |
Vibration force |
40KN |
Moulding period |
15-25S |
Capacity |
68.25KVA |
The size of the pallet |
1010×550×20/25mm |
Mixer model |
JS500 |
Weight of the host machine |
5T |
General water consumption |
4T/ day |
Voltage |
As per local request |
Theoretical production capacity
Size (LxWxH mm) |
Pcs/mould |
Pcs/hour |
Pcs/day(8 hours) |
390x190x190 |
4 |
960 |
7680 |
240x115x90 |
16 |
3840 |
30720 |
240x115x56 |
30 |
7200 |
57600 |
|
Note:
| |||

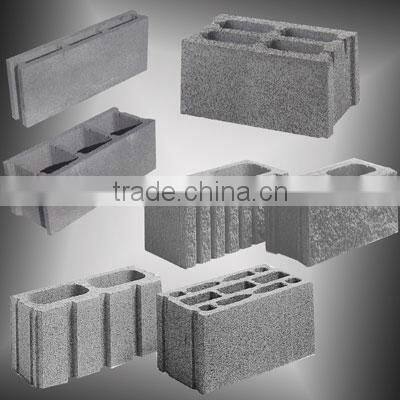

Brick samples
Certificate
Package and delivery
Company information
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend. We will grow up into a tall tree in the near future for you to rely on.
