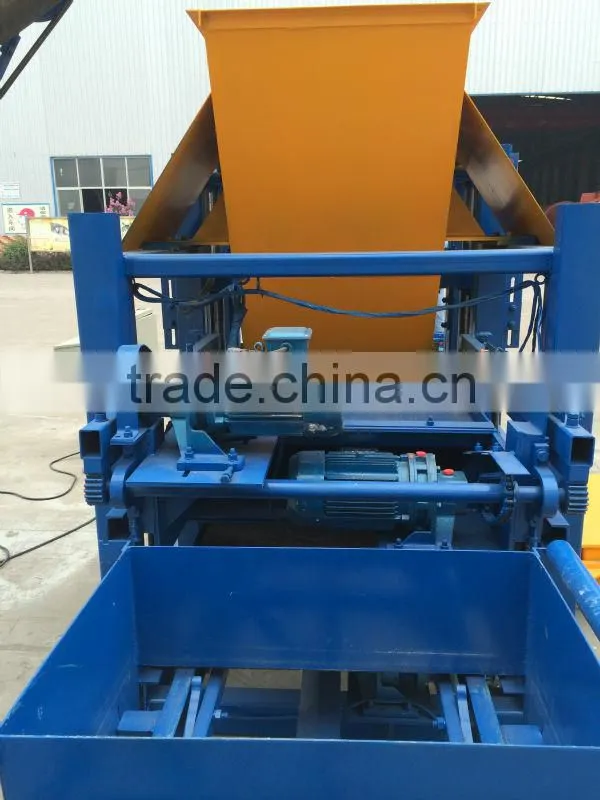

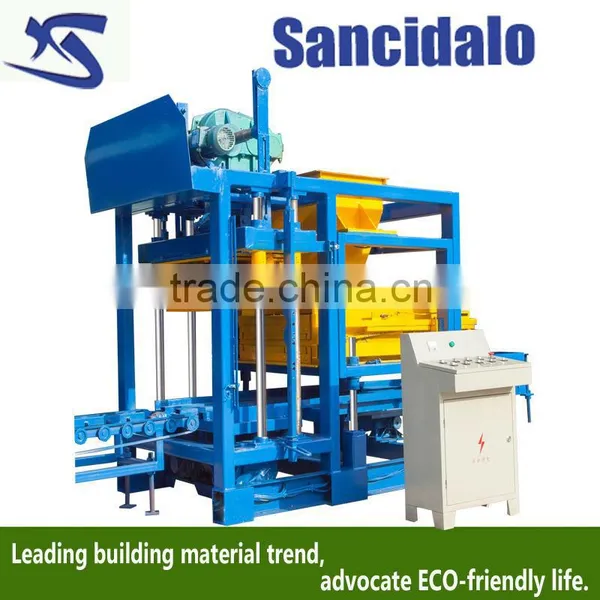

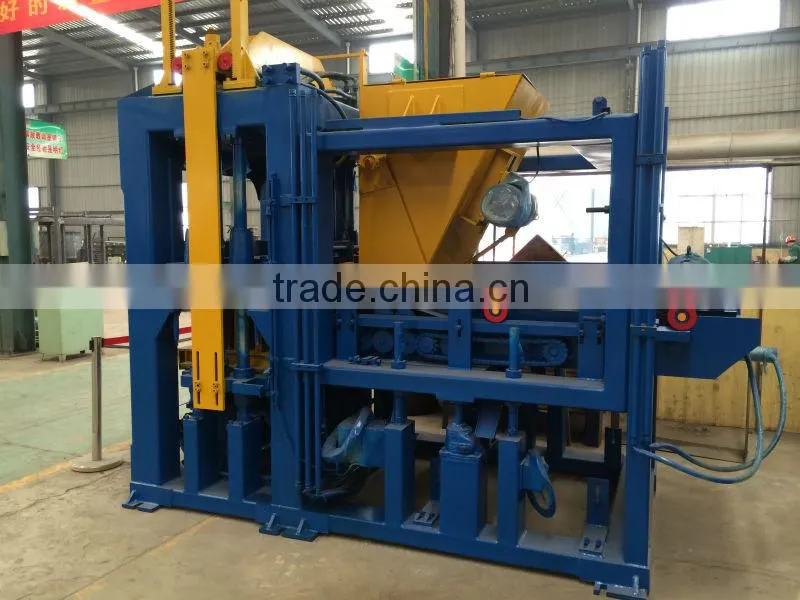

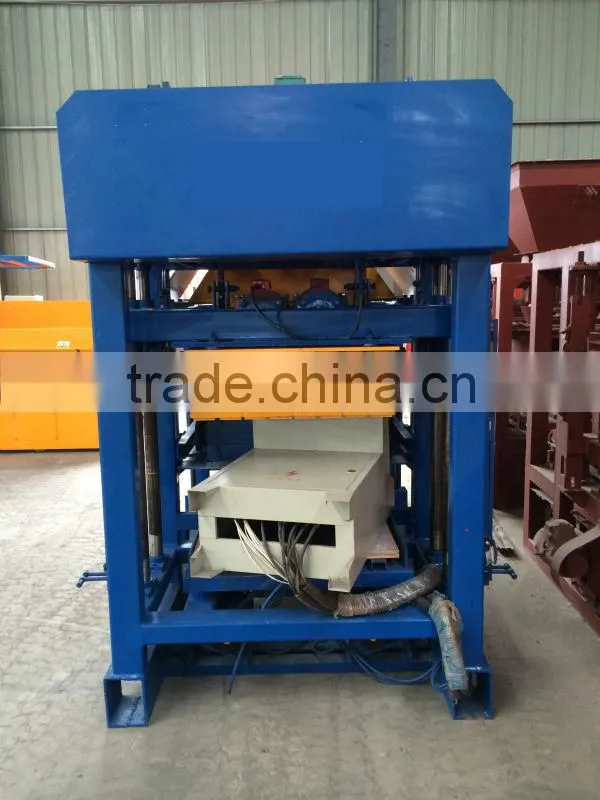

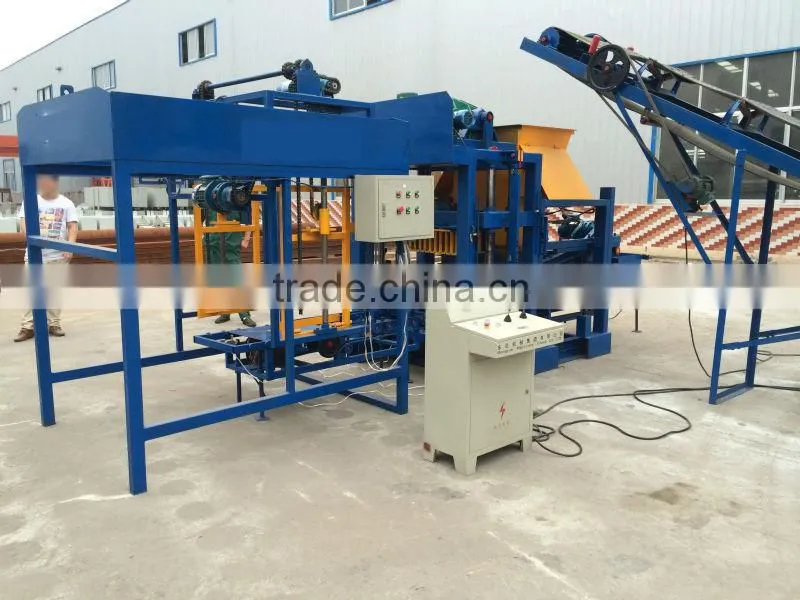

Help CenterConcrete Block Making Machine QT4-25 Small Type!!! Semi-automatic Block Machine
Related Products
-
QT4-25 Small Scale Hollow Brick Moulding Machine( Multi-purpose)US$ 10,999 - 14,699MOQ: 1 Set -
Good Performance High Quality QT4-25 Hollow Block Making Machine PhilippinesUS$ 10,999 - 14,699MOQ: 1 Set
-
QT6-15B Low Price Cement Brick Machine Brick Making MachineUS$ 54,499 - 58,499MOQ: 1 Set
-
QT6-15 Large Scale High Production Concrete Brick Machinery Concrete Block MachineUS$ 54,499 - 58,499MOQ: 1 Set
-
QT6-15 Full Automatic With PLC Control Hydraulic Brick Making Machine Block Making MachineUS$ 54,499 - 58,499MOQ: 1 Set
Specifications
1.ISO9001,good quality2.Various high density bricks
3.Table & mold vibration
ncrete block making machine
1.Technical characteristics of QT4-25 brick machines equipment
Athe steel is national standard No.45 steel.the best in our country
Bthe welding is the best welding technology,anti-wear, aseismatic,anti Moist

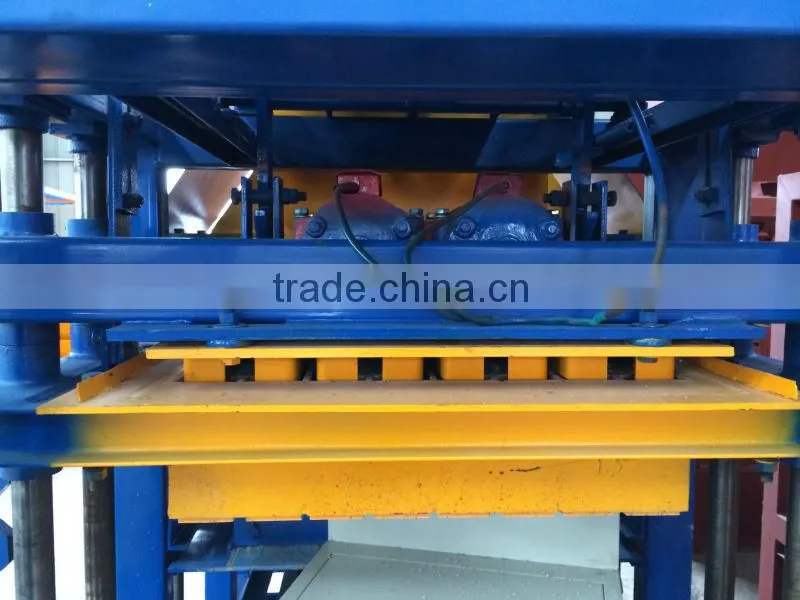

Cthe mould is high temperature carburizing heat treatment through 900 Degrees Celsius
Dguide column:four guide column,use overlong guide design,
the surface is chrome-plated,have good anti-wear and high anti-distortion, Long service life .
EMulti-function:exchange moulds can produce solid bricks,hollow blocks and porous block
can make all kinds of blocks
FUnder The vibration platform has two Super motors to drive the vibration box to vibrate
and the up mould also has one motors to vibrate and so the forming way is vibration,so the
blocks are High strength, the compactness of uniform.
2.Main technical parameter
1 |
Dimension of host machine |
3700x2100x2300 |
5 |
total machine power |
29kw |
2 |
mould period |
20-24s |
6 |
Vibration force |
35.5KN |
3 |
Pallet size |
850x550x25mm |
7 |
Mixer model |
JD500 |
4 |
workshop area |
160m2 |
8 |
Voltage |
380/415/440 |
3.Theoretical production capacity
No |
Size(LxWxH) |
Pcs/Mould |
Pcs/Hour |
Pcs/Shift |
1 |
400x200x200mm |
4 |
576 |
4608 |
2 |
400x100x200mm |
7 |
1008 |
8064 |
3 |
400x150x200mm |
5 |
720 |
5760 |
4 |
400x250x200mm |
3 |
432 |
3456 |
4.JD500 Mixer main parameters for QT4-25 static block making machine
Model Number item |
JD500 |
Feeding capacity |
800 |
Discharging volumn |
500 |
Productivity |
≥20 |
Max.diameter of aggregates |
60/40 |
agitating vane quantity |
28 |
speed |
4 |
Total power |
10.5 |
Lifting Speed of Hopper |
15.6 |
Overall dimension working position |
3620*2215*3985 |
Transporting State | |
Total weight |
1480 |
The height of blowdown |
658 |
5.Block samples:
6.Raw materials:
7.What guaranty can we supply?
-FOR PRODUCT
We will supply one year guarantee about our brick making machine
Within one year ,if the client meet the unsolvable questions ,we could come to client place for help.
-FOR BUSINESS
Based on more than 7 years exporting experience, Sancidalo is always fast & effectively. We help our customers on matters other than orders Clearing Customs, CO/CCPIT to save taxes, shipping arrangement and some other unpredictable knotty problems.
8.Company Information:
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
So if you are interested in our products,please contact me asap.I will try my efforts to help you.
