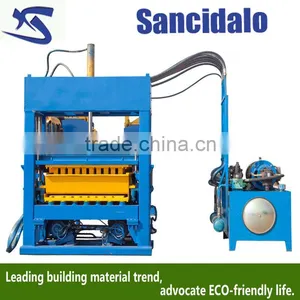

China supply QT5-15 automatic brick machine, hydraulic brick making machine, cement brick making machine from factory directly
1. Our advantages:
1). Direct manufacturer with more than 20 years experience since year of 1994
2) Quality assured with assigned “Chinese famous brand” and cooperation with German company
3) Competitive price with prompt delivery
4) CE, ISO9001 certified
2. Main features of our cement brick making machine:
1). Designed and manufactured with Germany technology.
2). Multi-functional: it can make various bricks by different moulds
3). Equipped with Siemens motors and Mitsubish PLC
4) Mould with carbonization treatment by 1200 centigrade and 800 centigrade two process, making it solid and durable.
5). Q235B brand best steel from Jigang Group Co.,Ltd, which is featured by high efficiency and high strength.
3. Specifications of QT5-15 brick making machine
Dimension of host machine |
3000x1900x2660mm |
Control style |
PLC |
Forming style |
Hydraulic |
Vibration force |
45-55KN |
Vibrator style |
Table and mould together |
Raw material feeding style |
360 degree revolve |
Forming height |
60-225mm |
Moulding period |
15-20S |
Moulding area |
1060x630mm |
Size of pallet |
1130x600x30mm |
Weight of host machine |
4.5T |
Mixer |
JS500 |
General water consumption |
5-6T/day |
Voltage |
220/240/380/440v |
Simple block production line area needs | |||
Workshop |
200M2 |
Office |
100M2 |
Total area |
2000M2 |
|
|
Labors arrangement | |||
Operate |
1 |
Material loader |
1 |
Drive forklift |
1 |
Feeding pallets |
1 |
Maintain |
1 |
Total |
5 |
Production capacity of block making machine | |||
Item |
Size(LxWxH) |
Pcs/Mould |
Pcs/hour |
Hollow block |
390x190x190mm |
5 |
900-1050 |
Porous block |
230x110x70mm |
26 | 4680-5460 |
Solid block |
240x115x53 |
30 |
5400-6300 |
4. Blocks samples:

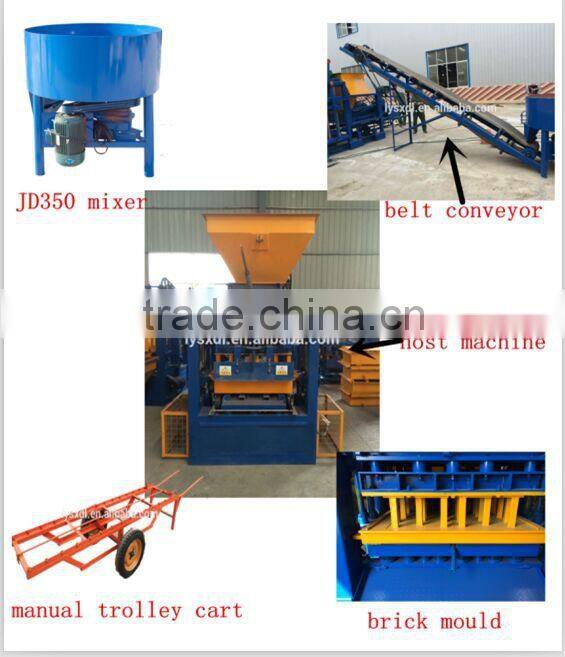

5. How does it work?
Screw Conveyer (Optional fitment): loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or
cement hopper (optional fitting) to the Batching Plant.
Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from
loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the
loading bin.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt.
Then conveyer belt carried materials to the Mixture Machine.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The
inbuilt water pump adds water to the mixer automatically, as per requirement.
Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick,
paver brick and kerbstone.
Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving
6. Certifications:
7. Package and delivery for our concrete block / brick making machine
8. Why choose us?
(1) Full automatic and hydraulic automatic block / brick making machine , can produce all kinds of bricks, and just change the moulds,
such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch

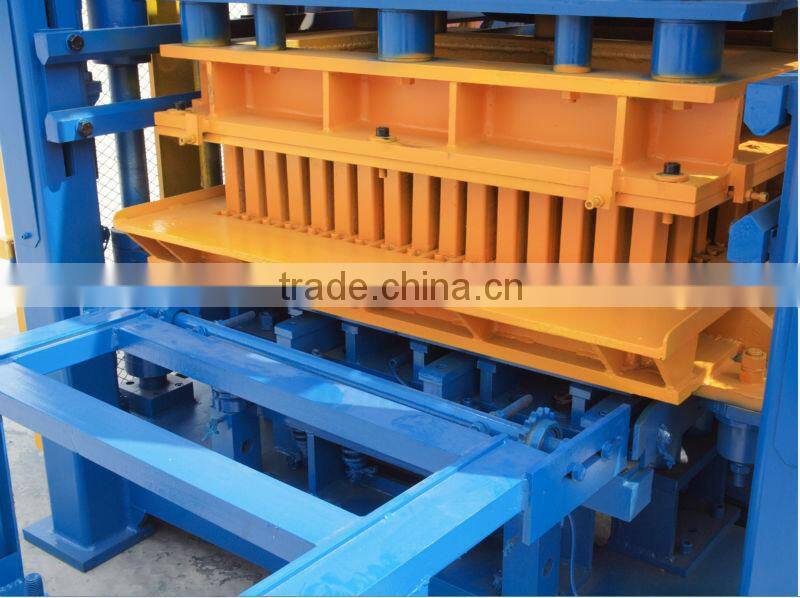

(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure made of Q235B

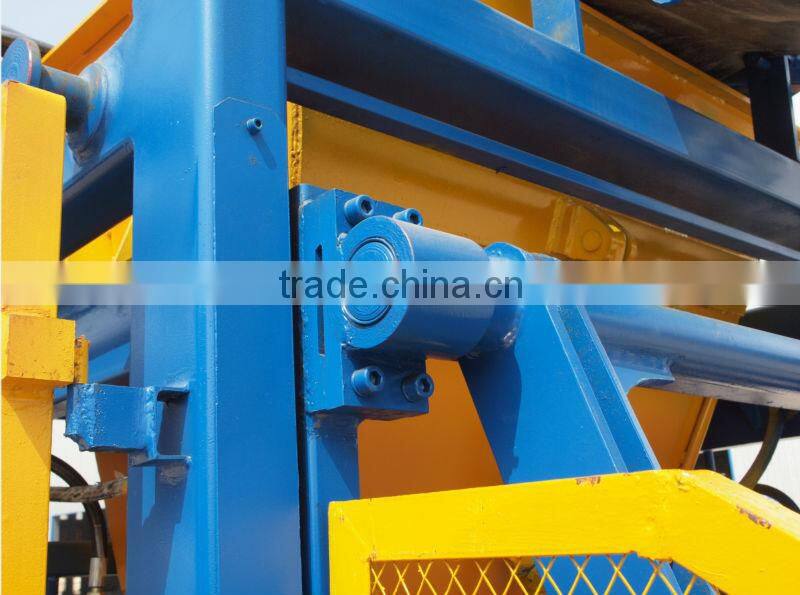

(9) Three same size oil cylinders, which work at the same time to insure the same density and high quality of the blocks.
(10) 360° revolving method ensures the material to be more uniform.
(11) Cooling pump used so as to insure work of the hydraulic system.
(12) waste recycling tank used to reduce the waste of materials.

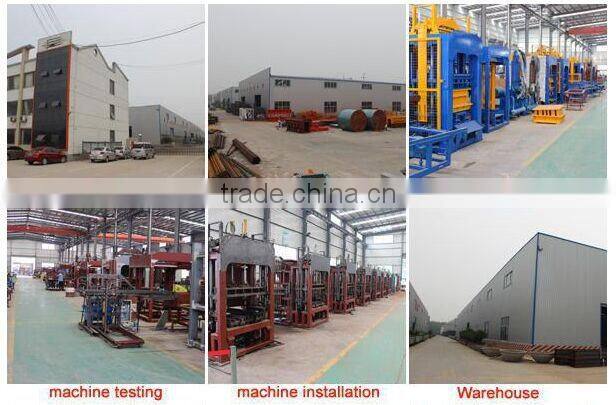

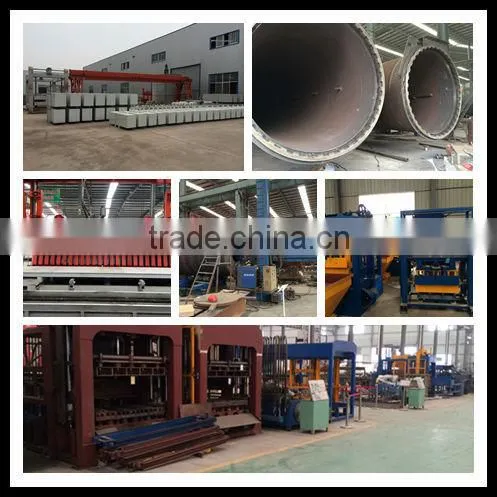

9. Company profile:
For our company prifile, please click to following links on Youtube:
10.Don't forget me:
Miss Ruby
Mobile / Whatsapp / Viber / Wechat: +86 15806928077
Skype: live:ruby_2161
TradeManger:cn1515326728xsze
QQ: 2544078326
