Help CenterNew Production- Sancidalo QT10-15 Automatic Block Machine to Manufacture Blocks
Related Products
-
Sancidalo QT10-15 to Make Standard Size of BlocksUS$ 900 - 90,000MOQ: 1 Set -
Sancidalo QT10-15 Automatic Paving Brick MachineUS$ 900 - 90,000MOQ: 1 Set
-
QT10-15 Fully Hydraulic Concrete Brick Machine Famous Through the WorldUS$ 900 - 90,000MOQ: 1 Set
-
QT10-15 Ceramic Brick Making Machine / Full Automatic Block Production LineUS$ 900 - 90,000MOQ: 1 Set
-
Block Machinery to Make Standard Size of BlocksUS$ 900 - 90,000MOQ: 1 Set
Specifications
2.full-automatic block machine
3.CE/SGS/ISO9001
4.Siemens motor
QT10-15 larger image brick making machine interlocking brick machine price
It can produce all kinds of hollow blocks and solid bricks and color paving bricks,only by changing different moulds.
1.It is equipped with touch screen and Japan Mitsubishi PLC control system, making the whole process of mixing, material loading, pressing run fluently and intelligently. It can produce 10 hollow bricks per mould and 54 standard bricks per mould.
2.High level steel, special welding technology and Siemens or Schneider motor make a perfect and stable machine performance
3. The warranty period of 12 months. We can send technicians to help you with the problems if needed.
4.There are two types of stacker for client’s choice
5.It can not only produce concrete block but also fly ash, waste of coal and mine, etc. Different mould can also produce hollow or solid bricks for different use.
6.It has passed CE, ISO certificate and won Chinese famous brand.
7.As an efficient, economical, and practical brick molding machine, it is rational in structure, and can speed up the molding process through vibration.
Dtailed Images:
Main Advantages:
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure
Screw Conveyer (Optional fitment): loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. Then conveyer belt carried materials to the Mixture Machine.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mixer automatically, as per requirement.
Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick, paver brick and kerbstone.
Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving.
Technical Parameter
Dimension of host machine |
3500*2300*2930mm |
Host machine power |
45.35KW |
Moulding area |
1196*880mm |
Vibration force |
100KN |
Moulding period |
15-20S |
Capacity |
93.55KVA |
The size of the pallet |
1300*900*30mm |
Mixer model |
JS750 |
Weight of the host machine |
9.8T |
General water Consumption |
10-20T/every day |
Voltage |
380V |
Theoretical Production Capacity
Size(L*W*H) (mm) |
Pcs/mould |
Pcs/Hr |
Pcs/8h |
400x100x200 |
20 |
3600-4200 | 28800-33600 |
400x150x200 |
14 |
2520-2940 |
20160-23520 |
400x200x200 |
10 | 1800-2100 |
14400-16800 |
400x250x200 |
8 |
1440-1680 |
11520-13440 |
230x110x70 |
42 |
7500-8800 |
60000-70400 |
Paver:200x100x60 |
34 |
6300 |
50400 |
Paver:200x163x60 |
20 |
3600 |
28800 |

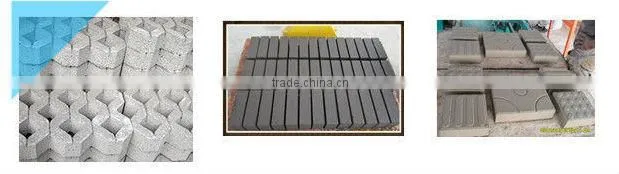

Block samples
Raw materials
company informtion
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
