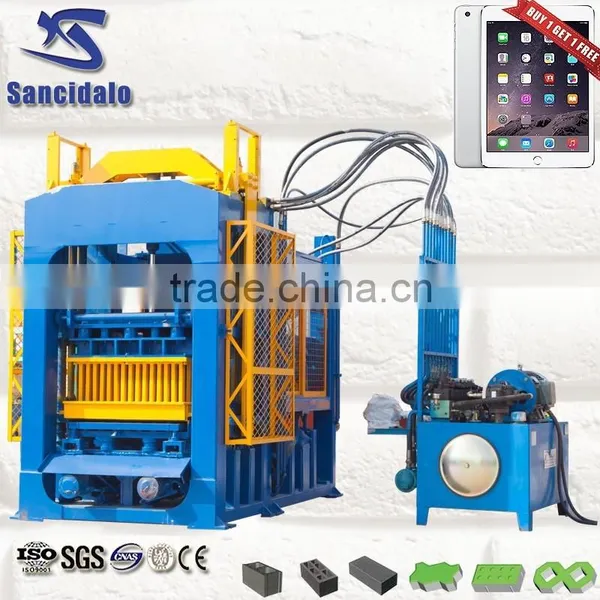

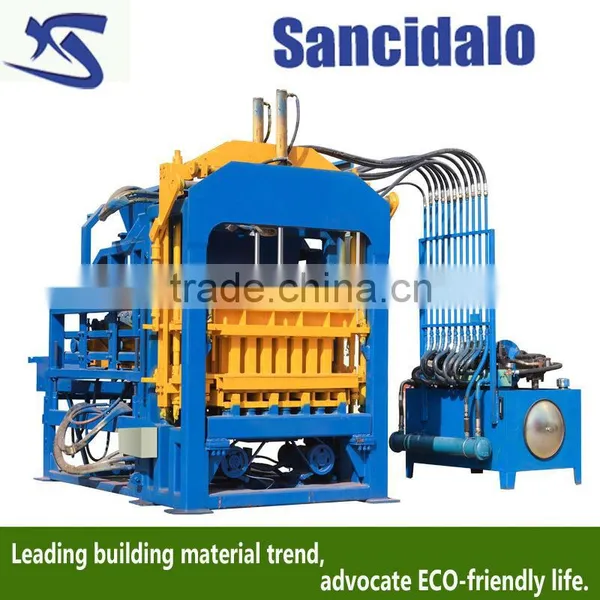

Fully Automatic Multi-function Concrete Block Machine, Brick Production Process

 hot sales QT4-15 fully automatic multi-function concrete block machine, brick   production process

 Introduction of  hot sales QT4-15 fully automatic multi-function concrete block machine, brick production process

1.Raw materials are discharged to the mixer from three Hopper batching machine, as

there is a hole under ground. The mixed raw materials are sent to the mixer.

2.After being mixed evenly with water, raw material are unloaded to the block making

machine through belt conveyor.

3.Mixed raw material are then sent to the mold case. Under PLC computer intelligent

control. Hydraulic transmission, vibration, shaping takes place.

4.After de-molding ,green brick will be unloaded to the bamboo pallet.

5.Wet product will be conveyed through green block conveyor then to the stacker.

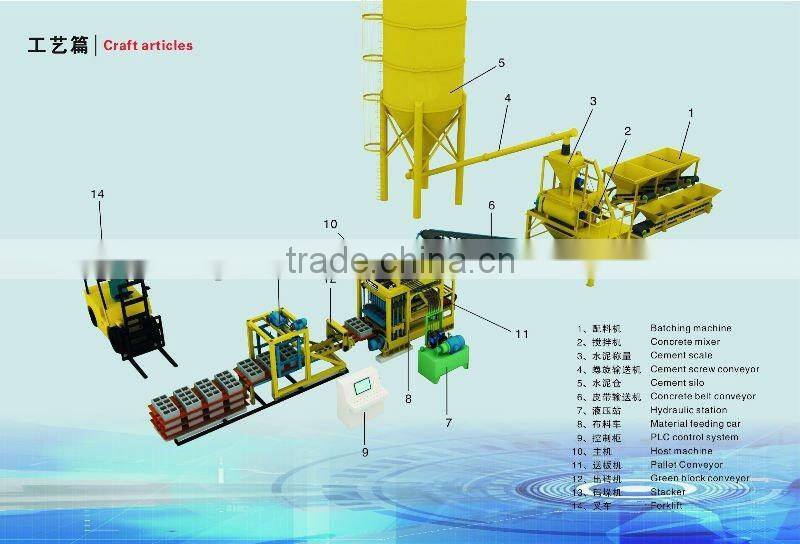

Production Illustration

How does concrete block making machine price in india for sale,concrete block machine german technology QT4-15 work?

Screw Conveyer (Optional fitment):  loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.

Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.

Conveyer Belt:  When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. Then conveyer belt carried materials to the Mixture Machine.

Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mixer automatically, as per requirement.

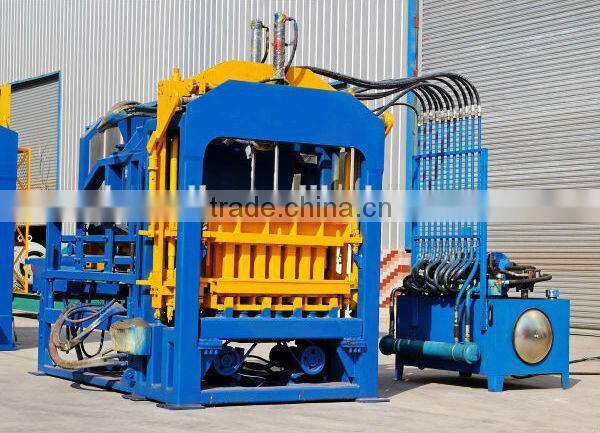

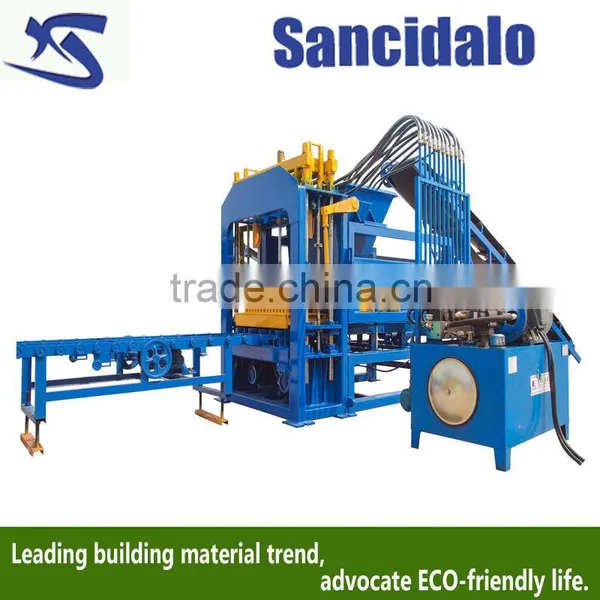

Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick, paver brick and kerbstone.

Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving.

Main parameters

Theoretical production capacity

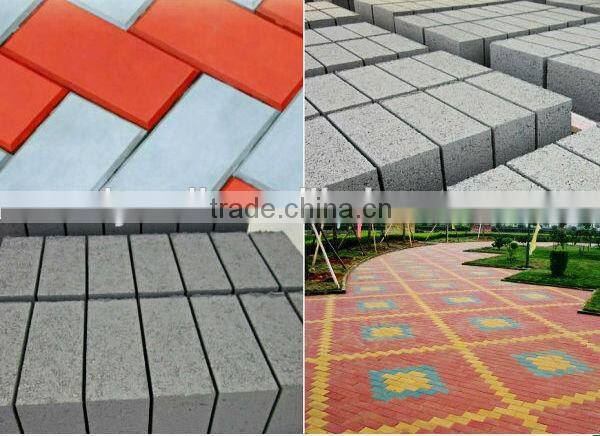

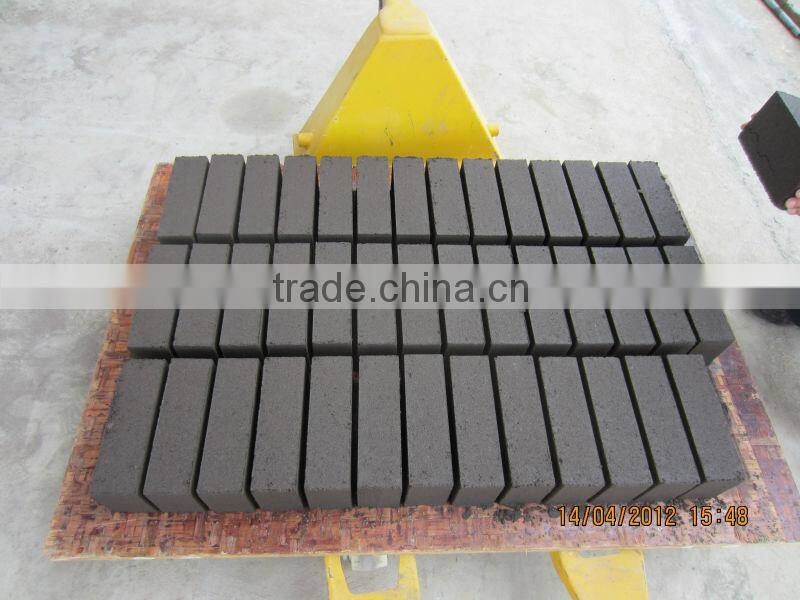

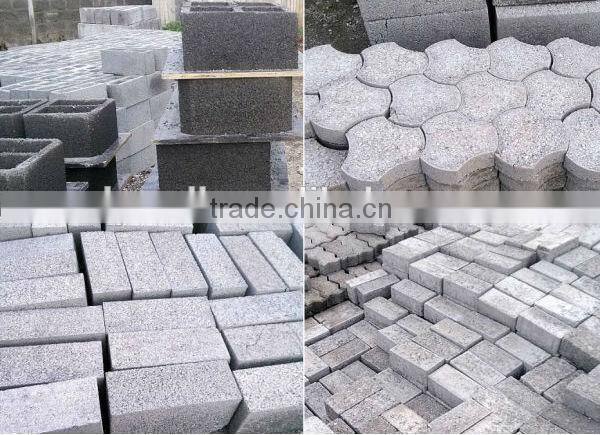

Brick samples

Certificate

Package and delivery

Company information

With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.  We will grow up into a tall tree in the near future for you to rely on.
