Our main products are related to construction, and cover various block machines, such as QT101-5,QT8-15 fully automatic block machine, QT4-24, QT4-26 semi-automatic machine, paving block machine DY-150T and QT40-3A, QT40-3B and QT40-3C egg laying machines.
Welcome to our company
Hot sale! QT10-15 building material sizes for interlocking block
What’s the main features of QT10-15 building material sizes for interlocking block
(1) brick making machine. Our Brick making machine plant can produce all kinds of bricks by changing moulds, suchas the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors, Japan Mitsubishi PLC system, Omron travel switch are adopted.
(3) We adopt the heat-treatment and carburization technique to increase the lifespan of the moulds.
(4) Certificates: SGS/CE/ISO9001.
(5) Strong Steel Structure made of Q235B.
Please click the following pictures
How does it work?
Screw Conveyer (Optional fitment): loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. Then conveyer belt carried materials to the Mixture Machine.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mixer automatically, as per requirement.
Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick, paver brick and kerbstone.
Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving.
What’ the main parameters of QT10-15 Brick making machine plant China manufacturer
Dimension of host machine | 3500x2300x2930mm | Control style | PLC |
Forming style | Hydraulic | Vibration force | 100KN |
Vibrator style | Table and mould together | Raw material feeding style | 360 degree revolve |
Forming height | 40-250mm | Moulding period | 15-20S |
Moulding area | 11196x880mm | Size of pallet | 1300x900x30mm |
Weight of host machine | 14T | Mixer | JS750 |
General water consumption | 12T/day | Voltage | 220/240/380/440v |
Simple block production line area needs | |||
Workshop | 200M2 | Office | 100M2 |
Total area | 2000M2 |
|
|
Labors arrangement | |||
Operate | 1 | Material loader | 1 |
Drive forklift | 1 | Feeding pallets | 1 |
Maintain | 1 | Total | 5 |
Production capacity | |||
Item | Size(LxWxH) | Pcs/Mould | Pcs/hour |
Hollow block | 390x190x190mm | 10 | 1800-2400 |
Porous block | 240x115x90mm | 28 | 5040-6720 |
Solid block | 240x115x53 | 54 | 9720-12960 |

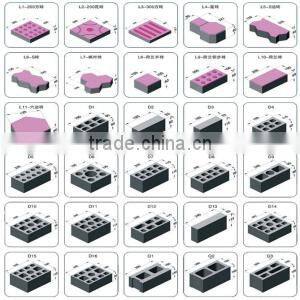

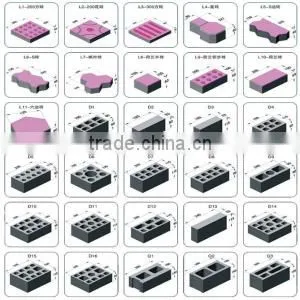

Block samples
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
We are professional brick machine supplier for many years. Our products have been sold to many countries like Africa, Russia, Nigeria, and Burma and so on.
1. How about the quality of machines?
Our block machines adopt advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality.
2. About the delivery time.
Generally, it will be about 20-30 days after your deposit, which also will be on basis of your order.
3. As for the warranty.
We provide 1 years for warranty and overseas service.
4. Which kind of payment is available for us?
T/T and L/C are common for us. In addition, we can accept other payments.
