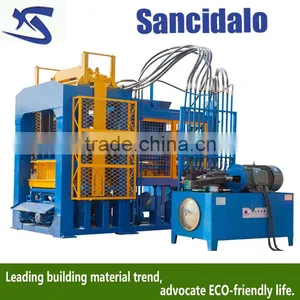

QT8-15B automated concrete block machine fully automatic concrete block making machine

Specifications

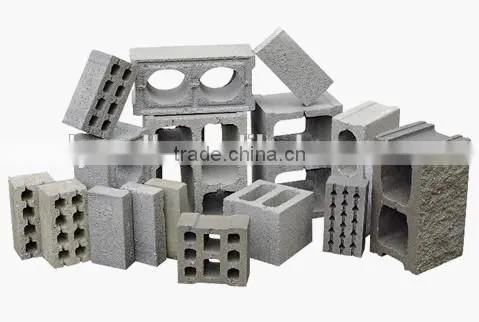

1.hollow/solid/paving/kerbstone block
2.German technology, Siemens motor
3.CE/SGS/ISO9001
4.PLC automatic control system

QT8-15B automated concrete block machine  fully automatic concrete block making  machine

What’s the main features of QT8-15 fully automatic concrete block machine

1>It is equipped with touch screen and Japan Mitsubishi PLC control system, make the whole process of mixing, material loading, pressing run fluently and intelligently. It can produce 10 hollow bricks per mould and 54 standard brick per mould.

2>High level steel, special welding technology and Siemens or Schneider motor made a perfect and stable machine performance.

3> The way of four rods guiding and long guiding sleeve guarantees precise mould movement.

4>Using high pressure hydraulic oil cylinder,strong vibration, brick strength can reach 20 MPA, good impactness, accurate outlook size, very suitable for client who prefers porous brick and standard bricks.

5>It can not only produce concrete block but also fly ash, waste of coal and mine, etc. different mould can also produce hollow or solid bricks for different use.

How does it work?

Screw Conveyer (Optional fitment):  loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.

Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.

Conveyer Belt:  When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. Then conveyer belt carried materials to the Mixture Machine.

Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mixer automatically, as per requirement.

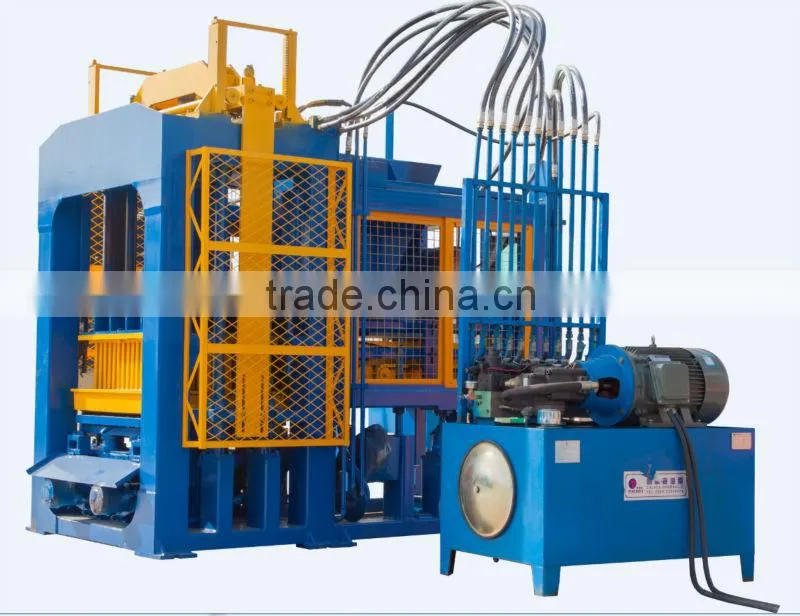

Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick, paver brick and kerbstone.

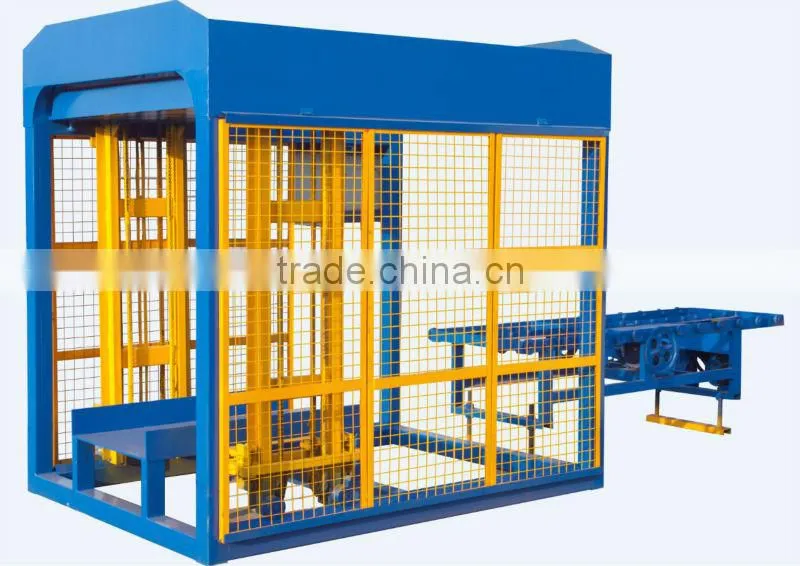

Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving.

What’ the main Parameters?

Theoretical output of hot sale QT8-15

What advantages do we have?

1> Fully automatic and hydraulic block making machine. Our products can produce all kinds of bricks by changing moulds, such as the solid bricks, hollow blocks, paver blocks and so on.

2> German Siemens motors, Japan Mitsubishi PLC system, Omron travel switch are adopted.

3> We adopt the heat-treatment and carburization technique to increase the lifespan of the moulds.

4>Certificates: SGS/CE/ISO9001.

5> Strong Steel Structure made of Q235B.

6> There are three same size oil cylinders, which work at the same time to insure the same density and high quality of the blocks.

7>360° revolving method  ensures the material to be more uniform.

8> Cooling pump is installed to cool the oil so as to insure work of the hydraulic system.

9>waste recycling tank is used to reduce the waste of materials.
