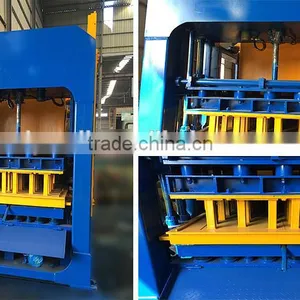

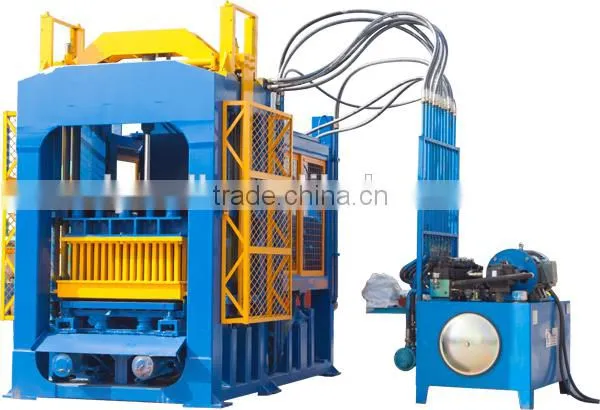

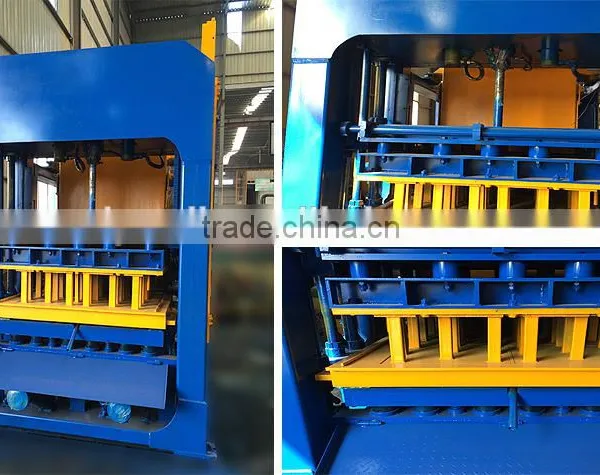

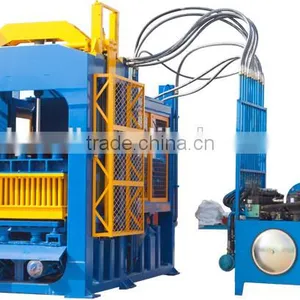

QT6-15 hollow block making machine, concrete block machine
1. Our advantages:
1). Direct manufacturer with more than 20 years experience since year of 1994
2) Quality assured with assigned “Chinese famous brand” and cooperation with German company
3) Competitive price with prompt delivery
4) CE, ISO9001 certified
2. Main features
1). Designed and manufactured with Germany technology.

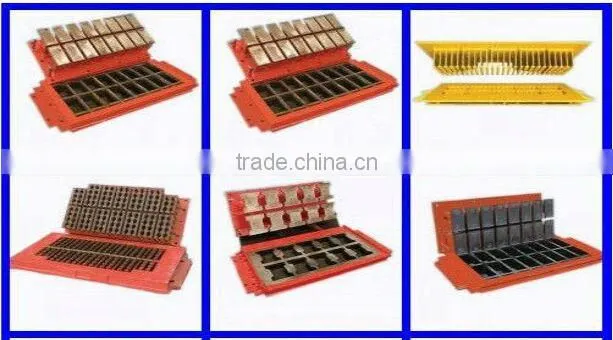

2). Multi-use: it can make various bricks by different moulds
3). Equipped with Siemens motors and Mitsubish PLC
4) Mould with carbonization treatment by 1200 centigrade and 800 centigrade two process,
making it solid and durable.
5). Q235B brand best steel from Jigang Group Co.,Ltd, which is featured by high efficiency and high strength.
3. Specifications of QT6-15 block making machine
Dimension of host machine |
3500x1700x2930mm |
Control style |
PLC |
Forming style |
Hydraulic |
Vibration force |
50-60KN |
Vibrator style |
Table and mould together |
Raw material feeding style |
360 degree revolve |
Forming height |
60-225mm |
Moulding period |
15-20S |
Moulding area |
861x880mm |
Size of pallet |
940x830x30mm |
Weight of host machine |
8T |
Mixer |
JS500 |
General water consumption |
5-8T/day |
Voltage |
220/240/380/440v |
Simple block production line area needs | |||
Workshop |
200M2 |
Office |
100M2 |
Total area |
2000M2 |
|
|
Labors arrangement | |||
Operate |
1 |
Material loader |
1 |
Drive forklift |
1 |
Feeding pallets |
1 |
Maintain |
1 |
Total |
5 |
Production capacity of block making machine | |||
Item |
Size(LxWxH) |
Pcs/Mould |
Pcs/hour |
Hollow block |
390x190x190mm |
6 |
1080-1260 |
Porous block |
230x110x70mm |
30 |
5400-6300 |
Solid block |
240x115x53 |
36 |
6480-8640 |

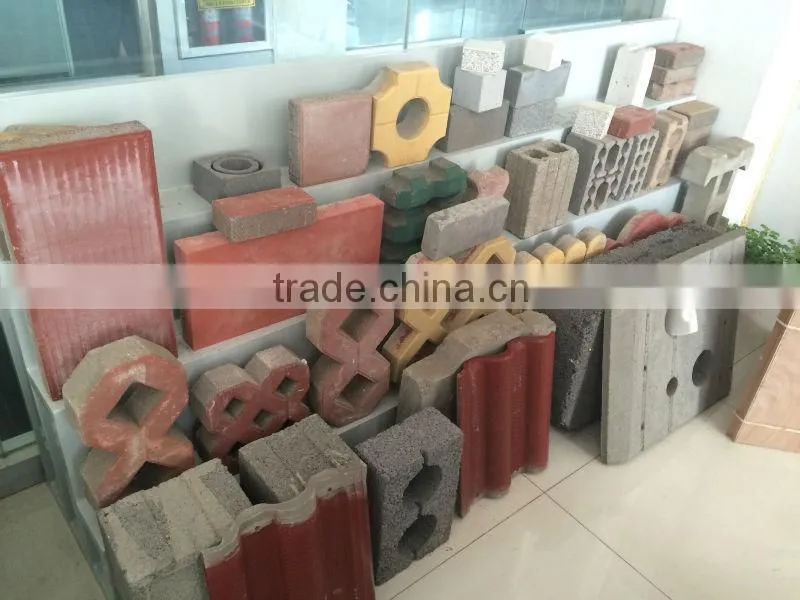

4 Blocks samples:

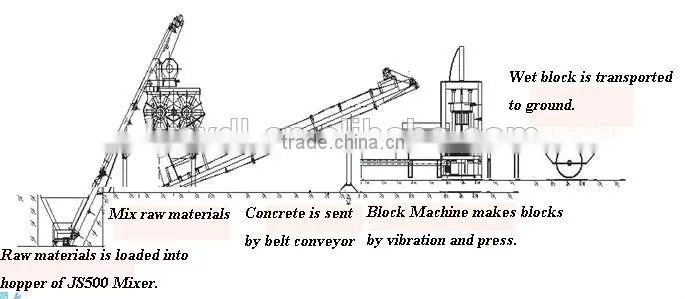

5. How does it work?
Screw Conveyer (Optional fitment): loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or
cement hopper (optional fitting) to the Batching Plant.
Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from
loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the
loading bin.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt.
Then conveyer belt carried materials to the Mixture Machine.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The
inbuilt water pump adds water to the mixer automatically, as per requirement.
Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick,
paver brick and kerbstone.
Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving.
6.This block machine need installing,we will send engineers to your workshop
to install and train workers.
7. Package and delivery for our concrete block / brick making machine
| Company Profile |
|
Our company was established in 1994,mainly focusing on domestic construction material making machine area.Our products get the biggest market share in China.We cooperated with Germany company to improve the product design and technology inovation ability.Our products,as many client comments,are the perfect combination of high quality and low price. Our factory is equipped with varities of advanced mechanical proccessing,forging,welding,heat treatment machines.The morden numerical control machines,high accuracy detection system,strict quality control system,are widely adopted. |
|
|
| Client visiting |
|
|
If you are intersted,please feel free to contact us:
