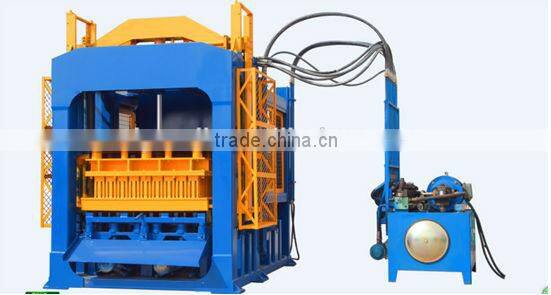

QT4-15C interlocking paving stone concrete block making machine

Specifications

cement brick & block machines
*Taiwan Calyca hydraulic
* German PLC & touch screen
* Full automatic
* Many kinds bricks

Introduction of QT4-15C concrete block machine

1>Using Germany Siemens Motor, which is the best motor brand in the world. Its lifespan

 is 1.3 times than that of common motor.

 2> Japan Mitsubishi PLC control system and Omron travel switch, achieving dialogue and

 exchange between man and machine. Dozens of mechanical action of different products

 could be adjusted through the menu to select the addition and subtraction without needing professionals.

 3>As a multipurpose machine, exchangable mold can produce normal bricks, hollow bricks,multi-holes' bricks

 4>Scatter material through revolving 360 degree , this process likes to mix the material

 again after the mixer, the technology makes the blocks evenly and high density

 5>Mould got heat treatment and carburization, making the antiwear ability 1.2 times as the other mould

 6>When pressing, the excess oil will be turned to Li Zhen-hit, and computer controlled

 directional vibration, frequency and brake to cancel the vibration energy

 7>Feeding in low-frequency, vibrating in high-frequency, and increasing in Head tanks.

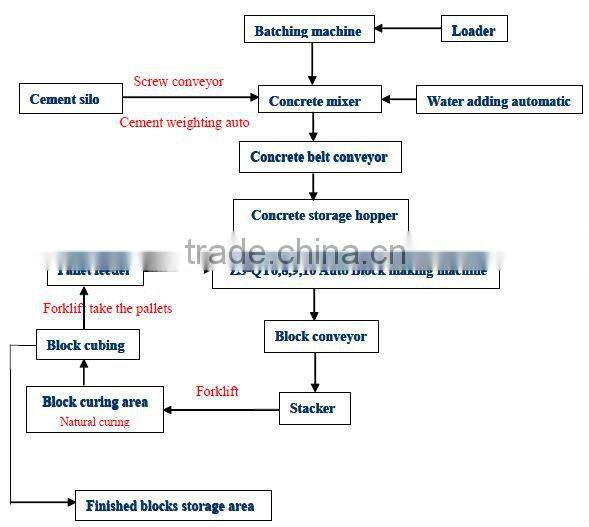

How does it work?



Main parameters



Dimension of host machine	4000×1800×2800mm	Host machine power	33.75KW
Moulding area	1025×810mm	Vibration force	100KN
Moulding period	15-25S	Mixer model	JS750
The size of the pallet	1010×550×20/25mm	General water Consumption	12T/every day
Weight of the host machine	14T
Voltage	Adapt to your local voltage





Theoretical production capacity



Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
390×190×190	4	960	7680
240X150X90	16	3840	30720
400X115X53	30	7200	57600

  Block samples

Company information

With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.  We will grow up into a tall tree in the near future for you to rely on.

What guaranty can we supply?



 -FOR PRODUCT



 Company guaranty is 12monthes.



 -FOR BUSINESS



 Based on more than 7 years exporting experience, Sancidalo is always fast & effectively. We help our customers on matters other than orders



 Clearing Customs, CO/CCPIT to save taxes, shipping arrangement and some other unpredictable knotty problems.

If you are interested in our brick machines,please contact me asap,I willl take my great efforts to help you.
