hot sale QT4-15B Small Concrete Bick Making Machine for Sale
- 100 Set / Sets per Month
- Qingdao Lianyungang
- T/T PayPal
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 7000-9000pcs/8hrs | Place of Origin: | Shandong, China | Brand Name: | Sancidalo |
Model Number: | QT4-15B | Voltage: | as per requests | Power: | 21.8KW |
Dimension(L*W*H): | 4000*1800*2800mm | Certification: | ISO9001,CE,ISO | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1 Fully Automatic2 Remote communication system
3 Long service life
4 ISO SGS CE
5 Neat cutting

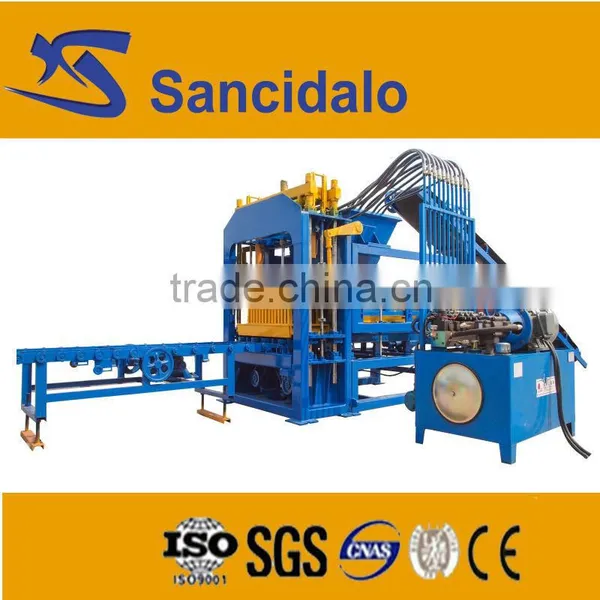

QT4-15B automatic concrete hydraulic brick machine:
1> The QT4-15B block machine is equipped with the touch-screen computer. The Japanese Mitsubishi PLC control system allows the full automation and intellectualization of the production process, including blending, material feeding, and compression molding. Each plate can make four air bricks, or 28 to 30 pieces of standard bricks.
2> It is made of super strong structural steel via the special welding technique and welding materials. This machine applies the imported motors, sealing elements, and hydraulic components. Therefore, it is durable and shock proof. That is to say, our machine features stable and reliable performance.
3> In addition to the overlong sliding sleeve, four guide pillars are also used to make the pressure head and mould move accurately. The uplink synchronous device is utilized.
4> Our machine applies the large-scale hydraulic machinery used oil jack to press from up and down. Hence, it can make the heavy bricks with the maximum intensity up to 20Mpa. Those finished products enjoy the advantages of good compactness, accurate size.
5> It has two types of stacker cranes for you to choose. The brick molding machine is multi-fuctional, since it can make the blocks of any materials. It can make numerous different blocks when equipped with different molds.
Technical Parameter:
Dimension of host machine | 4000×1800×2800mm | Power | 21.8KW |
Moulding area | 400×800mm | Vibration force | 40KN |
Moulding period | 15-25S | Mixer model | JD500 |
The size of the pallet | 1010×550×30mm | General water Consumption | 4T/every day |
Weight of the host machine | 5-6T | Voltage | 380V |
Theoretical Production Capacity:
Size (L*W*H) (mm) | Pcs/mould | Pcs/h | Pcs/8h |
400x100x200 | 8 | 1440-1680 | 11520-13440 |
400x150x200 | 6 | 1080-1260 | 8640-10080 |
400x200x200 | 4 | 720-840 | 5760-6720 |
400x250x200 | 3 | 540-630 | 4320-5040 |
230x110x70 | 24 | 4320-5040 | 34560-40320 |
Paver:200x100x60 | 16 | 2880 | 23040 |
Paver:200x163x60 | 8 | 1440 | 11520 |
Hydraulic block machine mould:

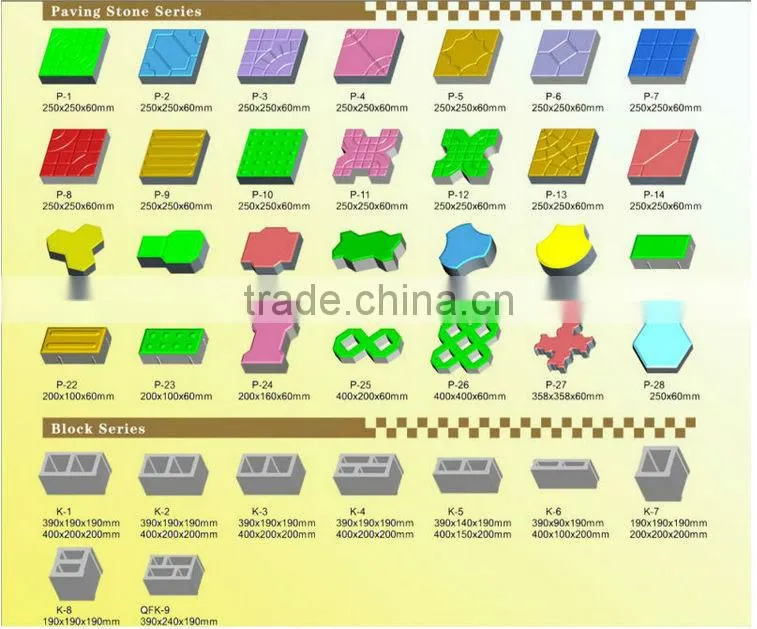

block samples:
JS500 Mixer for concrete kerb machine:
Model Number item | JS500 |
Feeding capacity | 800 |
Discharging volumn | 500 |
Productivity | ≥20 |
Max.diameter of aggregates | 60/40 |
agitating vane quantity | 28 |
speed | 4 |
Total power | 10.5 |
Lifting Speed of Hopper | 15.6 |
Overall dimension working position | 3620*2215*3985 |
Transporting State | |
Total weight | 1480 |
The height of blowdown | 658 |
Raw materials:
Packaging:
Company informtion:
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
Contact Us
- Linyi Sancidalo Import & Export Co., Ltd.
- Contact nameGreen Su
- Phone86-539-8333626
- AddressNo. 26, Qiyang road, Lanshan district Linyi,Shandong
