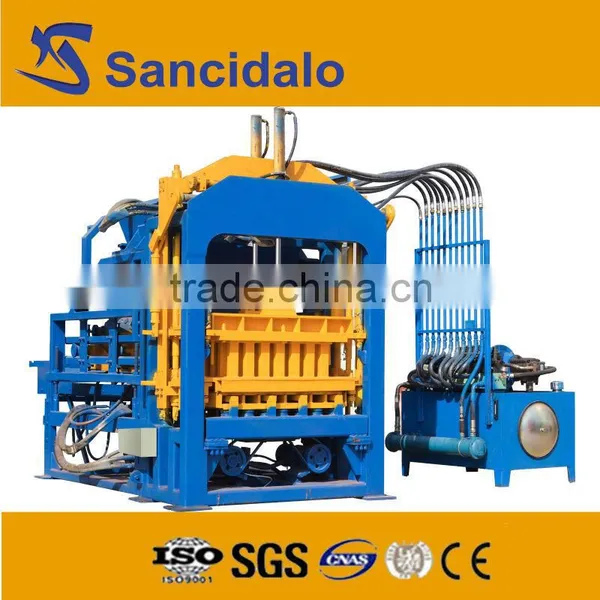

Fully Automatic Building Block/brick Making Machine QT4-15A
- 100 Set / Sets per Month
- Qingdao Lianyungang
- T/T Credit Card PayPal
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 8000pcs/8hrs(390*190*190mm) | Place of Origin: | Shandong, China | Brand Name: | Sancidalo |
Model Number: | QT4-15A | Voltage: | as per requests | Power: | 24KW |
Dimension(L*W*H): | 4000*1800*2800mm | Certification: | ISO9001,CE,ISO | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.PLC with data-transmitting device2:Hydraulic automatic
3.Multi-function
4. ISO 9001
Hollow block machine QT4-15A interlocking block machine
Product Description:
1> Using Germany Siemens Motor, which is the best motor brand in the world. Its lifespan is 3 times than that of common motor.
2>Japan Mitsubishi PLC control system and Omron travel switch, achieving dialogue and
exchange between man and machine. Dozens of mechanical action of different products
could be adjusted through the menu to select the addition and subtraction without needing professionals.
3>As a multipurpose machine, exchangable mold can produce normal bricks, hollow bricks,multi-holes' bricks
4> Scatter material through revolving 360 degree , this process likes to mix the material
again after the mixer, the technology makes the blocks evenly and high density
5>Mould got heat treatment and carburization, making the antiwear ability 1.2 times as the other mould
6>When pressing, the excess oil will be turned to Li Zhen-hit, and computer controlled
directional vibration, frequency and brake to cancel the vibration energy
7>Feeding in low-frequency, vibrating in high-frequency, and increasing in Head tanks.
Technical Parameter:
Dimension | 2440×2000×2600mm | Host machine power | 25KW |
Moulding area | 400×800mm | Vibration force | 40KN |
Moulding period | 15-25S | Capacity | 68.25KVA |
Pallet size | 1010×550×20/25mm | Mixer model | JS500 |
Weight | 5T | General water Consumption | 4T/every day |
Voltage | 380V |
|
|
1 Theoretical workshop area : 150 m2 , need about 3-4 workers.
2 The office,curing area and stacking area to arrange according your practical situation.
Theoretical Production Capacity:
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr | m3/year |
400X100X200 | 8 | 1200 | 9600-11520 | 23040-27648 |
400X150X200 | 6 | 900 | 7200-8640 | 25920-31104 |
400X200X200 | 4 | 600 | 4800-5760 | 23040-27648 |
400X250X200 | 3 | 450 | 3600-4320 | 21600-25920 |
Paver:200X100X60 | 16 | 1820 | 14560 |
|
Paver:200X163X60 | 8 | 1100 | 8800 |
|
It can produce all kinds of hollow blocks and solid bricks and color paving bricks,only by changing different moulds.
block samples:
JS500 Mixer for concrete kerb machine:
Model Number item | JS500 |
Feeding capacity | 800 |
Discharging volumn | 500 |
Productivity | ≥20 |
Max.diameter of aggregates | 60/40 |
agitating vane quantity | 28 |
speed | 4 |
Total power | 10.5 |
Lifting Speed of Hopper | 15.6 |
Overall dimension working position | 3620*2215*3985 |
Transporting State | |
Total weight | 1480 |
The height of blowdown | 658 |
Raw materials:
Working process:
Packing:
Company informtion:
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
If you have interest in our products,please contact me asap,I will take my great efforts to help you.
