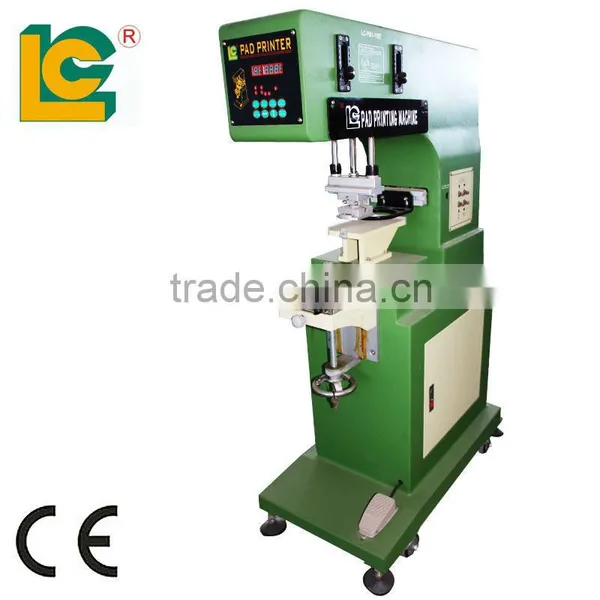

(LC-PM1-100T)Sealed Ink Cup 1-color Tampo Printing Machine

(LC-PM1-100T)Sealed Ink Cup 1-color Tampo Printing Machine photo-1
US$ 1,800 - 2,120 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Gravure
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Gravure
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-PM1-100T
Usage Other, Tampo printing machine
Automatic Grade Semi-Automatic
Voltage AC110V/220V
Gross Power 35W
Dimensions(L*W*H) 960*460*1400mm
Weight 94KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Pneumatic operation,fast speed
2.available tungsten&ceramic ring
3.LC pad printer is one of four leading brand
4.CE approve



Product name

Sealed ink cup 1-color Tampo printing machine

Model No

LC-PM1-100T

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Cylinder of  pad printing machine is German FESTO brand.Electrical components are imported from Japan.

While vaccum system is from Taiwan. It meets CE standard, with very stable running.

The wolfram steel scraper which is made by the newest Nanotechnology is used on the sealed cup pad printer,with a degree of HRC63 of the hardness on the surface,it also have high resistance and can be used for almost 3,000,000 times.This type of the machine is more environmental and can save more ink when compare with the traditional ink-well pad printer.

Advantage

1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.

Parameter

1. Model No: LC-PM1-100T
2. Operation: Pneumatic
3. Printing Colors: 1
4. Max. Printing area: 80*90mm
5. Plate area: 100*200 mm2
6. Sealed ink cup diameter: 60 or 90 mm
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 960×460×1400mm
11. Machine weight: 94kg

Usage

It is applied for print various kind of material,such as metal,glass,chinaware,plastic and so on.It also suitable for small printing area like plane, cambered and irregular surface,such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse,electronic appliance,crafts and so on

Free fittings

1. One pcs steel plate
2. Two pcs rubber pad
3. Work box
4. English operating instruction

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)



About us

1. One of three famous brand in China.our key products include , screen printer, hot stamping machine and UV curing machine.

2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.

 3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.

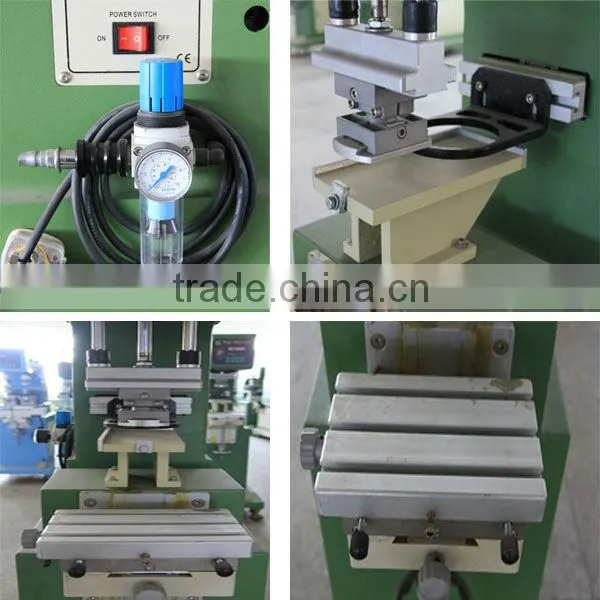

Machine detail pictures

(LC-PM1-100T)Sealed ink cup 1-color Tampo printing machine



Samples pictures

(LC-PM1-100T)Sealed ink cup 1-color Tampo printing machine

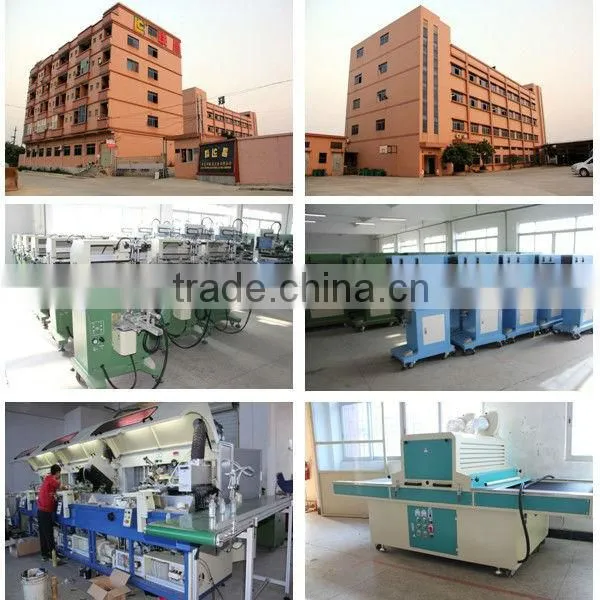

Factory and warehouse pic

(LC-PM1-100T)Sealed ink cup 1-color Tampo printing machine
