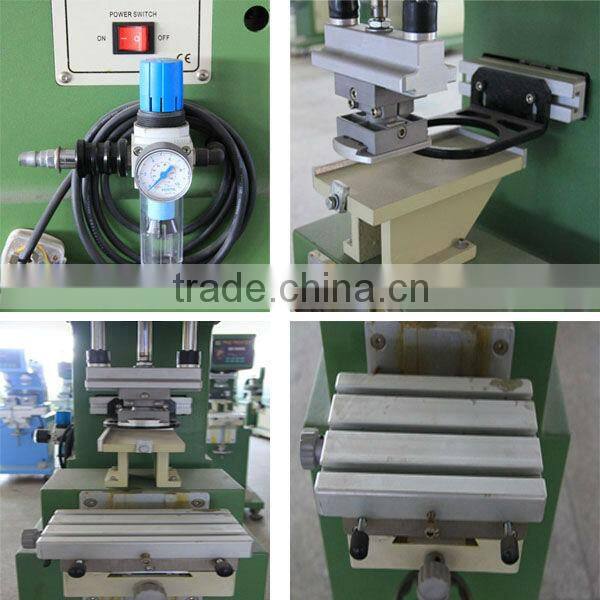

LC-PM1-200XT Ngle Transverse Flow Tampo Printing Machine

Product name

Single Transverse Flow Tampo Printing machine

Model No

LC-PM1-200XT

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Cylinder of  pad printing machine is German FESTO brand.Electrical components are imported from Japan.

While vaccum system is from Taiwan. It meets CE standard, with very stable running.

It is with closed ink cup, can save 60% ink and 90% thinner.

LC-PM1-200XT is use for some pad printing special parts, too lenth, too width, ink cup could transverse flow moving, so that, a most big size pars it is can pad printing also.

Advantage

1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.

Parameter

1.Model  NO  :LC-PM1-200XT
2.operation :pneumatic
3.Printing Colors:1
4.Max. printing area :85x450 mm
5.Plate area 100*500 mm²
6.Sealed  ink cup diameter:90mm
7. Max  printing speed:1600PCS/H
8.Wattage:220V/ 50HZ 110V/60HZ
9.Air pressure: 6 Bar
10.  Machine size:860x460x1400mm(LxWxH)
11.  Machine  weight :118kg

Usage

It is ideal for Printing onto rulers, catheters, syringes, pen clips, pen barrels, reflector tubes, electrical, electronic housings, badminton rackets, pvc/rubber pipes and pvc casing etc.

Free fittings

1.one pcs  pad steel plate
2.one pcs silicone rubber pad
3.one pcs jig
4.tooling box
5.Englishi specifications

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)
