Specifications
1.has two running items2.high tech new pad printing machinery
3. Independent up/down stroke and 2-color pad printer
Product name |
Independent up/down stroke tampo printing machinery |
Model No |
LC- PM2-150/2PT |
Certificate |
CE, ISO-9001-2000 |
Brand Name |
LC,China |
Description |
Cylinder of pad printer is German FESTO brand.Electrical components are imported from Japan. While vaccum system is from Taiwan. It meets CE standard, with very stable running. The Multi-color pad printer has two running items. One is all of the printing heads (silicone pads) throughAir pressure to control the action under one cylinder head , this type of pad printer by print to products on the limiting area ; a lot of printing machine can not print products length overstep effective area . At present, the vast majority belong to the printing machine of this type. for this type of product, our company has developed another high tech new pad printing machine : Independent up/down stroke and 2-color pad printer. |
Advantage |
1.Specifically useful print to large-area different parts positions . 2.Independent up/down stroke . 3.Two-colour pad printer with shuttle 4. controlled by microprocessor 5.Four-digit auto counter built-in 6.Coin aluminium structure ensure solidity and durability 7.Ink roller flooding for easy install/uninstall 8.Independent pad up/down stroke and speed asjustment 9.Auto balanced doctor blade available for efficient ink scraping 10.Printing speed asjustable to fullfil various requirements 11."Inking twice, printing once" for better ink covering 12.Able to sweep forward/backward without lowering pad to avoid ink drying at intervals 13.One or two colours printable 14.Two-colour ink tray base adjustable separately for overprint adjustment 15.Drying with auto air blowing for easy colour registration |
Parameter |
1.model number:LC-PM2-200/2PT 2.plate size:100×300 mm 3.Sealed ink cup diameter: 60 or 90 mm 5.Max. printing speed: 1500pcs/hr 6.Printing colour:2 7.Voltage:220V 50-60MHZ 8.Machine weight:200Kg 9.Machine size:860x460x1470 mm(LxWxH) |
Usage |
It is applied for print various kind of material,such as metal,glass,chinaware,plastic and so on, and suitable for small printing area of plane, cambered and irregular surface, such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse, electronic appliance,crafts etc. |
Free fittings |
1. two pcs steel plate |
Shipping way |
By sea, by air, by express |
Delivery time |
Within 7 days from the receipt of payment |
Loading seaport |
Shenzhen or Hong Kong, China |
package |
Plywood case |
Price term |
FOB Shenzhen, CFR, CIF, FCA, EXW etc |
Payment term |
100% T/T in advance(negotiation) |
About us
1. One of three famous brand in China.our key products include pad printer, screen printer, hot stamping machine and UV curing machine.
2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.
3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.

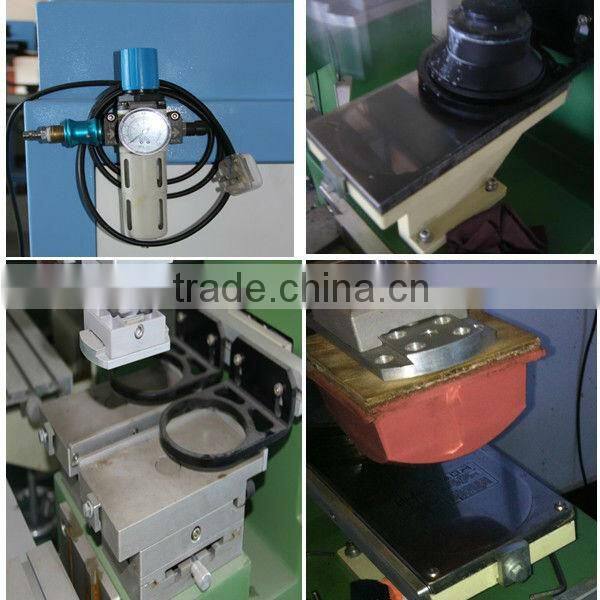

Machine detail pictures
Samples pictures
Factory and warehouse pic

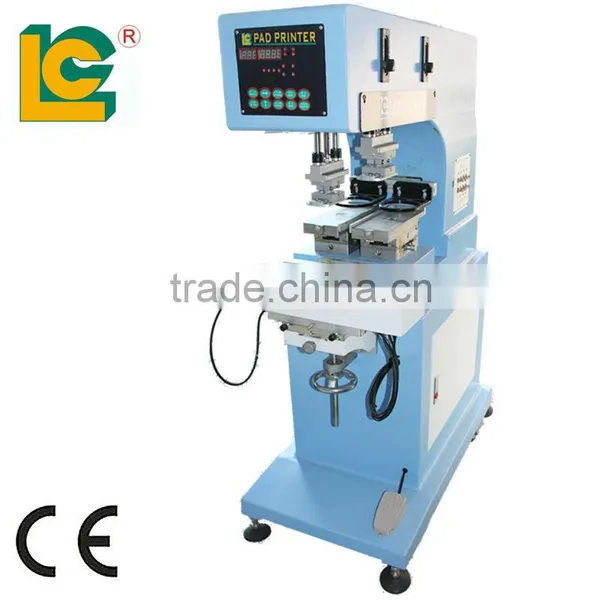

Independent up/down stroke tampo printing machinery !
all the machine is packed in wood case
the guatantee is three years
