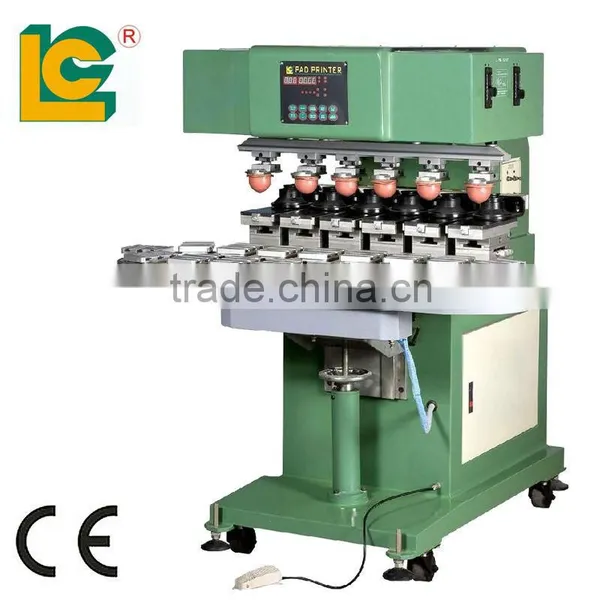

6 Colour Sealed Ink Cup Tampo Printing Machine LC-SPM6-150/18T

6 Colour Sealed Ink Cup Tampo Printing Machine LC-SPM6-150/18T photo-1
6 Colour Sealed Ink Cup Tampo Printing Machine LC-SPM6-150/18T photo-2
US$ 6,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, Tampo Printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Other, Tampo Printer
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-SPM6-150/18T
Usage Other, tampo printing machine
Automatic Grade Semi-Automatic
Voltage AC110V/220V
Gross Power 35W
Dimensions(L*W*H) 1300*1210*1420mm3
Weight 350KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas





Product name

6 Colour Sealed Ink Cup tampo printing machine

Model No

LC-SPM6-150/18T

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Cylinder of pad printer is German FESTO brand.Electrical components are imported from Japan.

While vaccum system is from Taiwan. It meets CE standard, with very stable running.

Six color  Sealed Ink Cup Pad Printer with the latest nano-technology ink cup made of tungsten steel cutting ring,the ink cup 's  surface hardness up to HRC63 degree, with high wear resistance, can withstand nearly 300 milliontimes the friction that this section of the machine oil tray machines than the traditional more environmentally and more fuel efficient.

Six-color  pad  printing machine is equipped with a station's conveyor belt 18-22  working station wheel printing machine, has been continuous high-speed printing, significantly increased production efficiency ideal for large multicolor overlay order.

Advantage

1.Controlled by microprocessor,easy operation,running stably and accurately.
2.4-digit auto counter built-in.
3.Cast aluminum machine frame,low weight and high intensity,turnable machine head.
4.Separate adjustment of the pad up/down stroke speed.
5.Ink scraper is auto balance keeping in printing.
6.With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7.Ink cup is turnable and adjustable in vertical and horizontal direction.
8.Super long slide stroke to print large size workpiece.
9.Speed of every single pneumatic organ is adjustable

Parameter

1.  Model  NO:LC-SPM6-150/18T

2.  printing Colors:6
3.  Plate area:100*250mm
4.  Sealed  ink cup:90 mm
5.  printing area:80*135
6.  Conveying Stations jigs:18
7.  Max  printing speed:1500PCS/H
8.  Power Supply:220V/ 50HZ  110V/60HZ
9.  Air pressure:4-6pa
10. dimension:1300×1210×1420mm3

Usage

It is to fit pad printing  a variety of printed materials: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the irregular surface arc printing products, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts and so on.

Free fittings

1.6 pcs  rubber pad
2.6 pcs  assembly jigs
3.6 pcs steel pad plate
4.   English operating instruction

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)



About us

1. One of three famous brand in China.our key products include pad printer, screen printer, hot stamping machine and UV curing machine.

2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.



3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.





6 Colour Sealed Ink Cup tampo printing machine LC-SPM6-150/18T



Samples pictures

6 Colour Sealed Ink Cup tampo printing machine LC-SPM6-150/18T

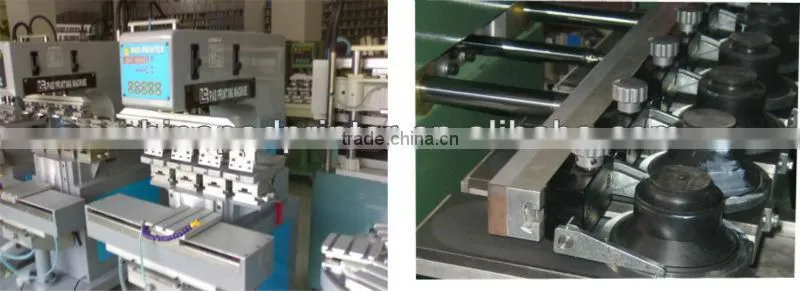

Factory and warehouse picture.



 6 Colour Sealed Ink Cup tampo printing machine LC-SPM6-150/18T



6 Colour Sealed Ink Cup tampo printing machine
