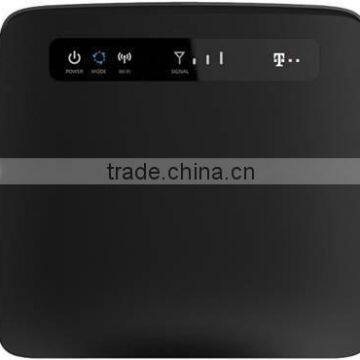

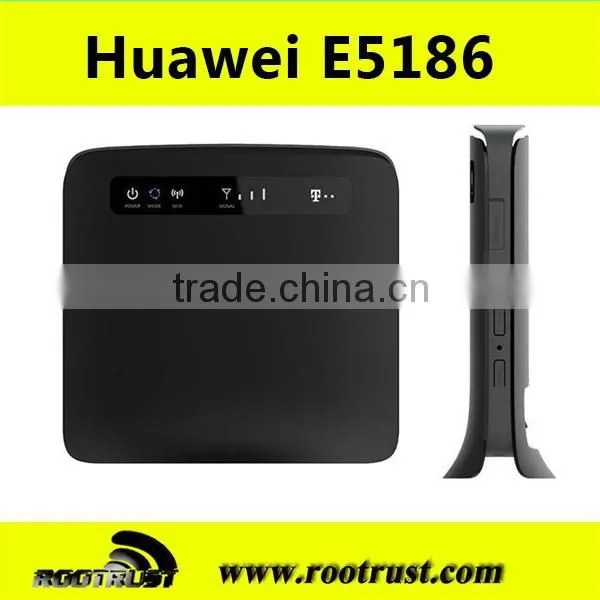

Huawei E5186s-22a LTE FDD 800/900/1800/2100/2600Mhz TDD2600Mhz Cat6 300Mbps Mobile Gateway Router

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer, Trading Company

Year Established:

2013

Factory Size:

10,000-30,000 square meters

Shenzhen Rootrust Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Huawei E5186s-22a LTE FDD 800/900/1800/2100/2600Mhz TDD2600Mhz Cat6 300Mbps Mobile Gateway Router

Product Description

Product features:

HUAWEI E5186 LTE Cat6 Router Technical Specifications
Model Number	HUAWEI E5186
SIM Lock Status	Unlocked, SIM Card Free
Form type	4G LTE Router /LTE Wireless Gateway

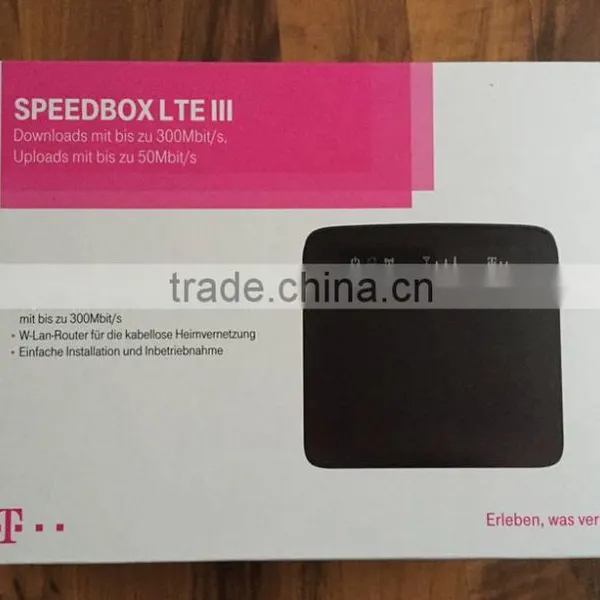

Opterator Model	Telekom Speedbox LTE III
Chipset/platform	Hisilicon
Category	LTE Category 6 (3GPP Release 11) WiFi Router
Network Bands
4G/LTE Frequency Bands	Huawei E5186S-22 : Band 1/3/7/8/20/38 (FDD 800/900/1800/2100/2600MHz & TDD 2600MHz)
	Huawei E5186s-61a: Band FDD 700/1800/2600MHz TDD 2300MHz


3G UMTS/WCDMA Bands	2100/900Mhz
2G GPRS/GSM/EDGE	850/900/1800/1900 MHz
Data Rate Speed
4G/LTE FDD link Speed	Downstream: 300Mbit/s	Upstream: 150Mbit/s
4G/TD-LTE link Speed	Downstream: 224Mbit/s	Upstream: 20Mbit/s
3G DC-HSPA+ Link Speed	Downstream: 42Mbit/s	Upstream: 5.76Mbit/s
3G HSPA+ Link Speed	Downstream: 21Mbit/s	Upstream: 5.76Mbit/s
3G UMTS Link Speed	Downstream: 384Kbit/s	Upstream: 186Kbit/s
Other Features
MIMO Support	YES, 2 X 2 MIMO
WiFi Support	802.11 b/g/n/ac, WiFi peak speed to 300mbps, 2.4GHz/5GHz
Maximum Users Supported	64 Users
SD Card Slot	YES, SD card up to 32GB

External Antenna	2 External antenna (SMA female)
Ethernet Port	4 x RJ-45 (One for WLAN/LAN, Three for LAN)

Battery	No	Working time:
Dimensions
Weight	450g
OS Supported	Windows/Linux/Mac OS
IPV 6 Support	Yes
Supported Operators	Telekom, Vodafone, Orange, E-plus, A1,3 UK, EE, STC, Telstra,

Wi-Fi Transmission Speed:750M
