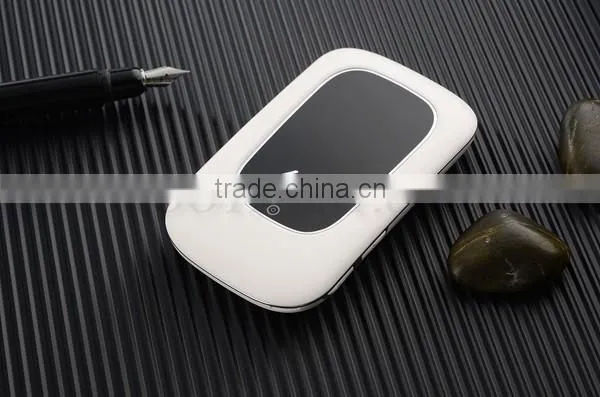

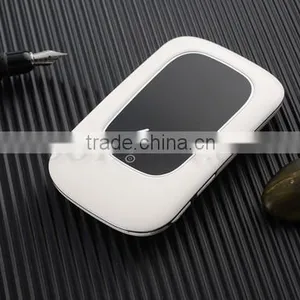

4g Modem Lte Router Wifi With Sim Card Slot K8 Factory OEM Quality Choice
US$ 50 - 60
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RT-link
Model Number:
K8
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brand New 3G Wireless Router Huawei E585NegotiableMOQ: 10 Pieces -
Unlocked Huawei E5375 150Mbps 4G LTE Wireless Mobile Hotspot Wifi Router ModemNegotiableMOQ: 5 Pieces
-
Huawei EC5377 FDD/TDD 1800/1900/2100/2300/2600 MHz (Band 1, 2, 3, 38, 40) HSPA+ 850/1900/2100Mhz EVDO 800/1900Mhz Portable ModemNegotiableMOQ: 1
-
ZTE MF91 MF91S MF91T MF91D 4g Lte Wifi RouterUS$ 55 - 60MOQ: 10 Pieces
-
ZTE MF90C1 4G LTE-FDD 1800/2100Mhz(B1/B3) TDD2500/2600(B38/B41)Mhz Mobile WiFi HotspotNegotiableMOQ: 1
Place of Origin
Guangdong, China
Brand Name
RT-link
Model Number
K8

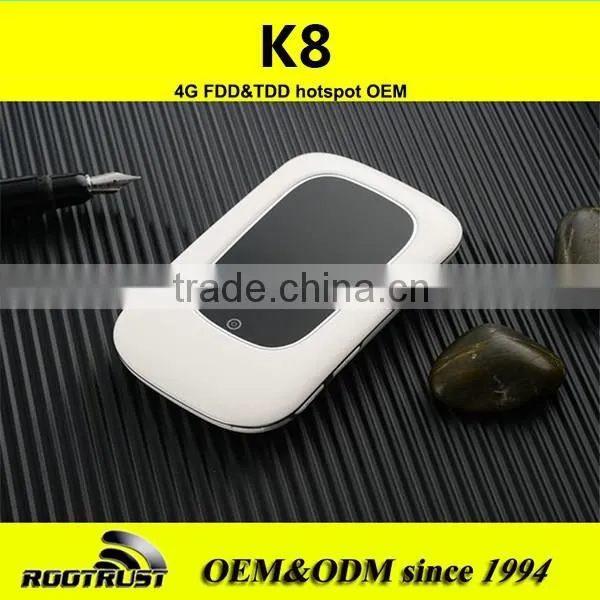

4g modem lte router wifi with sim card slot K8 OEM
| 4G Router K8 Specification | ||
| Item | SubItem | Description |
| WWAN Specification | ||
| Frequency Bands |
GSM,EDGE,WCDMA,HSPA, DC-HSPA+,TD-LTE,FDD-LTE | LTE TDD 1900MHz(Band 39) 2300MHz(Band 40) 2600MHz(Band 38) (Band41) |
| LTE FDD 2600MHz(Band 7) 1800MHz(Band 3) 2100MHz(Band 1) (Band 5) | ||
| UMTS 850 / 1900 / 2100 MHz | ||
| GSM 850 / 900 / 1800 / 1900 Mhz | ||
| Data Speeds |
TDD-LTE | up to 100 Mbps downlink, 50 Mbps up |
| FDD-LTE | up to 100 Mbps downlink, 50 Mbps up | |
| HSPA+ | DL 42Mbps , UL 11Mbps | |
| GSM | DL 473K Mbps , UL 296K Mbps | |
| Sensitivity | TDD-LTE/FDD-LTE/WCDMA/GSM | < -106dBm |
| WLAN Specification | ||
| Frequency Bands |
WIFI IEEE 802.11g/b/n | ISM Band 2.400~2.484GHz |
| Data Speeds | WIFI IEEE 802.11n | 150/65/54/48/36/24/18/12/9/6Mbps |
| WIFI IEEE 802.11g | 54/48/36/24/18/12/9/6Mbps | |
| WIFI IEEE 802.11b | 11/5.5/2/1Mbps | |
| Power Class | WIFI IEEE 802.11b/g/n | 15dBm |
| Sensitivity | WIFI IEEE 802.11b(11M) | -80dBm@8%PER |
| WIFI IEEE 802.11g(54M) | -76dBm@8%PER | |
| WIFI IEEE 802.11n(65M) | -72dBm@8%PER | |
| System Specification | ||
| Security | Networking Protocols | TCP, UDP, ICMP, UPnP, ARP and IGMP |
| DHCP Client/Server | ||
| Static and dynamic routing (RIP1/RIP2) | ||
| Dynamic DNS, WINS | ||
| Supports Hidden mode (multiple Ap mode:provides maximum 5 groups of SSID) | ||
| Supports WPS (Wi-Fi Protected Setup). | ||
| Supports WEP,TKIP,CCMP and AES encryptiondecryption mode | ||
| Supports OPEN,SHARE,WPA-PSK,WPA2-PSK,WPA-WPA2-PSK Authentication mode | ||
| Application Layer Gateway Service (ALG) |
Supports FTP,TFTP,SIP,H323,L2TP,IPSEC,PPTP Protocols through firewall | |
| Device Management | DHCP Server | |
| Web Server | Supports WEB based management and configuration | |
| DNS Relay/Client | ||
| uPnP Server | ||
| Power Supply |
operating voltage | Mini-USB DC 5V |
| voltage hunting | 4.5 – 5.5V DC | |
| operating current | TBD | |
| Environment | Operating Temp. | 0℃~+45℃ |
| Max Operating Temp. | -20℃~+60℃ | |
| Storage Temp. | -20℃~+25℃ | |
| Relative Humidity | 45%~85% | |
| mechanical | Size | Length x Width x Height (W x L x W) :109.2*65*16.5mm |
| Ports | SIM/USIM/UIM | Support,compliant with 3GPP 31.101 and 31.102 standard |
| USB | Micro-USB connector for power input and data port connection to PC | |
| Button | RESTORE_KEY, POWER_KEY | |
| Memory card | MicroSD card | |
| LED | POWER_LED, Signal_LED,WLAN_LED, WWAN_LED satus show | |
| Power | Battery | 3.7V 2400mAh Work time:8hours Operating time: 16 hours with single WiFi connection |
| Operation Range | Indoor up to 30 meters Outdoor up to 50 meters |
|
| Support OS | Windows | Win7/WinXP/Vista/Win2000 |
| MAC OS | Supported | |
| LINUX | Supported | |
| ANDROID | Supported | |
| Certification | ROHS | compliant with ROHS |
| CE | compliant with CE | |
| Microsoft WHQL | - | |
| Other | Could be supported upon customer requirements | |
