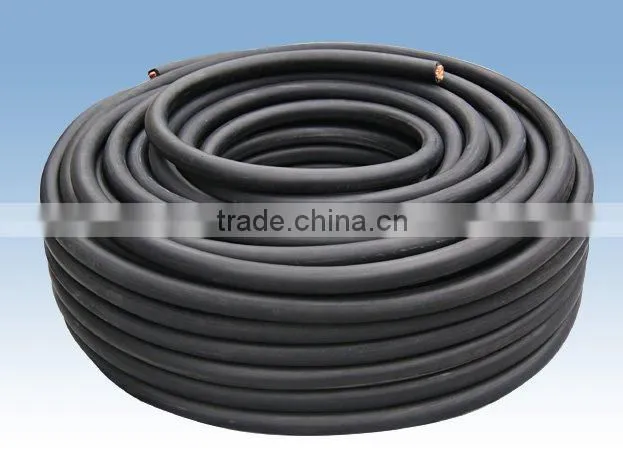

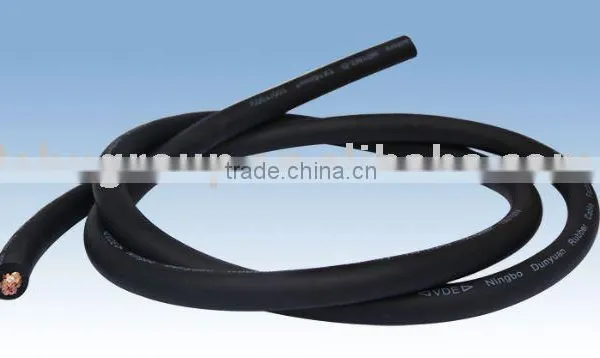

50mm2 Rubber Welding Cable
US$ 1 - 3
MOQ: 2 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
dunyuan, dunyuan
Model Number:
H01N2-D, H01N2-D
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
dunyuan, dunyuan
Model Number
H01N2-D, H01N2-D
Conductor Material
Other, Copper, Copper
Insulation Material
Other, Rubber, Rubber
Jacket
Rubber
Number of Conductors
1
Application
welding machine,charge machine, welding machine,charge machine
Specifications
16mm2, 25mm2,35mm2,50mm2,70mm2,95mm2,120mm2 welding cable ,VDE approval , H01N2-D, H01N2-Ewelding cable:H01N2-D
Rated Voltage: 100/100V
Cores:1
conductor: 5th of HD383
insulation: temperature: -15~75 C
application: for welding machine, charge machine,etc.
H01N2-D welding cable struction | |||||
Conductor section:10-185mm2 Rated voltage:100/100V | |||||
Line core number and conductor nominal section |
Norminal thinkness of insulation/sheath(mm) |
Overall Diameter (mm) |
At 20 DC Resistance of conductor (Ω/km) |
||
|
Min mm |
Max mm |
Tinned conductor
|
Non-tinned conductor |
||
1x10 |
2.0 |
7.7 |
9.7 |
1.95 |
1.91 |
1x16 |
2.0 |
8.8 |
11.0 |
1.24 |
1.21 |
1x25 |
2.0 |
10.1 |
12.7 |
0.795 |
0.780 |
1x35 |
2.0 |
11.4 |
14.2 |
0.565 |
0.554 |
1x50 |
2.2 |
13.2 |
16.5 |
0.393 |
0.386 |
1x70 |
2.4 |
15.3 |
19.2 |
0.277 |
0.272 |
1x95 |
2.6 |
17.1 |
21.4 |
0.210 |
0.206 |
1x120 |
2.8 |
19.2 |
24.0 |
0.164 |
0.161 |
1x150 |
3.0 |
21.1 |
26.4 |
0.132 |
0.129 |
1x185 |
3.2 |
23.1 |
28.9 |
0.108 |
0.106 |
