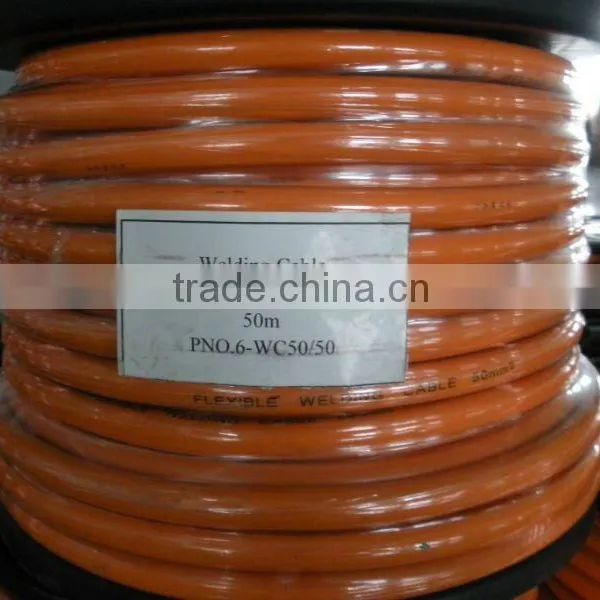

PVC Welding Cable 70mm2
US$ 1 - 2
MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
dunyuan
Model Number:
PVC welding cable
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
dunyuan
Model Number
PVC welding cable
Conductor Material
Copper
Insulation Material
PVC
Jacket
PVC
Number of Conductors
1
Application
welding machine, charger machine
Specifications
We are professional in produce the PVC welding cable for more than 13 years,the cross sections is 10-185mm2PVC welding cable:
Rated Voltage: 100/100V
Cores:1
conductor: 5th of HD383
insulation: temperature: -15~70 C
PVC welding cable struction | |||||
Conductor section:10-185mm2 Rated voltage:100/100V | |||||
Line core number and conductor nominal section |
Norminal thinkness of insulation/sheath(mm) |
Overall Diameter (mm) |
At 20 DC Resistance of conductor (Ω/km) |
||
|
Min mm |
Max mm |
Tinned conductor |
Non-tinned conductor |
||
1x10 |
2.0 |
7.7 |
9.7 |
1.95 |
1.91 |
1x16 |
2.0 |
8.8 |
11.0 |
1.24 |
1.21 |
1x25 |
2.0 |
10.1 |
12.7 |
0.795 |
0.780 |
1x35 |
2.0 |
11.4 |
14.2 |
0.565 |
0.554 |
1x50 |
2.2 |
13.2 |
16.5 |
0.393 |
0.386 |
1x70 |
2.4 |
15.3 |
19.2 |
0.277 |
0.272 |
1x95 |
2.6 |
17.1 |
21.4 |
0.210 |
0.206 |
1x120 |
2.8 |
19.2 |
24.0 |
0.164 |
0.161 |
1x150 |
3.0 |
21.1 |
26.4 |
0.132 |
0.129 |
1x185 |
3.2 |
23.1 |
28.9 |
0.108 |
0.106 |
