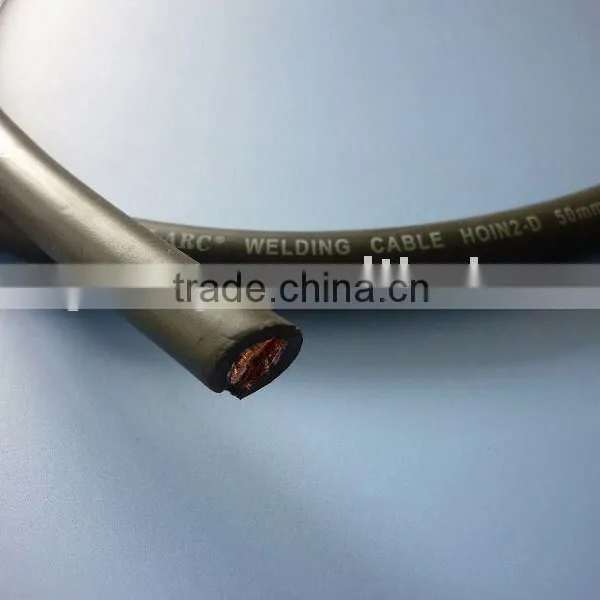

VDE approved welding cable H01N2-D, has ROHS, Pahs certificate. Export to Europe,Asia,Austria, Mid-east etc.welding cable:H01N2-D
Rated Voltage: 100/100V
Cores:1
Conductor: copper, 5th of HD383
Insulation:CPE sheath, temperature: -35~70 C
Certification: VDE,ROHS,paHS
Application:
These cables are used for connecting the electrodes to the welding equipment. These cables are suitable for welding equipment in industry, in automated welding equipment, in tooling constructions, automobile and ship building as well as for hand-held electrodes in workshops and at building sites. These flexible and robust current-carrying cables are suitable for use at high mechanical loads in dry, moist and wet rooms as well for outdoor applications.
H01N2-D welding cable struction | |||||
Conductor section:10-185mm2 Rated voltage:100/100V | |||||
Line core number and conductor nominal section |
Norminal thinkness of insulation/sheath(mm) |
Overall Diameter (mm) |
At 20 DC Resistance of conductor (Ω/km) |
||
|
Min mm |
Max mm |
Tinned conductor |
Non-tinned conductor |
||
1x10 |
2.0 |
7.7 |
9.7 |
1.95 |
1.91 |
1x16 |
2.0 |
8.8 |
11.0 |
1.24 |
1.21 |
1x25 |
2.0 |
10.1 |
12.7 |
0.795 |
0.780 |
1x35 |
2.0 |
11.4 |
14.2 |
0.565 |
0.554 |
1x50 |
2.2 |
13.2 |
16.5 |
0.393 |
0.386 |
1x70 |
2.4 |
15.3 |
19.2 |
0.277 |
0.272 |
1x95 |
2.6 |
17.1 |
21.4 |
0.210 |
0.206 |
1x120 |
2.8 |
19.2 |
24.0 |
0.164 |
0.161 |
Update Date:2010-12-17 1:01:08
