Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Mini Brushless dc Hot Water Circulation Pump

Mini Brushless dc Hot Water Circulation Pump

Name: Mini Brushless dc Hot Water Circulation Pump
Brand: ZHUOGAO
SKU: 113590793
Availability: InStock

Mini Brushless dc Hot Water Circulation Pump thumbnail-1

Mini Brushless dc Hot Water Circulation Pump photo-1

US$ 4.6 - 6.2 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ZHUOGAO

Model Number:

ZGP3525-1

Contact Supplier Request Quote Chat Now

Foshan Zhuogao Motor Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Rongqi/Shunde

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ZHUOGAO

Model Number ZGP3525-1

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, Electric

Pressure Low Pressure

Application Submersible

DC brush water pump for Hot water circulation

1.Rated Power :3-25 W

2.Application: hot water circulation

3.Action: circulation

DC Brushless Water Pump

Product Description

¤ Product Parameter
Model Character			ZGP3525-1
Working voltage range			6VDC-24VDC
Rated power			3~25W
Static water head			1~2 meters
Static flow rate			8~21L/min (double outlet)
Lifespan			Continuous operation under normal working surrounding>20000H
Working Environment			PH value: PH5-10(weak acid and weak base), workable both on land and in water.
Max noise			Under normal working condition,(1meter over the test instrument)<40dB
Max working temperature			Under room temperature surroundings, fluid medium temperature≤70℃
Application			Hot water circulation, solar water heater, small fountain, aquarium, etc.
Color			Black (Can be customized according to your requirement)
Outlet direction
Dimension				IP grade	Inlet		Outlet		Remarks
Length(mm)	Width(mm)	Height(mm)			OD(mm)	ID(mm)	OD(mm)	ID(mm)
86	43	96		IP68	φ25	φ21	φ15	φ12

¤ Characteristic Graph
Remarks: The graph is just for your reference, the final one can be based on customers` request.

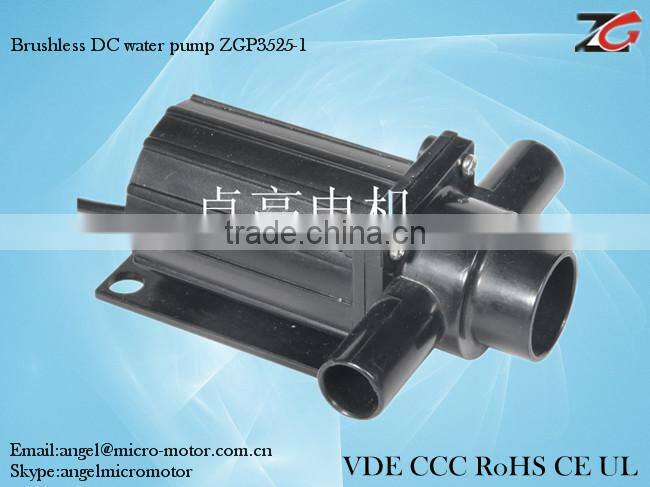

¤ Product Picture

Model No.: ZGP3525-1

Product Application

DC Brushless Water Pump application area:

1. household Application

Portable bath machine, mobile air conditioner, small fountain, etc.

2.Solar

3. Medical equipment

4. Car product

5. irregation of agreculture

Some application as below show:

Advantage technology

1. better controllability, wide speed range

2.high reliability, long service life, without regular maintenance.

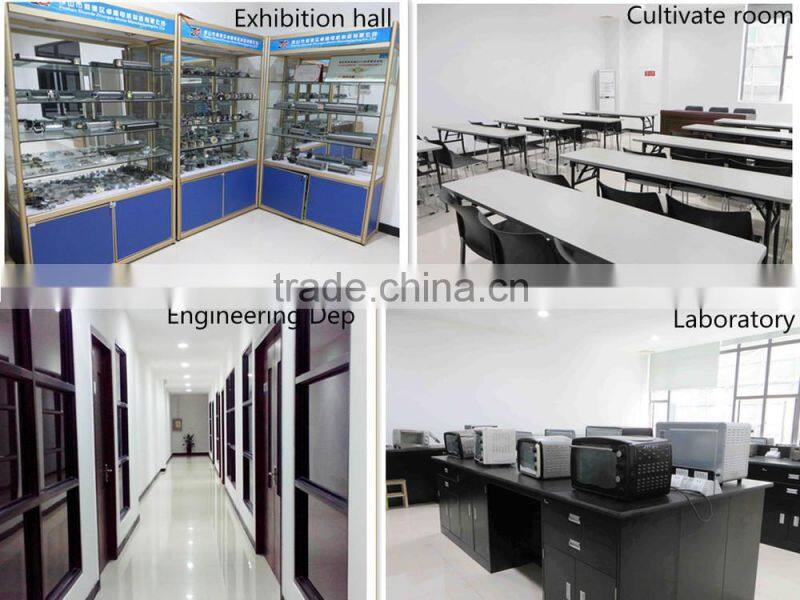

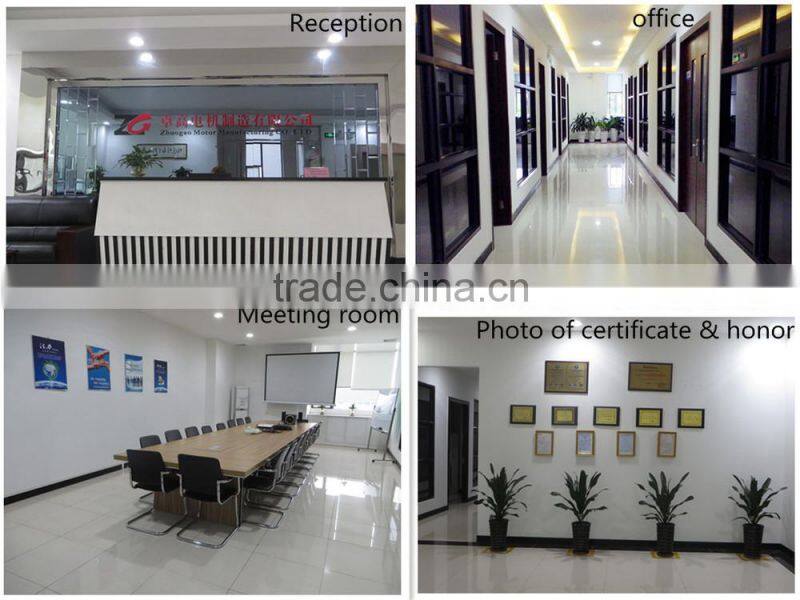

Company Information

About us

FAQ

Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or L/C

Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 15-20days after order confirmation (by vacuum or by sea)

Q: What's your main products of your company?
A: We specialized in all kinds of DC Brushless water pump(solar water pump, coffe maker pump), shaded pole motor YJ61 SERIRES, 48 SERIES, Oven motor for over 10 years with excellent quality and competitive.

Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.

Q: How long is your pump lifetime?
A: Continuous operation under normal working surrounding>20000H
