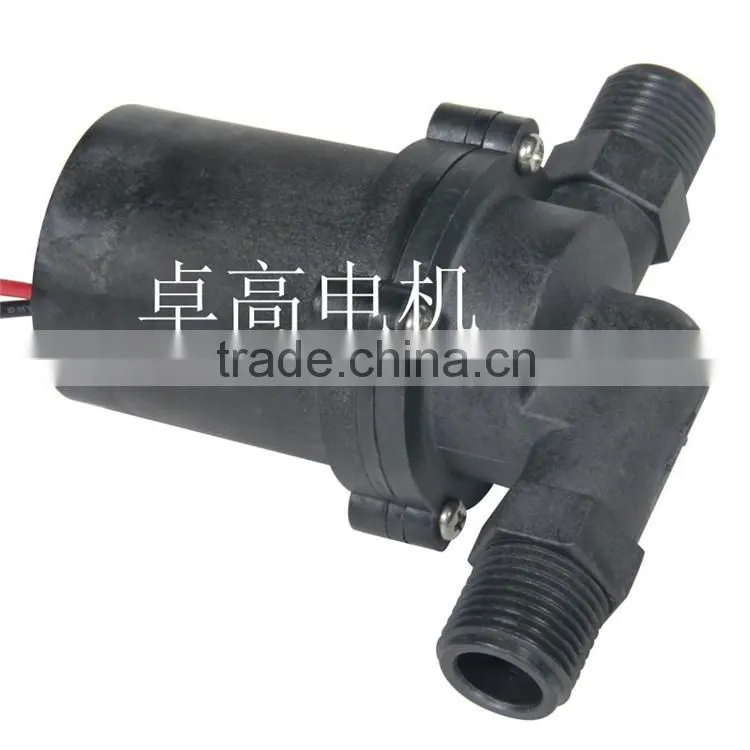

25W10L/min 6m dc Water Pump Solar Panels Water Pump

Name: 25W10L/min 6m dc Water Pump Solar Panels Water Pump
Brand: ZHUOGAO
SKU: 113590059

US$ 30 - 35 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ZHUOGAO

Model Number:

ZGP5010-1

Foshan Zhuogao Motor Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Rongqi/Shunde

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ZHUOGAO

Model Number ZGP5010-1

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, Electric

Pressure Low Pressure

Application Submersible

Product Description

Model	ZGP3503-1
Character
Working voltage range	6VDC-24VDC	Rated power	10-60W
Static water head	1~5meters	Static flow rate	10 ~ 28L/min/
Lifespan	Continuous operation under normal working surrounding>20000H
Working Environment	PH value: PH5-10(weak acid and weak base), workable both on land and in water
Max noise	Under normal working condition,(1meter over the test instrument)<45dB
Max working temperature	Under room temperature surroundings, fluid medium temperature≤70℃
Application	Portable bath machine, mobile air conditioner, medical treatment equipment, fountain, aquarium, etc.
Color	Black color, can be customized according to customer`s requirement
Outlet direction	Can be adjustable at any angle

Data sheet

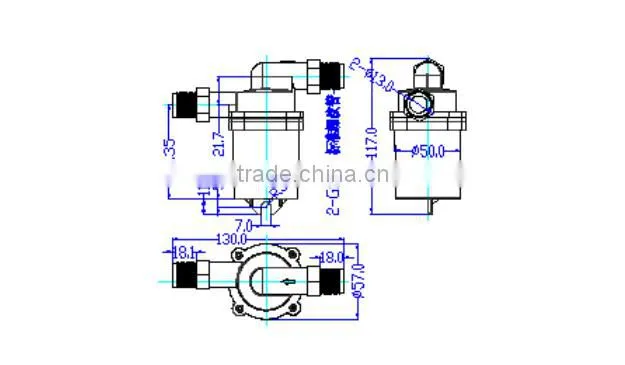

Dimension			IP grade	Inlet		Outlet		Remarks
Length(mm)	Width (mm)	Height(mm)	IP67	OD(mm)	ID(mm)	OD(mm)	ID(mm)	Inlet and outlet have standard screws
130	57.0	117	IP67	G1/2″standard screw	φ13	G1/2″standard screw	φ13	Inlet and outlet have standard screws
