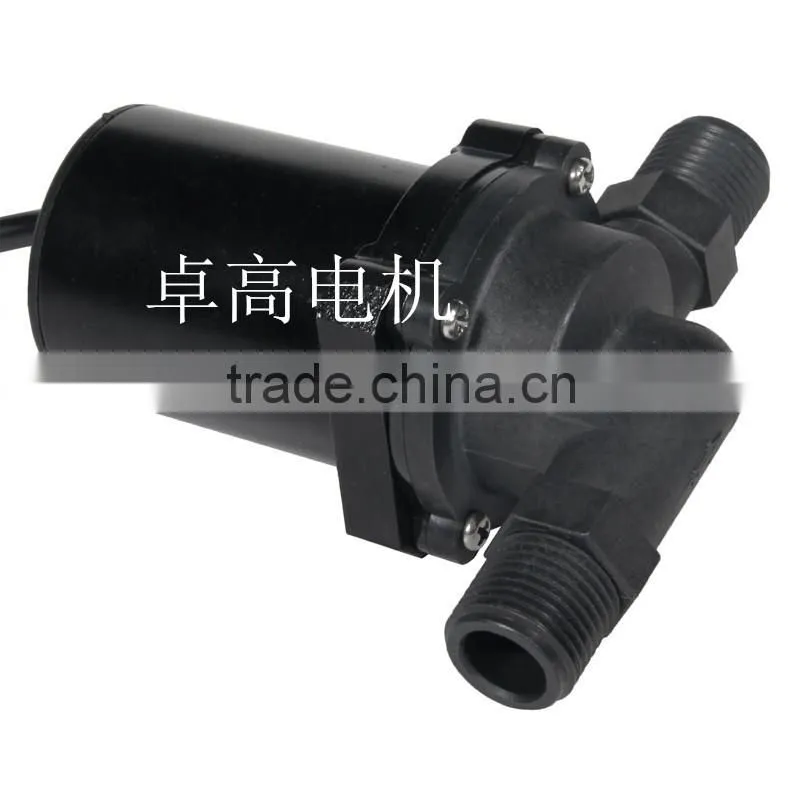

24v Water Heater Booster Pump ZGP5010-2

Name: 24v Water Heater Booster Pump ZGP5010-2
Brand: ZHUOGAO
SKU: 113590045

US$ 25 - 35 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ZHUOGAO

Model Number:

ZGP5010-2

Foshan Zhuogao Motor Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Rongqi/Shunde

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ZHUOGAO

Model Number ZGP5010-2

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, Electric

Pressure Low Pressure

Application Other, booster

Product Description

Model	ZGP5010-2
Character
Working voltage range	6VDC-24VDC	Rated power	10~80W
Static water head	1~5 meters	Static flow rate	10 ~ 28L/min/
Lifespan	Continuous operation under normal working surrounding>20000H
Working Environment	PH value: PH5-10(weak acid and weak base), workable both on land and in water
Max noise	Under normal working condition,(1meter over the test instrument)<45dB
Max working temperature	Under room temperature surroundings, fluid medium temperature≤100℃
Application	Hot water circulation & cooling, Electric Vehicles, solar water heater, etc.
Color	Black color, can be customized according to customer`s requirement
Outlet direction	Can be adjustable at any angle

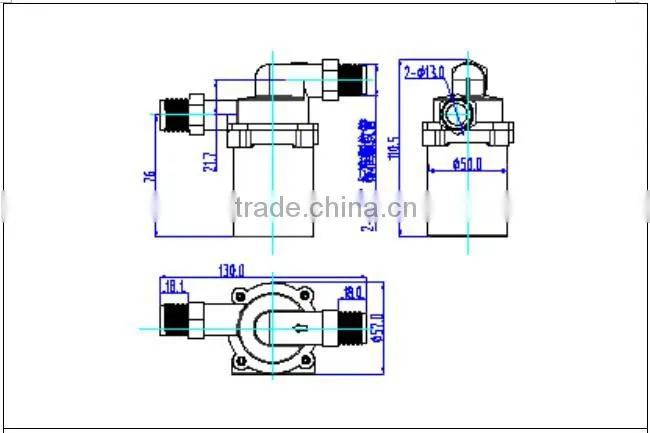

DATA SHEET

Dimension			IP grade	Inlet		Outlet		Remarks
Length(mm)	Width (mm)	Height(mm)	IP67	OD(mm)	ID(mm)	OD(mm)	ID(mm)	Inlet and outlet have standard screws
130	57.0	110.5	IP67	G1/2″ standard screw	φ13	G1/2″ standard screw	φ13	Inlet and outlet have standard screws
