DC brush water pump for solar water heater
1.Rated Power :3-25 W
2.Application: Solar Fountain
3.Action: Fountain
DC Brushless Water Pump
¤ Product Parameter | |||||||||
|
Model Character |
ZGP3508-2 |
||||||||
Working voltage range |
6VDC-24VDC |
||||||||
Rated power |
3~25W |
||||||||
Static water head |
0.5~6 meters |
||||||||
Static flow rate |
5~12L/min |
||||||||
Lifespan |
Continuous operation under normal working surrounding>20000H |
||||||||
Working Environment |
PH value: PH5-10(weak acid and weak base), workable both on land and in water. |
||||||||
Max noise |
Under normal working condition,(1meter over the test instrument)<40dB |
||||||||
Max working temperature |
Under room temperature surroundings, fluid medium temperature≤100℃ |
||||||||
Application |
Solar water heater, portable bath machine, mobile air conditioner, etc. |
||||||||
Color |
Black (Can be customized according to your requirement) |
||||||||
Outlet direction |
|
||||||||
Dimension |
IP grade |
Inlet |
Outlet |
Remarks |
|||||
Length(mm) |
Width(mm) |
Height(mm) |
|
OD(mm) |
ID(mm) |
OD(mm) |
ID(mm) |
|
|
96.0 |
48 |
90 |
IP67 |
G1/2 inch standard screw |
φ13 |
G1/2 inch standard screw |
φ13 |
|
|
| |||||||||
¤ Characteristic Graph | |||||||||
|
Remarks: The graph is just for your reference, the final one can be based on customers` request. | |||||||||

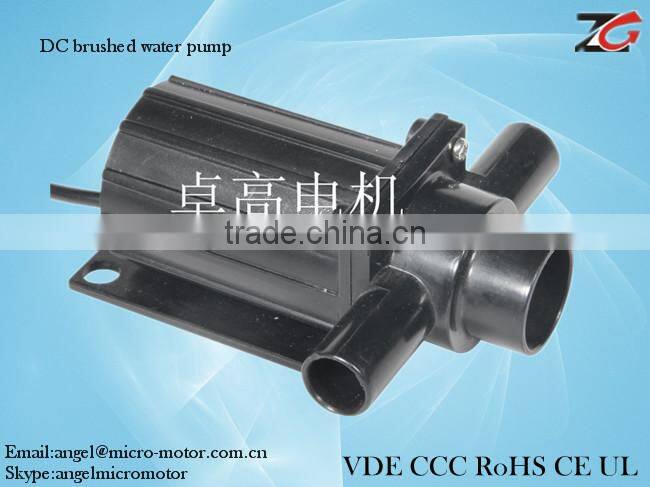

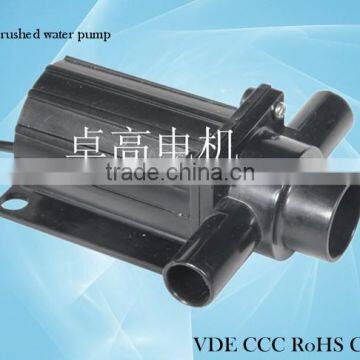

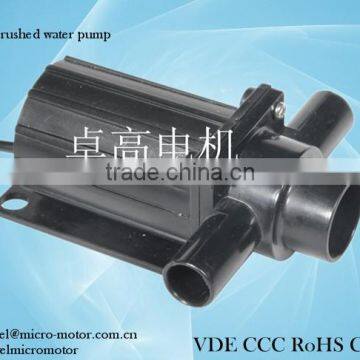

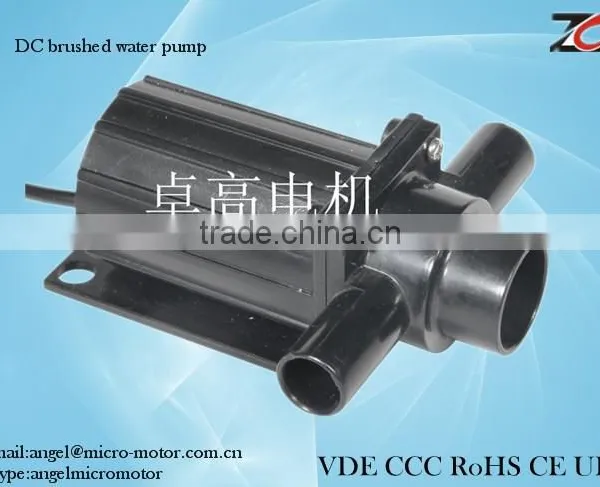

¤ Product Picture |
Model No.: ZGP3508-2
DC Brushless Water Pump application area:
1. household Application
Portable bath machine, mobile air conditioner, small fountain, etc.
2.Solar
3. Medical equipment
4. Car product
5. irregation of agreculture
6. Industry
Some application as below show:
Advantage technology
1. better controllability, wide speed range
2.high reliability, long service life, without regular maintenance.
About us
Zhuogao Motor Manufacturing Co., Ltd
Address: No.10, Nanqu Industrial Zone,tianhe north Rd West Ronggui, Shunde,Foshan, Guangdong, China
Website:
Adds: No.10 Nanqu industrial zone, Tianhe North RD West, Ronggui, Shunde, Guangdong, China
Tel: +86 757 28372811 ext 2010
Fax: +86 757 28372817
Mobile/WhatsApp: +86 15118601823
Skype: angelmicromotor
