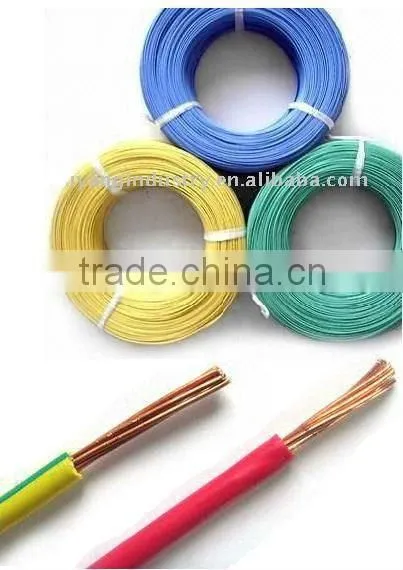

Help CenterAll Colors Thw Tw AWG 10 Copper Wire Cable
Related Products
-
THHN THWN Cable Wire Size AWG 8 10 12 14 16 Copper / PVC / Nylon Electric Building CableUS$ 0.01 - 10MOQ: 1 Kilometer -
Cu/PVC 450/750V H07V-R PVC Single Core Cable 6491XUS$ 0.1 - 20MOQ: 1 Meter
-
450/750V LSHF Single Core 6491B CableUS$ 0.1 - 20MOQ: 1 Meter
-
600v Copper Type Conductor Pvc Insulated THW TW Electric WireUS$ 0.1 - 38MOQ: 1000 Meters
-
PVC Flexible Electric Cable Electrical Wire Prices 6mm 8mm 10mm 12mm 14mm 16mmUS$ 0.25 - 6.2MOQ: 1 Meter

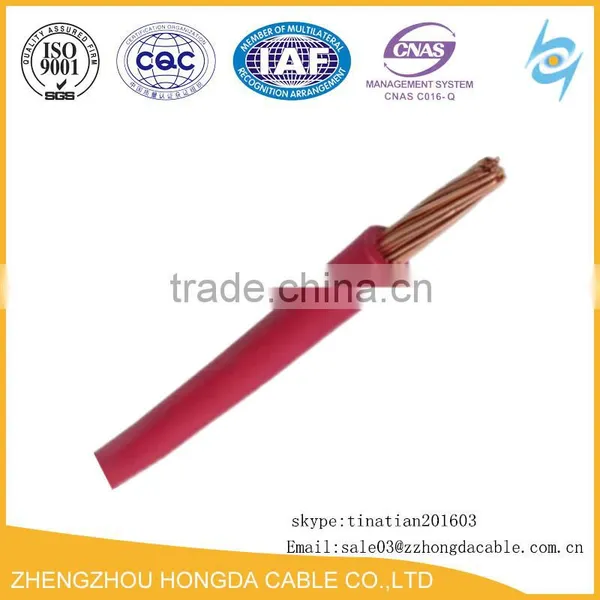

THW, Building Wire, PVC Insulated Wire (UL 83)
Polyvinyl chloride (PVC) / single conductor / 14 AWG to 500 KCMIL / 600V
Applications
Type THW cable is suitable for various commercial and industrial applications. These cables may be installed in wet or dry locations, indoors or outdoors, in raceways, underground ducts (ask about our preinstalled cable-in-conduit products), aerial or direct buried.
Type THW cable is NEC-compliant for continuous operations at 75° C in wet and dry locations.
Specifications and Ratings
- UL Type THW
- The insulation is suitable for use in wet or dry locations at a temperature not exceeding 75° C
- RoHS compliant
- Oil resistant I
- CT USE (#1/0 AWG and larger)
Design Parameters
CONDUCTORS: Class B, soft drawn, bare copper per ASTM B3 and ASTM B8. Both tinned copper conductors and extra-flexible conductors are available as options. INSULATION: Heat and moisture resistant polyvinyl chloride (PVC) meeting the requirements of ICEA S-95-658 (NEMA WC 90) UL 83 for Type THW and wires. The insulation is suitable for use in wet or dry locations at a conductor temperature not exceeding 75° C for normal operation.
ASSEMBLY: Single conductor cables can be paralleled or multiplexed for more efficient installations. Single conductor cables can also be pre-installed in conduit.
| Conductor Size | Strand Class | Strands | Nominal Insulation Thickness | Nominal Cable O.D. | Approximate Cable Weight | ||
| AWG (mm2) | in | mm | in | mm | Lbs/Mft (Kg/Km) | ||
| 14 AWG (2.08) | Class B | 7 | 0.030 | (0.72) | 0.140 | (3.60) | 18 (27) |
| 12 AWG (3.31) | Class B | 7 | 0.030 | (0.72) | 0.160 | (4.10) | 28 (42) |
| 10 AWG (5.26) | Class B | 7 | 0.030 | (0.72) | 0.180 | (4.60) | 42 (63) |
| 8 AWG (8.37) | Class B | 7 | 0.045 | (1.10) | 0.250 | (6.30) | 69 (103) |
| 6 AWG (13.3) | Class B | 7 | 0.060 | (1.50) | 0.310 | (7.90) | 110 (164) |
| 4 AWG (21.2) | Class B | 7 | 0.060 | (1.50) | 0.360 | (9.10) | 165 (246) |
| 2 AWG (33.6) | Class B | 7 | 0.060 | (1.50) | 0.420 | (10.70) | 250 (373) |
| 1/0 AWG (53.5) | Class B | 19 | 0.080 | (2.00) | 0.540 | (13.70) | 400 (597) |
| 2/0 AWG (67.4) | Class B | 19 | 0.080 | (2.00) | 0.580 | (14.70) | 500 (746) |
| 4/0 AWG (107) | Class B | 19 | 0.080 | (2.00) | 0.690 | (17.50) | 755 (1126) |
| 250 KCMIL (127) | Class B | 37 | 0.095 | (2.40) | 0.770 | (19.60) | 900 (1342) |
| 350 KCMIL (177) | Class B | 37 | 0.095 | (2.40) | 0.870 | (22.10) | 1235 (1842) |
| 500 KCMIL (253) | Class B | 37 | 0.095 | (2.40) | 1.000 | (25.40) | 1725 (2573) |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
