LSHF Single Core 6491B Cable
450/750V
Cable Application
6491B HO7Z-R to BS7211 cable is suitable for power, conduit wiring, lighting networks, switchgear, control gear and internal wiring. The class 2 plain annealed copper conductor is LSHF (Low Smoke Halogen Free) insulated. Available in a variety of colours, the LSHF insulated non-armoured cable is designed for use in situations where smoke and acid gas emissions would be hazardous to people and equipment.
Technical Information
| Conductor Material: | Copper, BS EN 60228:2005 | |
| Conductor Shape: | Stranded circular | |
| Outer Sheath: | LSHF (Low Smoke Halogen Free) | |
| Colour: | 1.5mm & 2.5mm: | Brown, black, blue, grey, orange, green/yellow (earth),red and white |
| 4.0mm up to 630mm: | Brown, black, blue, grey and green/yellow (earth) | |
| Halogen Free: | Yes | |
| Lead Free: | Yes | |
| Rated Voltage Uo/U (Um): | 450/750V | |
| Installation Temperature: | Minimum: Maximum: | 0°C 60°C |
| Operating Temperature: | Minimum: Maximum: | -20°C 90°C |
| Short-circuit Maximum Conductor Temperature: | 250°C | |
| Installation Type: | Conduit wiring | |
| Flame Retardant: | IEC60332-1 | |
| Smoke Density: | IEC61034 | |
| Gases Toxicity: | Low toxicity to IEC60754 | |
| Gases Corrosivity: | Low IEC 60754-2 | |
| Bending Radius: | 1.5mm² up to 25mm² = 3 x Ø | |
| 35mm² up to 240mm² = 4 x Ø | ||
| 240mm² up to 630mm² = 6 x Ø | ||
| Part number | Cross section mm2 | Stranding mm | Approx weight kg/km | Approx overall diameter | Nylon A2 Gland size mm | Nom. Max. DC-resist conductor 20°C ohm/km | Current rating (enclosed in conduit) | |
| Single-phase a.c. or d.c. amp | Three-phase a.c. amp | |||||||
| 6491B1.5+ | 1 x 1.5 | 7/0.53 | 21 | 2.9 | 16 | 12.1 | 22 | 10 |
| 6491B2.5+ | 1 x 2.5 | 7/0.67 | 34.5 | 3.53 | 16 | 7.41 | 30 | 26 |
| 6491B4.0+ | 1 x 4.0 | 7/0.85 | 50 | 4.4 | 16 | 4.61 | 40 | 35 |
| 6941B6.0+ | 1 x 6.0 | 7/1.04 | 70 | 4.68 | 16 | 3.08 | 51 | 45 |
| 6491B10+ | 1 x 10 | 7/1.35 | 119 | 5.98 | 16 | 1.83 | 71 | 63 |
| 6491B16+ | 1 x 16 | 7/1.70 | 179 | 6.95 | 16 | 1.15 | 95 | 85 |
| 6491B25+ | 1 x 25 | 7/2.14 | 278 | 8.7 | 20 | 0.727 | 126 | 111 |
| 6491B35+ | 1 x 35 | 7/2.52 | 378 | 10.08 | 20 | 0.524 | 156 | 138 |
| 6491B50+ | 1 x 50 | 19/1.78 | 562 | 11.8 | 20 | 0.387 | 189 | 168 |
| 6491B70+ | 1 x 70 | 19/2.14 | 719 | 13.5 | 25 | 0.268 | 240 | 214 |
| 6491B95+ | 1 x 95 | 19/2.52 | 991 | 15.7 | 25 | 0.193 | 290 | 259 |
| 6491B120+ | 1 x 120 | 37/2.03 | 1,217 | 17.4 | 25 | 0.153 | 336 | 299 |
| 6491B150+ | 1 x 150 | 37/2.25 | 1,508 | 19.3 | 32 | 0.124 | 375 | 328 |
| 6491B185+ | 1 x 185 | 37/2.52 | 1,902 | 21.5 | 32 | 0.0991 | 426 | 370 |
| 6491B240+ | 1 x 240 | 61/2.25 | 2,486 | 24.6 | 32 | 0.0754 | 450 | 433 |
| 6491B300+ | 1 x 300 | 61/2.52 | 3,042 | 27.9 | 40 | 0.0601 | 573 | 493 |
| 6491B400+ | 1 x 400 | 61/3.85 | 3,953 | 30.8 | 40 | 0.047 | 683 | 584 |
| 6491B500+ | 1 x 500 | 61/3.20 | 4,957 | 33.8 | 50 | 0.0366 | 783 | 666 |
| 6491B630+ | 1 x 630 | 127/2.50 | 6,279 | 37.6 | 50 | 0.0283 | 900 | 764 |
electric wire
Specification Sizes and Technological Data
- Conductor: pure copper
- Rated volatge:450/750V, 300/500V
- We can also customize electrical wire and cable as your request
- Prompt delivery
- Factory direct sale
- The sample for sale
BV 300/500V | ||||
|
Nominal Section sqmm |
Number/ Diameter of Core mm |
Maximum Outer Diameter mm |
Reference Weight kg/km |
20Conductor resistance at 20 (Ω/km) |
0.5 |
1/0.80 |
2.4 |
8.5 |
36.0 |
0.75(A) |
1/0.97 |
2.6 |
11.1 |
24.5 |
0.75(B) |
7/0.37 |
2.8 |
12.0 |
24.5 |
1.0(A) |
1/1.13 |
2.8 |
13.9 |
18.1 |
1.0(B) |
7/0.43 |
3.0 |
15.0 |
18.1 |
Model |
Name |
BV |
Copper core PVC insulation power line electric wire |
BLV |
Aluminium core PVC insulation power line |
BVR |
Copper core PVC insulation flexible power line |
BVV |
Copper core PVC insulation PVC sheath round power line electric wire |
BVVB |
Copper core PVC insulation PVC sheath parellel power line |
BLVVB |
Aluminium core PVC insulation PVC sheath parellel power line |
BV-105 |
105 Copper core heat-resistance 105 PVC insulation electric wire |
electric wire
| | |
|

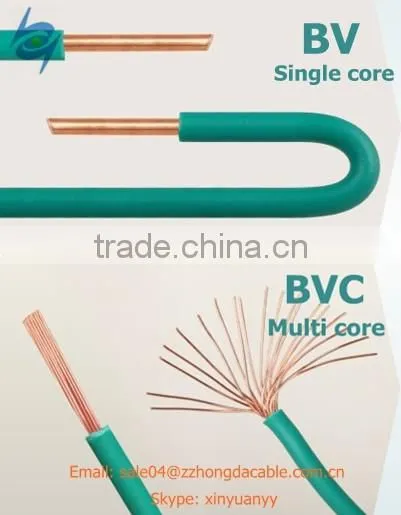

BV- PVC insulated copper electric wire, That is a single strand with a core of hard-line consists of a hard copper wire in a plurality of wire to wear tube, due to the high hardness, not easy to turn around, therefore, it is suitable for wall go straight road through the tube, not turning around tube. The common BV line color: red, yellow, green, black, white, two-color (yellow and green), brown. |

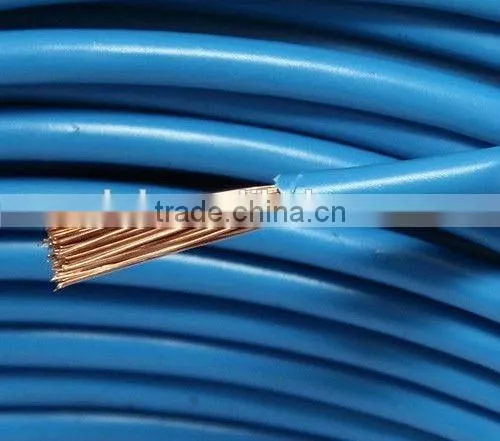

| BVR-PVC insulated soft copper electric wire, multi-conductor cord, BVR is used multi uniform thickness with copper wire, wire structure: PVC insulated + flex copper conductors, the only difference between BV and BVR is that the wire, R type wire conductor flex copper wire, which increase the number of conductors roots, reducing the diameter of a single conductor, single conductor diameter of less than 1 mm, so that BVR wire is very flex. Due to the low hardness, BV wire laying angle requirements more greatly reduced, when pipe trough threading and trunking is more convenient, suitable for turning wear tube. | |

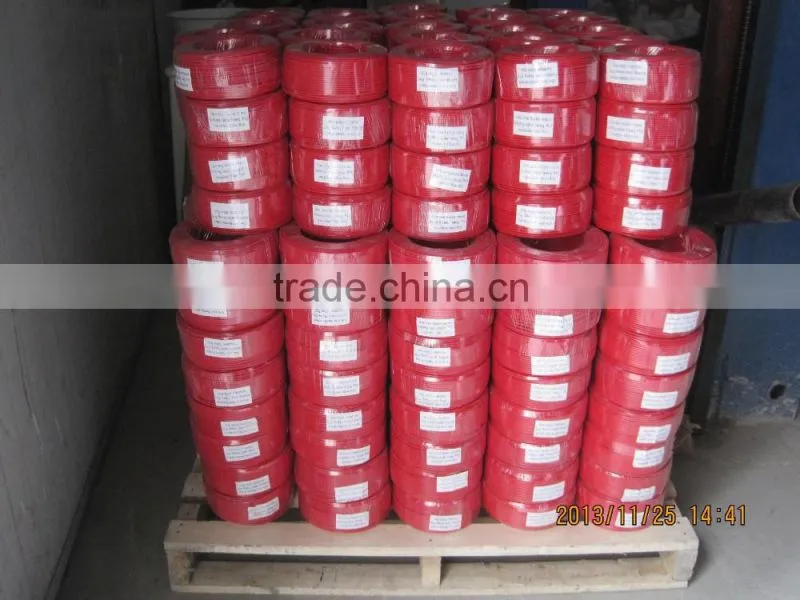

Package:
7. Company information
Zhengzhou hongda cable Co., Ltd.
Established Year:1999
Registered capital of RMB:5,000,000
Factory Area:300,000m2
Main products: ABC cable Areial bundle cable ,XLPE insulated power cable ,PVC insulated power cable ,electrical wire ,bare aluminum conductor(AAC AAAC ACSR )and so on
Main export county: USA, Philippines, Malaysia, Indonesia, Venezuela, Colombia, Mexico, Dominica, India, South Africa, Zambia, Kenya and so on.
electric wire
The BV Electrical wire production process
Any other information of LSHF cables pls contact with me:
Vivian Yuan | Sales Director
Zhengzhou Hongda Cable CO., LTD.
Landline: +86 371 6097 5616 | Fax: +86 371 6097 5616
Email: | Skype ID: xinyuanyy
Cellphone/WhatsApp/Wechat/ICQ: +86 158 3829 0725
Address: Houzhai Industrial Park, Erqi Zone, Zhengzhou, China,450000
electric wire
