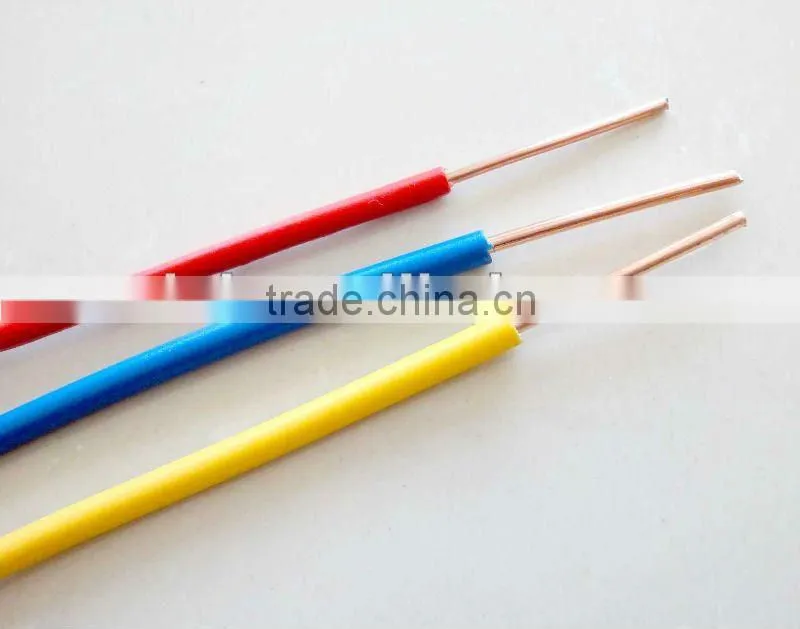

Help CenterRHH/RHW-2/USE 4 Core 6mm Flexible Cable Lowes Electrical Wire Prices House Wire
Related Products
-
All Size Quality Competitive Prices House Used Electrical WireUS$ 0.01 - 38MOQ: 5000 Meters -
4/0 AWG Copper Wire Black Color THW CableUS$ 0.1 - 15MOQ: 5 Kilometers
-
Single Conductor 600 V Secondary Type UD Cable Aluminum ConductorUS$ 0.1 - 5MOQ: 1 Kilometer
-
300/500V 450/750V Pvc Insulated Wires Copper Conductor Electric Cable and WiresUS$ 0.15 - 2MOQ: 1 Kilometer
-
H07V-R Cable With Copper/Aluminum PVC Insulation Flexible WiresUS$ 0.1 - 3MOQ: 5 Kilometers
THW / AWG pvc compound 3mm 4mm 10mm 25mm building house wiring cable wire price per meter
Applications

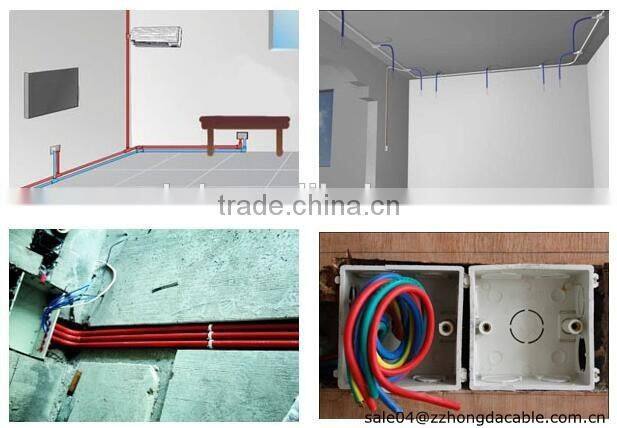

The RHH/RHW-2/USE cable is suitable for commercial and industrial application. It can be installed indoors and outdoors in both dry and wet places, such as cable conduit, underground pipeline, and some others. In addition, this heat resistant cable supports overhead installation and direct burial installation.
With the rated voltage of 600V, the RHH/RHW-2/USE cable is produced in compliance with NEC standard. Therefore, it can be used for continuous operation, emergency overload conditions, and short circuit conditions, with the maximum temperature of 90℃, 130℃, and 250℃, respectively.
Constructions
1. Stranded AA-8000 aluminum alloy conductor
2. Black cross-linked polyethylene (XLP) insulation sheath with good resistance to abrasion, moisture, heat and sunlight.
Standard
The RHH/RHW-2/USE cable is strictly produced according to UL Standard 44 (RHH or RHW-2) and UL Standard 854 (USE-2). In addition, the power cable conforms to Federal Specification A-A-59544 and the requirement specified in NEC.
Installation
For high efficiency, the single conductor cable can be paralleled or multiplexed. Meanwhile, pre-installation in conduit is also available.
Specifications of RHH/RHW-2/USE Cable
| Conductor Size (AWG or kcmil) | Insulation Sheath Thickness (mils) | Nominal O.D.(mils) | Allowable Ampacity * (Amps) | Approximate Net Weight Per 1000ft (lbs) | ||
| 60℃ | 75℃ | 90℃ | ||||
| 8 | 60 | 257 | 30 | 40 | 45 | 36 |
| 6 | 60 | 292 | 40 | 50 | 60 | 49 |
| 4 | 60 | 336 | 55 | 65 | 75 | 65 |
| 2 | 60 | 391 | 75 | 90 | 100 | 94 |
| 1 | 80 | 462 | 85 | 100 | 115 | 126 |
| 1/0 | 80 | 499 | 100 | 120 | 135 | 151 |
| 2/0 | 80 | 539 | 115 | 135 | 150 | 182 |
| 3/0 | 80 | 586 | 130 | 155 | 175 | 221 |
| 4/0 | 80 | 638 | 150 | 180 | 205 | 269 |
| 250 | 95 | 713 | 170 | 205 | 230 | 326 |
| 300 | 95 | 763 | 190 | 230 | 255 | 381 |
| 350 | 95 | 809 | 210 | 250 | 280 | 435 |
| 400 | 95 | 852 | 225 | 270 | 305 | 488 |
| 500 | 95 | 929 | 260 | 310 | 350 | 595 |
| 700 | 110 | 1100 | 310 | 375 | 420 | 829 |
| 750 | 110 | 1131 | 320 | 385 | 435 | 881 |
| 1000 | 110 | 1283 | 375 | 445 | 500 | 1145 |
Technical Parameter of wire cable electrical
| SIZE AWG MCM |
CROSS SECTION AL mm2 |
STRANDING number of wire x diametre mm |
INSULATION THICKNESS mm |
EXTERNAL DIAMETER mm |
TOTAL WEIGHT KG/KM |
| 20 | 0.52 | 1×0.813 | 0.76 | 2.33 | 9.81 |
| 18 | 0.82 | 1×1.02 | 0.76 | 2.54 | 13.16 |
| 16 | 1.31 | 1×1.29 | 0.76 | 2.81 | 18.1 |
| 14 | 2.08 | 1×1.63 | 0.76 | 3.15 | 26.1 |
| 12 | 3.31 | 1×2.05 | 0.76 | 3.57 | 38.3 |
| 10 | 5.26 | 1×2.59 | 0.76 | 4.11 | 57.4 |
| 8 | 8.34 | 1×3.26 | 1.14 | 5.54 | 95.2 |
| 14 | 2.08 | 7×0.62 | 0.76 | 3.38 | 27.8 |
| 12 | 3.31 | 7×0.78 | 0.76 | 3.86 | 40.1 |
| 10 | 5.26 | 7×0.98 | 0.76 | 4.46 | 59.9 |
| 8 | 8.37 | 7×1.23 | 1.14 | 5.97 | 105.2 |
| 6 | 13.3 | 7×1.55 | 1.52 | 7.69 | 170.4 |
| 4 | 21.15 | 7×1.96 | 1.52 | 8.92 | 255.5 |
| 2 | 33.62 | 7×2.47 | 1.52 | 10.45 | 388.9 |
| 1 | 42.36 | 7×2.78 | 2.03 | 12.4 | 482.9 |
| 1/0 | 53.49 | 19×1.89 | 2.03 | 13.51 | 621 |
| 2/0 | 67.43 | 19×2.12 | 2.03 | 14.66 | 778 |
| 3/0 | 85.01 | 19×2.39 | 2.03 | 16.01 | 934 |
| 4/0 | 107.2 | 19×2.68 | 2.03 | 17.46 | 1159 |
| 250 | 127 | 37×2.09 | 2.41 | 19.45 | 1368 |
| 300 | 152 | 37×2.29 | 2.41 | 20.85 | 1623 |
| 350 | 177 | 37×2.47 | 2.41 | 22.11 | 1876 |
| 400 | 203 | 37×2.64 | 2.41 | 23.3 | 2128 |
| 500 | 253 | 37×2.95 | 2.41 | 25.47 | 2631 |
| 600 | 304 | 37×3.23 | 2.79 | 28.19 | 3174 |
| 650 | 329 | 37×3.37 | 2.79 | 29.17 | 3345 |
| 700 | 355 | 37×3.49 | 2.79 | 30.01 | 3609 |
Based on 40℃ ambient air temperature.
The above information is from the following sources:
• IEC 60287 Electric cables – Calculation of the current rating (all Parts)
• IEC 60364 Electrical installations of buildings
• IEC 60228 Conductors of insulated wire cables

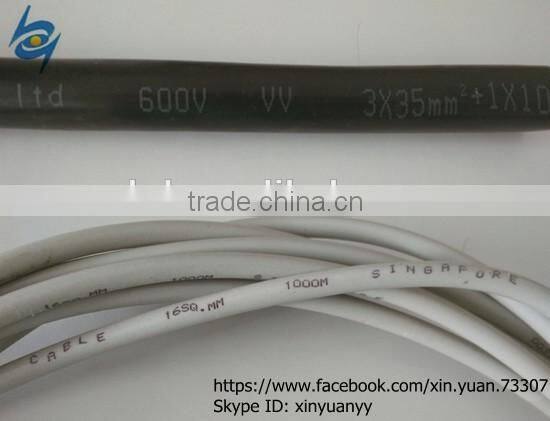

wire cable electrical Markings
All 2.5mm electric wire cable will carry the following items on the surface print:
Manufacturers Name
Electric wire cable
Voltage Designation
British Standard Number
Cross Sectional Area
No. of Cores
Type of wire cable
Date
NOTE: Items 1 to 4 will also be embossed on the Oversheath of the wire cable
Some special wire cable marking accept customized.
wire cable electrical Application:

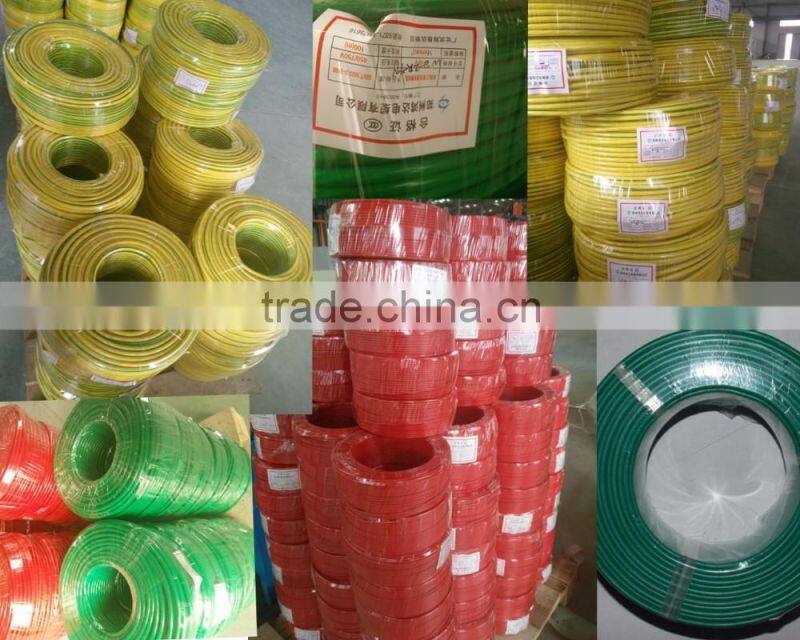

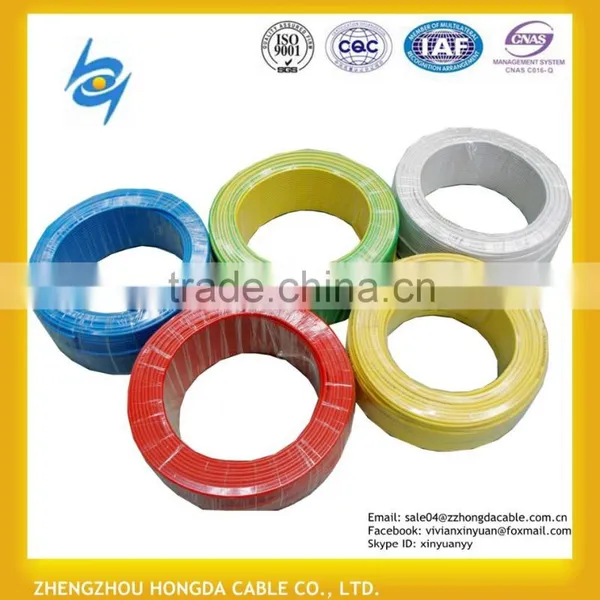

Packing : We packed wire cable electrical by roll, 100m/roll.or as your request for electric cable
Shipping : Within 7 working days or as to the buyers' request.
Company & Certification:

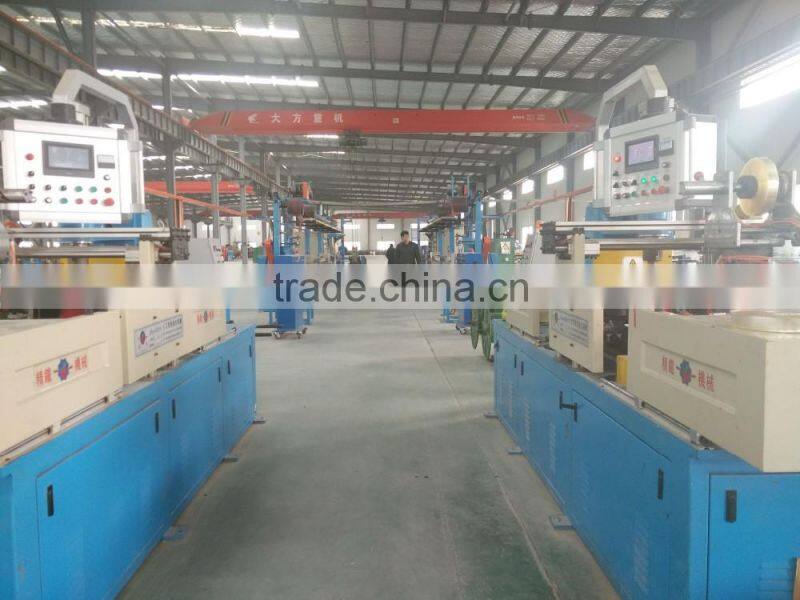

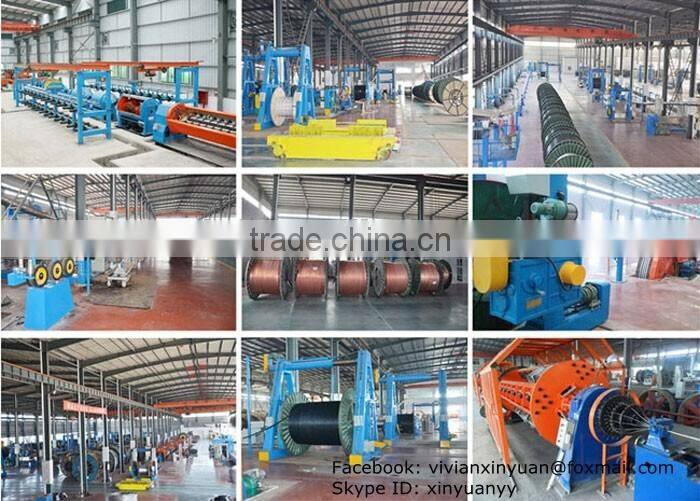

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Attractive design and various styles
5. Free issue:packaging list,invoice,CD installation
6. Powerful technology R&D team
7. Strict quality assurance system and perfect testing means
8. Advanced process equipment
9. Painted with powerful antiseptic Anticorrosion material paints
10. Delivery on time
11. Our roller coaster sales to Middle East,Africa,Russia,Southeast Asia, etc.
12.We have a good reputation in the overseas
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
