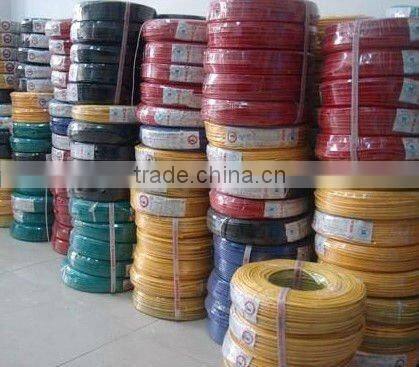

450/750V PVC Insulated Ground Wire

Name: 450/750V PVC Insulated Ground Wire
Brand: hongda
SKU: 113547089
Availability: InStock

Zhengzhou Hongda Cable Co., Ltd.

US$ 0.1 - 15 MOQ: 5 Kilometers

Key Specifications

Place of Origin:

Henan, China

Brand Name:

hongda

Model Number:

BV series ground wire

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name hongda

Model Number BV series ground wire

Type Insulated

Application Other, ground

Conductor Material Other, Copper, copper aluminum

Conductor Type Other, Stranded, solid or stranded

Insulation Material PVC

PVC ground wire copper or aluminum

competitive prices copper wire

1 Reponse in 12 hours
2 VDE,UL,CCC,ROHS,CE certificate
3 Free Samples
4 Professional QC inspection
5 More than 12 colours

1 Standard

GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227

2 Voltages U0/U:

450/750V300/500V300/300V.(600/1000V also available)

Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.

Impedance (ohms): 100±2ohm

3 Application:

Used in lots of places,such as electric equipment, household electrical appliances, small electrical tools,industrial used etc.

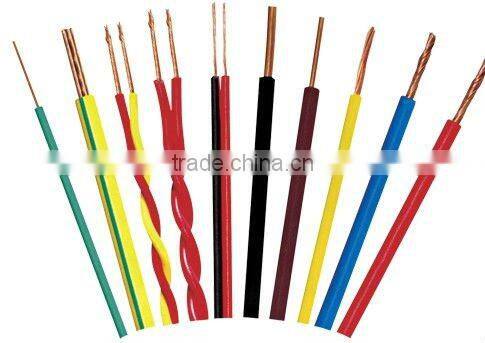

4 Model and Name

Model	Name
BV	Copper Core PVC Insulation Wire
BLV	Aluminum Core PVC Insulation Wire
BVR	Copper Core PVC Insulation Flexible Wire
BVV	Copper Core PVC Insulation PVC Sheath Round Wire
BVVB	Copper Core PVC Insulation PVC Sheath Flat Wire
BLVVB	Aluminum Core PVC Insulation PVC Sheath Flat Wire
BV-90	Copper Core Heat-resistance 105oC PVC Insulation

5 Specification Size and Technical Data

Nominal Area	Conductor Construction	Insulation Thickness	Approximate Overall Diameter
mm2	mm	mm	mm
1.5	7/0.52	0.7	3.0
2.5	19/0.41	0.8	3.7
4	19/0.52	0.8	4.2
6	19/0.64	0.8	4.8
10	49/0.52	1.0	6.7
16	49/0.64	1.0	7.8
25	98/0.58	1.2	10.1
35	133/0.58	1.2	11.1
50	133/0.68	1.4	13.0
70	189/0.68	1.4	15.4
95	259/0.68	1.6	17.5
120	361/0.64	1.8	19.6
150	432/0.64	1.8	22.1
185	513/0.68	2.0	24.9
