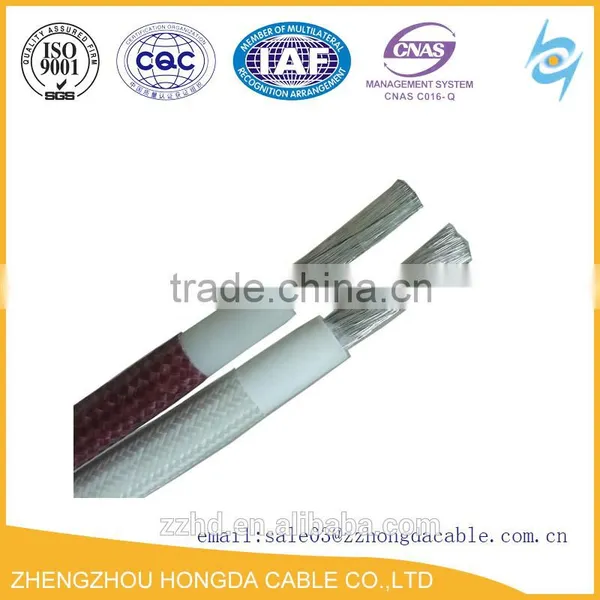

UL 3122 Fiberglass Braid Silicone Rubber Heat Resisting Cable/Wire
1.Rated Voltage:300V
2.Rated temperature:-60deg.C~+200deg.C

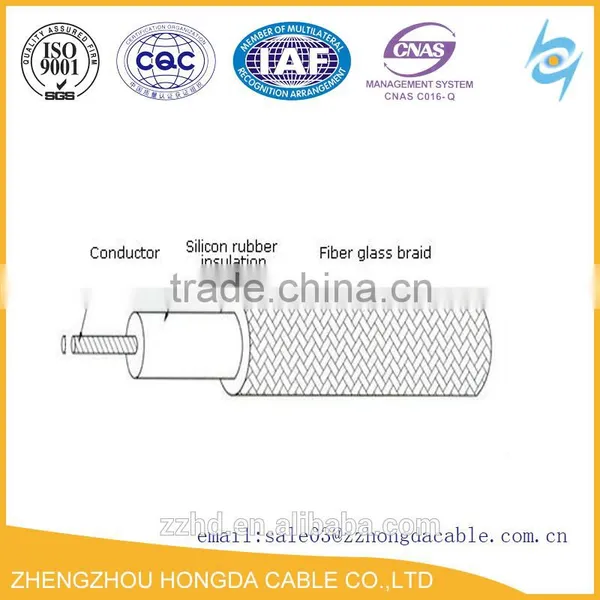

3.Conductor: multi-piece or single piece nickel-coated, tin-coated, silver-coated copper wire
4.Insulator: silicone rubber
5.Apply for high temperature environment such as electron, electrical household appliance, lamps and lanterns, combustion equipment
| AWG |
Construction No.*dia(mm) |
insulation thickness (mm) |
average overall dia(mm) |
conductor resist- ance at 20°c(Ω/km) |
| 16 | 7*0.50 | 0.39 | 2.58 | 14.6 |
| 17 | 32*0.20 | 0.39 | 2.42 | 18.3 |
| 18 | 7*0.40 | 0.39 | 2.28 | 23.2 |
| 20 | 7*0.32 | 0.39 | 2.04 | 36.7 |
| 22 | 7*0.26 | 0.39 | 1.86 | 59.4 |
| 24 | 7*0.20 | 0.39 | 1.68 | 94.2 |
| 26 | 7*0.16 | 0.39 | 1.56 | 150 |
| 28 | 7*0.12 | 0.39 | 1.14 | 239 |
| 30 | 7*0.10 | 0.39 | 1.08 | 381 |
Used for internal wiring of commercial, industrial,household ovens and lighting fixture.
Ideal for use in electric heaters and for equipment wiring as high temperature lead wire.
