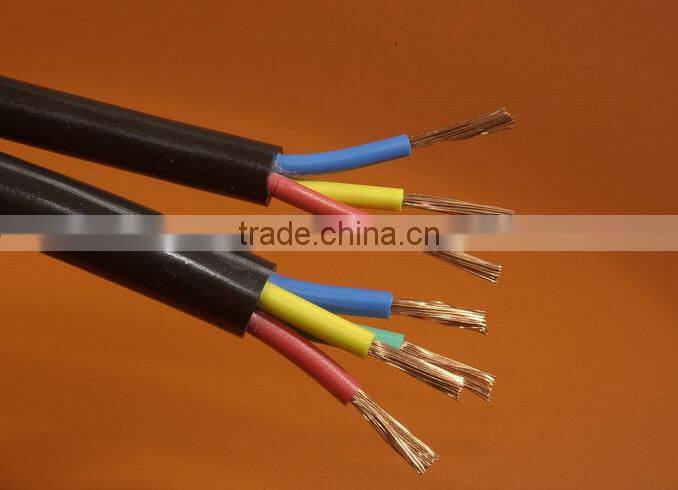

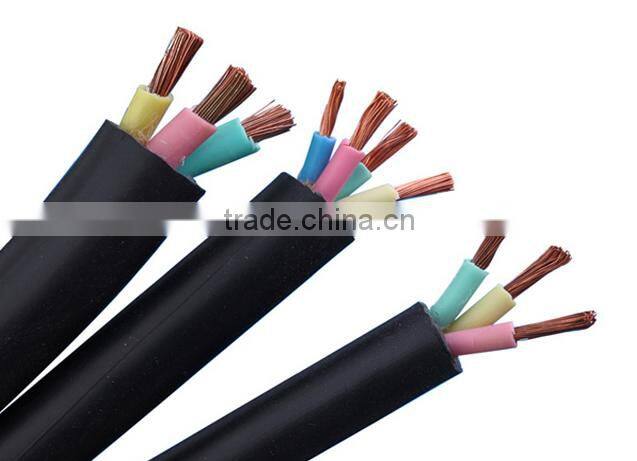

Rubber Insulated Copper Rubber Jacket Flexible Marine Cable
1. Products applications:
Rubber cable is suitable for connection with household appliances, electric tools and various mobile electrical equipments of rated voltage up to and including 450/750V.
2. Products standards: BS EN 50525-2-21
3. Products types & names:
--H05RR-F Ordinary rubber sheathed cord.
--H05RN-F Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord (1-4 cores).
--H07RN-F Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable.
4. Products characteristics:
--Long-term working temperature of cables: EPR insulated cables should not be higher than 65°C,EPT/EPDM insulated cables should not be higher than 90°C.
--Such cables are more flexible and easy to move electrical appliances.
| HAR Code | IEC | Description | Voltage Design | Cores |
| H05RR-F | 60245 IEC 53(YZ)/YZ | Oridinary rubber sheathed cord | 300/500V | 2~6 |
| H05RN-F | 60245 IEC 57(YZW)/YZW | Oridinary polychloroprene or other equivalent synthetic elastomer sheathed cord | 300/500V | 2~6 |
| H07RN-F | 60245 IEC 66(YCW)/YC | Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable | 450/750V | 1~5, 3+1/3+2/4+1 |
| H01N2-D | 60245 IEC 81(YH) | Rubber sheathed arc-welding electrode cable | 100/100V | 10-120 |
| 60245 IEC 82(YHF) | polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable | 100/100V | 10-120 |
