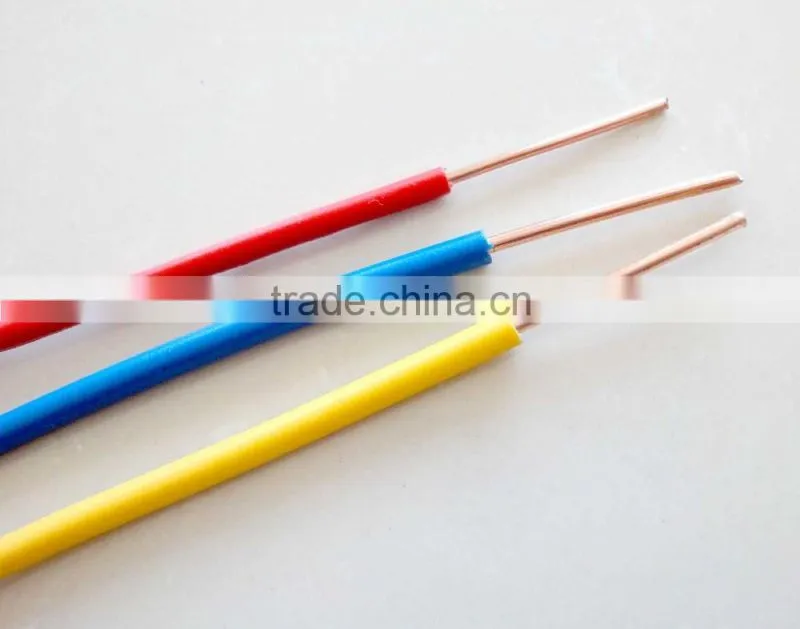

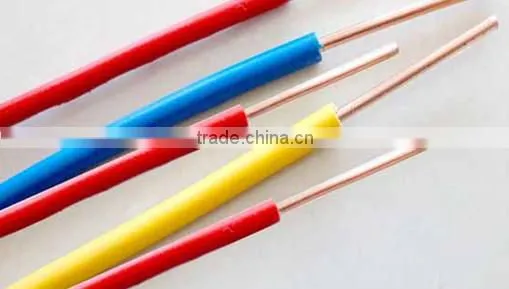

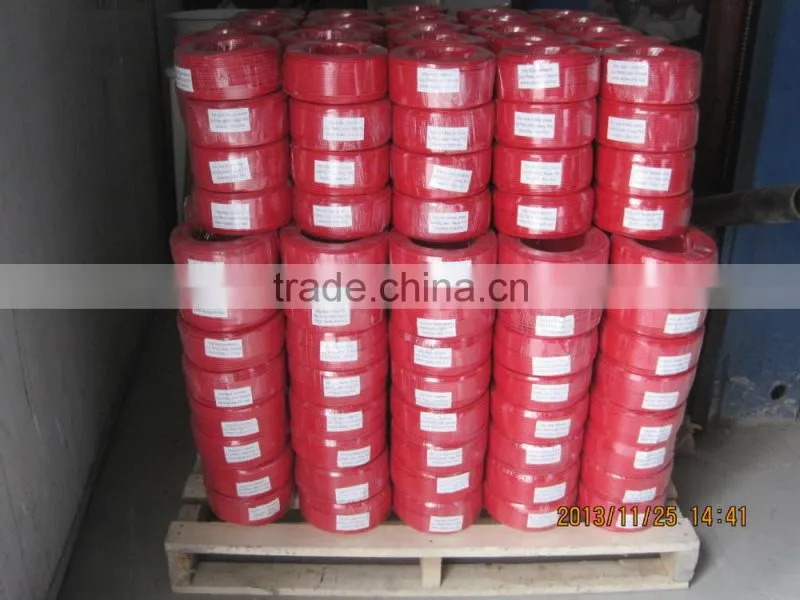

house wiring Electrical Wire cable
Description of electrical wire:
1. Rated temperature: 80°C
2. Rated voltage: 300V
3. Reference standard:UL Subject 758,UL 1581,2556 & CSA C22.2 No.210
4. Tinned or bare,stranded or solid copper conductor
5. Colour-coded PVC insulation
6. Uniform insulation thickness to ensure
7. Easy stripping and cutting

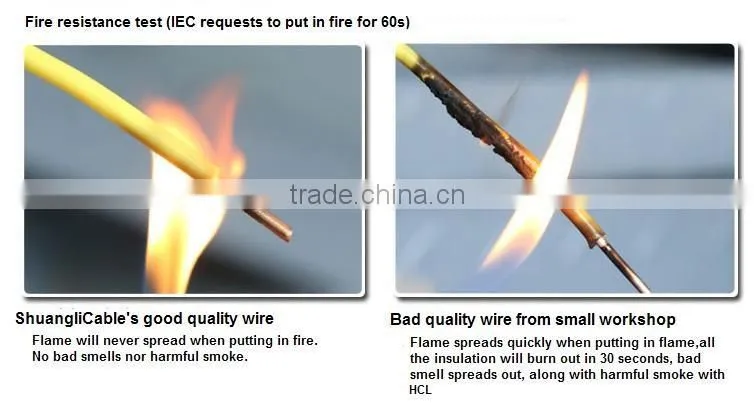

8. Passed UL VW-1 & CSA FT1 vertical flame test
9. Resistant to acids,oil,alkali,noisture and fungus
10.Other technical parameters of this product can be found in the below form in blue.
Application of electrical wire::
• Internal wiring of appliances.
High quality ,good price and small MOQ.
All colours are available
OEM are welcome
We can make all kinds of electronic wire,electrical wire: per your request
The technical parameters of the UL1007 hook-up wire electrical wire: are as below for your referece:
| UL Style & CSA Type | Conductor | Insulation Thickness | Overall Diameter | Standard Put-up | Conductor Resistance at 20°C | ||
| AWG | Comps.n.x/φmm | mm | mm | Ft/coil | M/coil | ohm/kft | |
| UL1007 CSA T1(TR-64) (Stranded) | 30 | 7/0.102 | 0.38 | 1.10±0.10 | 2000 | 610 | 114.40 |
| 28 | 7/0.127 | 1.20±0.10 | 72.00 | ||||
| 26 | 7/0.160 | 1.30±0.10 | 45.20 | ||||
| 24 | 11/0.160 | 1.40±0.10 | 29.30 | ||||
| 22 | 17/0.160 | 1.60±0.10 | 16.70 | ||||
| 20 | 21/0.178 | 1.80±0.10 | 10.50 | ||||
| 18 | 34/0.178 | 2.10±0.10 | 6.64 | ||||
| 16 | 26/0.254 | 2.40±0.10 | 4.18 | ||||
| UL1007 CSA T1(TR-64) (Top-coated) | 26 | 7/0.160 | 0.38 | 1.30±0.10 | 2000 | 610 | 42.60 |
| 24 | 7/0.195 | 1.40±0.10 | 26.20 | ||||
| 22 | 7/0.254 | 1.60±0.10 | 16.70 | ||||
| 20 | 7/0.310 | 1.80±0.10 | 10.40 | ||||
| 18 | 7/0.390 | 2.10±0.10 | 7.06 | ||||
| 16 | 7/0.488 | 2.30±0.10 | 4.82 | ||||
| UL1007 CSA T1(TR-64)(Solid) | 26 | 1/0.405 | 0.38 | 1.25±0.10 | 2000 | 610 | 43.53 |
| 24 | 1/0.511 | 1.35±0.10 | 27.25 | ||||
| 22 | 1/0.645 | 1.50±0.10 | 16.50 | ||||
| 20 | 1/0.813 | 1.65±0.10 | 10.30 | ||||
| 18 | 1/1.024 | 1.85±0.10 | 6.52 | ||||
| 16 | 1/1.291 | 2.15±0.10 | 4.10 | ||||
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
If you have another question, pls feel free to contact us
