HOT SALE Copper Electric Wire Cable 2 4 6 8 10 12 14 16 18 32 Guage

Name: HOT SALE Copper Electric Wire Cable 2 4 6 8 10 12 14 16 18 32 Guage
Brand: Hongda
SKU: 113539983

US$ 0.2 - 100 MOQ: 5 Meters

Key Specifications

Place of Origin:

Henan, China

Brand Name:

Hongda

Model Number:

Electric wire

Zhengzhou Hongda Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name Hongda

Model Number Electric wire

Type Insulated

Application Underground

Conductor Material Copper

Conductor Type Stranded

Insulation Material PVC

Product Description

Provide electricity, communications, laying in a fixed place wire

sample Figure
Uses: This product is suitable for AC rated voltage 450/750V and below fixed laying power plant.
Use of features: 1. The allowable long-term working temperature of cable: BV-105 ---- should not exceed 105 - other models ----- should not exceed 70 .
2. Cable laying temperature of not less than 0 : Allow bending radius:
Cable diameter (D) is less than 25mm, to allow bending radius should be not less than 4D, cable diameter (D) is 25mm, and above, to allow bending radius should be not less than 6D
, model. The name of laying methods

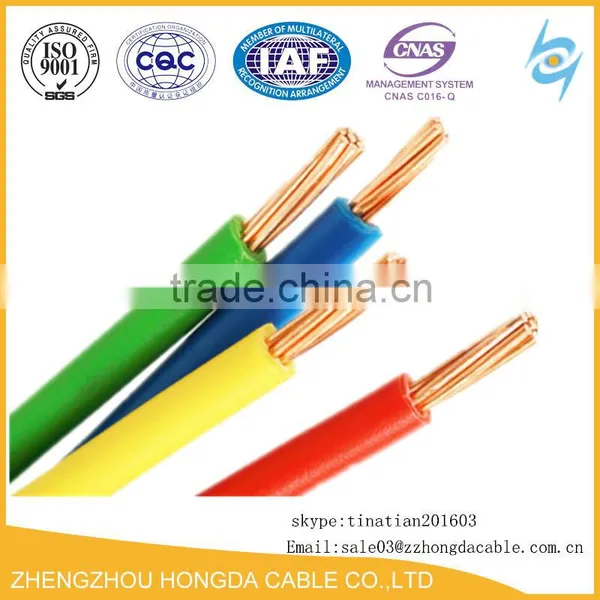

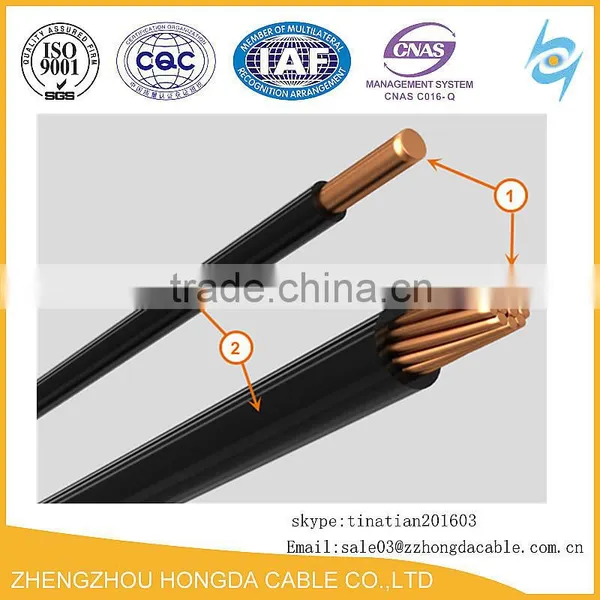

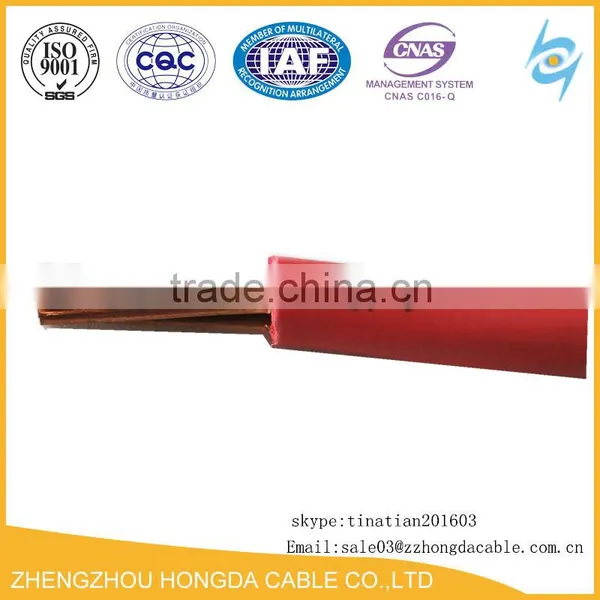

PVC Insulated BV Wire
Specifications. Measurements and technical parameters: BV, BLV (300/500V 450/750V)
Sectionmm2	Conductive wire core	Insulation Thickness mm	The average outer diameter mm	At 20 Conductor resistance Ω / km less than		70 , the minimum insulation resistance MΩ / km
Sectionmm2	Root number / diameter, mm	Insulation Thickness mm	The average outer diameter mm	copper	aluminum	70 , the minimum insulation resistance MΩ / km	copper	aluminum
1	1/1.13	0.6	2.8	18.1		0.011	13.7	---
1.5	1/1.38	0.7	3.3	12.1		0.011	20.1	---
2.5	1/1.78	0.8	3.9	7.41	11.8	0.01	32	16.52
4	1/2.25	0.8	4.4	4.61	7.39	0.0071	46.8	22.1
6	1/2.70	0.8	4.9	3.08	4.91	0.007	66.5	29.5
10	7/1.35	1	7	1.83	3.68	0.0065	116	54.3
16	7/1.70	1	8	1.15	1.91	0.005	176.5	77.3
25	7/2.14	1.2	10	0.727	1.2	0.005	277.7	119.9
35	7/2.52	1.2	11.5	0.524	0.868	0.004	375	156.1
50	19/1.78	1.4	13	0.384	0.641	0.0045	501.3	205.4
70	19/2.14	1.4	15	0.268	0.443	0.0035	706.5	278.8
95	19/2.52	1.6	17.5	0.193	0.32	0.0035	974.4	383.2
120	37/2.25	1.6	19	0.153	0.253	0.0032	1209.8	466.7
