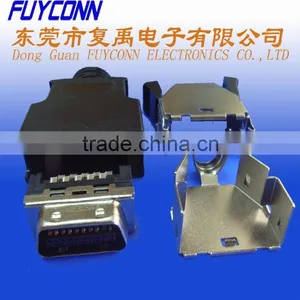

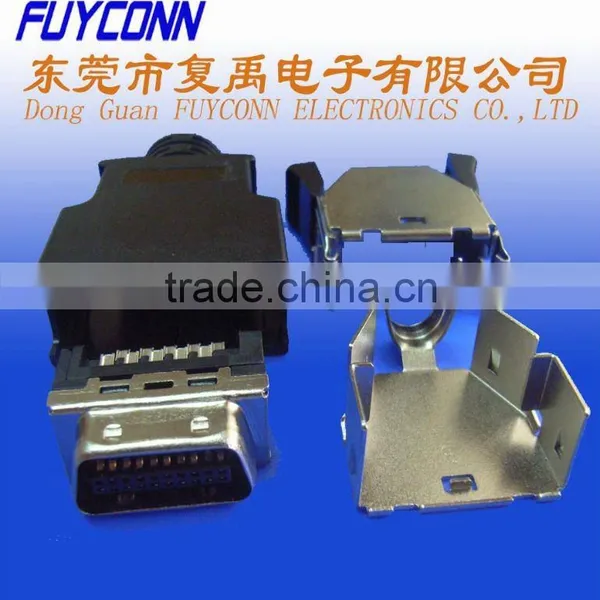

AMP connector SCSI CENTRONIC CONNECTOR FOR ROUND CABLE TYPE MALE

Specifications

SCSI CONNECTOR TYPE WITH MATEL AND
For Round Cable Adapter
Contact Type:Plug
Insulator Color:Black
Compliant:UL 94V-O

Mechanical Specification

1)Product Type Features:

Connector Classification :SCSI Connector

Product Name :SCSI Connector for Round Cable Type

Connector Model : FUYSCSI004

Contact Type : Plug

Special Function:

A:Standard Through Hole (Dia.3.05mm)

B: With #4-40 thread insert

 2)Terminal and Shell

Contact Plating:Phosphor Bronze or Gold Plated

A:15U" ,B:30U"

Insulator Material :Glass -fiber Thermoplastic

Compliance: UL 94V-0
Contact Material :High Strengh Copper Alloy

Contact Plating: Phosphor Bronze or Glod

NO.of Contact: 20 pin
Shell : Matel Cover and All Plastic

3)ELECTRICAL
Current Rating :5AMP
Dielectric  With standing : AC 500Vmin(for 1 minute)
Insulation Resistance : 1000Mn min.(at 500v  DC)
Contact Resistance : 15Mn max.mated
Working Temperature : -55 °C to +105 °C



4)Advantage

A:These connectors are suitable for compact requirement of modern peripheral equipment.

B:Compatible to small form factor specification.

C:High reliability
