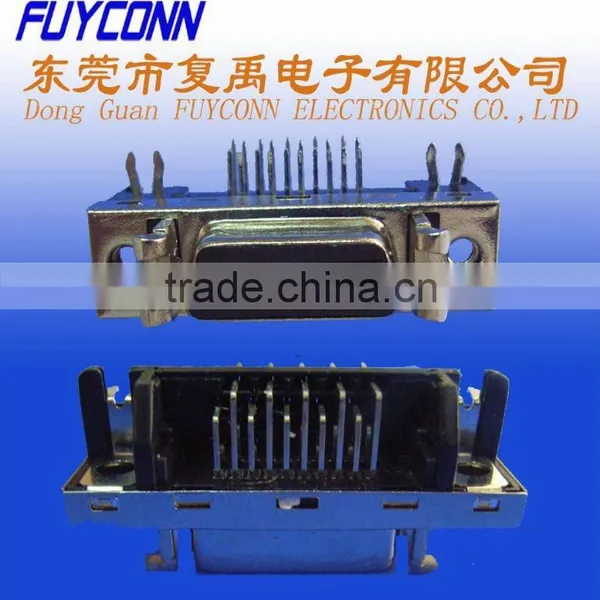

Help Center20 PIN SCSI PCB RIGHT ANGEL SOLDER CONNECTOR CLASSIC TYPE FEMALE
Related Products
-
AMP 36PIN SCSI CONNECTOR FOR ROUND CABLE TYPE MALENegotiableMOQ: 2000 Pieces -
SCSI PCB RIGHT ANGEL SOLDER CONNECTOR CLASSIC TYPE FEMALENegotiableMOQ: 2000 Pieces
-
CD-ROM Drives System 26 Way SCSI Solder Assemble Male Type Connector Approved SGS/UL E 346172NegotiableMOQ: 1 Piece
-
36 Way SCSI Solder Assemble Male Type Connector Approved SGS/UL E 346172NegotiableMOQ: 1 Piece
-
High-performance 14 Way SCSI PCB Right Angle Female Type Connector Approved SGS/UL E 346172NegotiableMOQ: 1 Piece
Specifications
SCSI PCB RIGHT ANGEL CONNECTOR TYPEContact Type:Receptacle
20P SCSI PCB Connector
Insulator Color:Black
Compliant:UL 94V-O
Mechanical Specification
1)Product Type Features:
Connector Classification :SCSI Connector
Product Name :SCSI PCB Right Angel Solder Connector Classic Type
Connector Model : FUYSCSI005
Contact Type : Female
Special Function:
A:Standard Through Hole (Dia.3.05mm)
B: With #4-40 thread insert
2)Terminal and Shell
Contact Material :High Strengh Copper Alloy
Contact Plating:Phosphor Bronze or Gold Plated
A:15U" ,B:30U"
Insulator Material :Glass -fiber Thermoplastic
Compliance: UL 94V-0
NO.of Contact:20 pin
Shell : Tin Plate and All Plastic
3)ELECTRICAL
Current Rating :5AMP
Dielectric With standing : AC 500Vmin(for 1 minute)
Insulation Resistance : 1000Mn min.(at 500v DC)
Contact Resistance : 15Mn max.mated
Working Temperature : -55 °C to +105 °C
4)Advantage
A:These connectors are suitable for compact requirement of modern peripheral equipment.
B:Compatible to small form factor specification.
C:High reliability.
