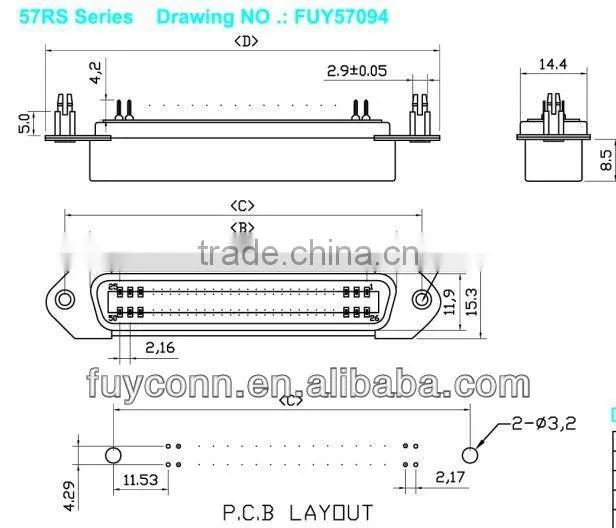

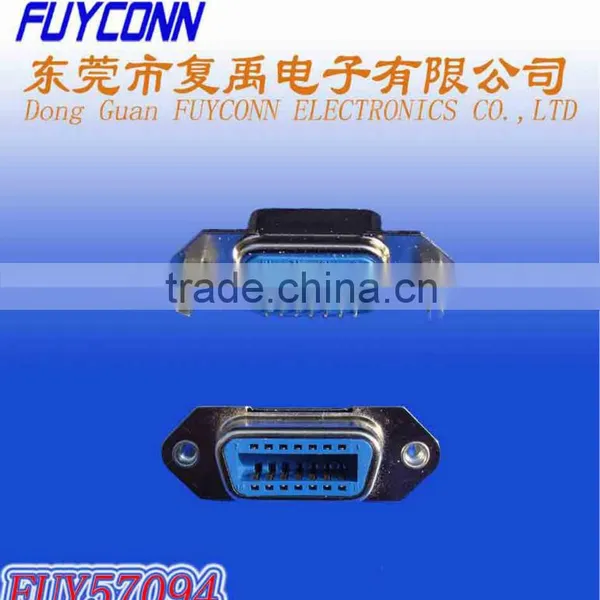

Help Center57 Series Female Receptacle Type DDK Solder DIP Termination Centronics Connector PCB Straight Mount
Related Products
-
Centronics Connector Female PCB Mounting Solder DIP Termination Socket Type With Board Lock and Spring LatchesUS$ 1 - 2MOQ: 1000 Pieces -
DDK PCB DIP Straight Female Type Centronics Connector Receptacle Socket With Spring LatchesUS$ 0.8 - 2MOQ: 1000 Pieces
-
57 Series Centronics Female DIP Socket Connector PCB Straight MountingUS$ 0.8 - 2MOQ: 1000 Pieces
-
57 Series Centronics Plug Male PCB Mount DDK DIP Type Header ConnectorUS$ 0.6 - 2MOQ: 1000 Pieces
-
Centronic Champ DDK Male Plug PCB Straight DIP Type Header ConnectorUS$ 1 - 2MOQ: 1000 Pieces
Specifications
Item No. : FUY570941,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features
Product Type: Connector
Connector Modul: FUY57094
Product Line:CENTRONIC/CHAMP
Connector Style: Female
Orientation:Standard Orientation
PCB Mount Style: Straight
Mechanical Attachment
Panel Attachment Style: Pan Holes Rear Revit Insert
Plate Mertial:Thermoplastic
Com Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)

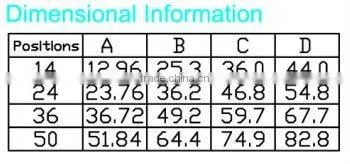

Number of Position: 14,24, 36, 50 pins
PCB Mount Retention Type: Straight
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Receptacle
Housing Material: Thermoplastic-GF
UL Flammability Rating: UL 94-VO
Special Function
A:Pan Holes (10.7*5.0)
B:Rear Revit Insert
C:"Z" Fork Nut (M 4.2mm Thread)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Compliance
UL-94-VO,ROHS,ISO 9001:2008,ISO 14001:2004
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
