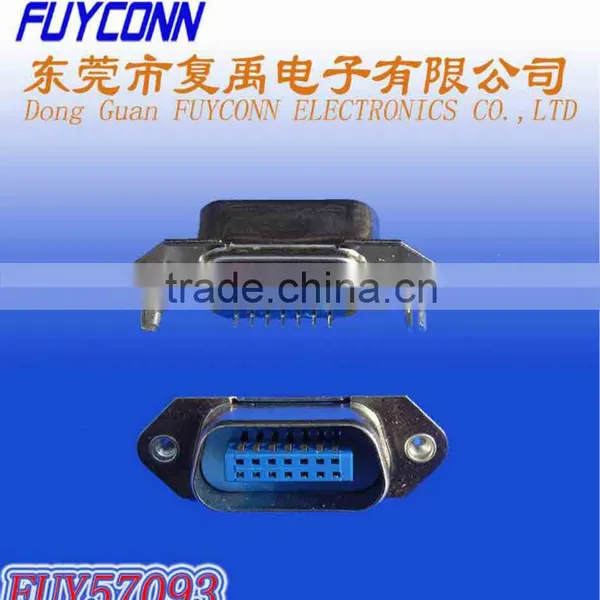

Help CenterCentronic Champ DDK Male Plug PCB Straight DIP Type Header Connector
Related Products
-
Centronics Connector PCB DIP Stright Angle Male Type HeaderUS$ 1 - 2MOQ: 1000 Pieces -
Centronics DDK Ribbon Female PCB Straight Solder DIP Termination ConnectorUS$ 1 - 2MOQ: 1000 Pieces
-
57 Series Centronics PCB Straight Female DDK Connector Rear Riveting Board LockUS$ 1 - 2MOQ: 1000 Pieces
-
Centronics Female 57GE DDK PCB Straight Solder DIP Termination ConnectorUS$ 1 - 2MOQ: 1000 Pieces
-
Centronics Male Plug Straight PCB Solder DIP Termination Parallel Port ConnectorUS$ 1 - 2MOQ: 1000 Pieces
Specifications
Item No.: FUY570931,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features:
Product Type: Connector
Connector Modul: FUY57093
Product Line:CENTRONIC/CHAMP
Connector Style: Male
Orientation:Standard Orientation
PCB Mount Style: Straight
Mechanical Attachment
Panel Attachment Style:Rear Revit Insert
Core Material:Thermoplastic
Terminal Related Features
Solder Tail Contact Plating: Tin
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,50,64 pins
PCB Mount Retention Type: Straight
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Plug
Housing Material: Thermoplastic
UL Flammability Rating: UL 94-VO
Special Function
A:90°C DIP Pan Holes type
B:Rear Revit Insert(10.7*5.0)
C:"Z" Fork Nut (M 4.2mm Thread)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
