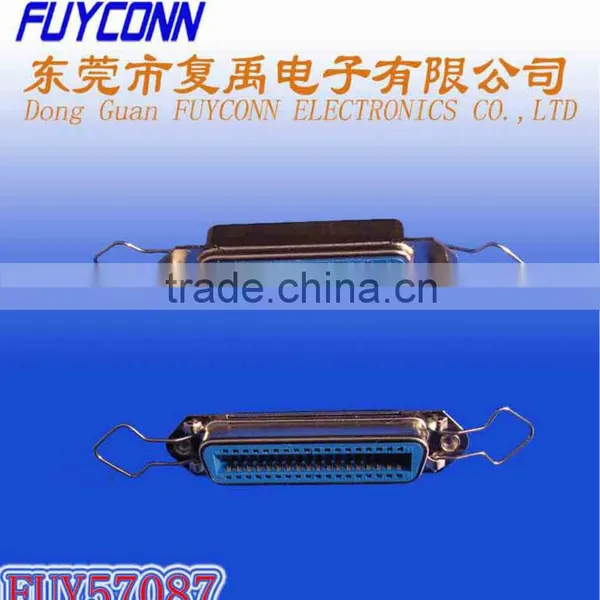

Centronics Connector Female PCB Mounting Solder DIP Termination Socket Type with Board Lock and Spring Latches
- 1000000 Piece / Pieces per Month
- Shenzhen / Guangzhou
- T/T Credit Card
- DDK PCB DIP Straight Female Type Centronics Connector Receptacle Socket with Spring Latches
- 57 Series Centronics Female DIP Socket Connector PCB Straight Mounting
- 57 Series Centronics Plug Male PCB mount DDK DIP Type Header Connector
- Centronic Champ DDK Male Plug PCB Straight DIP Type Header Connector
- Centronics Connector PCB DIP Stright Angle Male Type Header
- Centronics DDK Ribbon Female PCB Straight Solder DIP Termination Connector
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FUYCONN | Model Number: | FUY57087 |
Type: | Other, 57 Series Centronics Connector, Straight PCB Connector | Application: | PCB | Gender: | Female |
Product Description

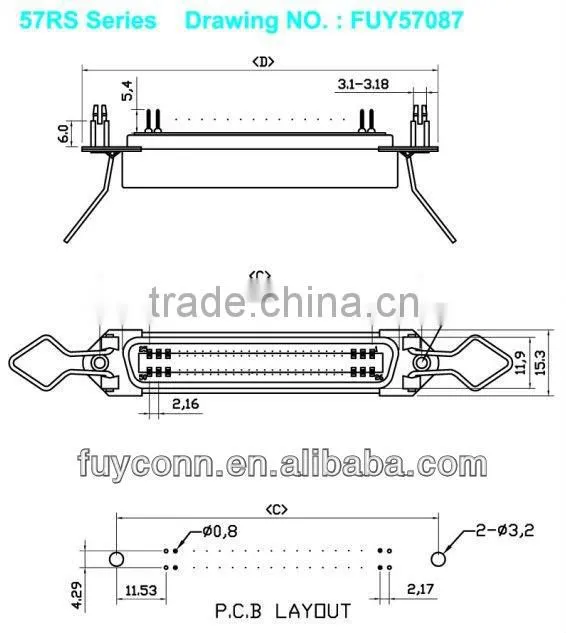

Specifications
Item NO.: FUY570871,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features:
Product Type: Connector
Connector Modul: FUY57087
Product Line:CENTRONIC/CHAMP
Connector Style: Female
Orientation: Standard Orientation
PCB Mount Style: Straight
Mechanical Attachment
Panel Attachment Style: Hex Rear Revit Insert
Plate Mertial:Thermoplastic
Com Material:Thermoplastic
Shield: Stainless Steel
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50 pins
PCB Mount Retention Type: Straight
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Socket
Housing Material: Thermoplastic-GF
UL Flammability Rating: UL 94-VO
Special Function
A:90°C DIP Hex Rear Revit Insert(11.7mm) type
B:"Z" Fork Nut (M 5.4mm Thread)
C: With Bail Lock
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
1, VDSL Teleccom Equipment | |
2, Computer Peripherals | |
3, Communication Equipment | |
4, PCB Board | |
5, Cable to Panel | |
6, Cable to cable | |
7,Computer terminal | |
8,Telemetering | |
9,Test Equipment | |
10, Printer |
Technology Parameters
