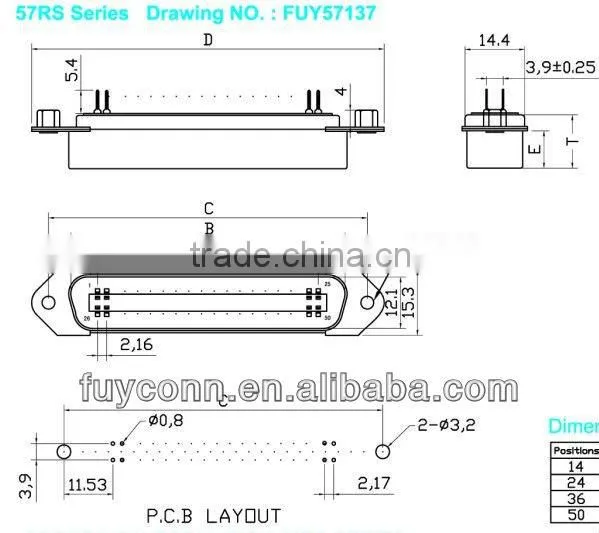

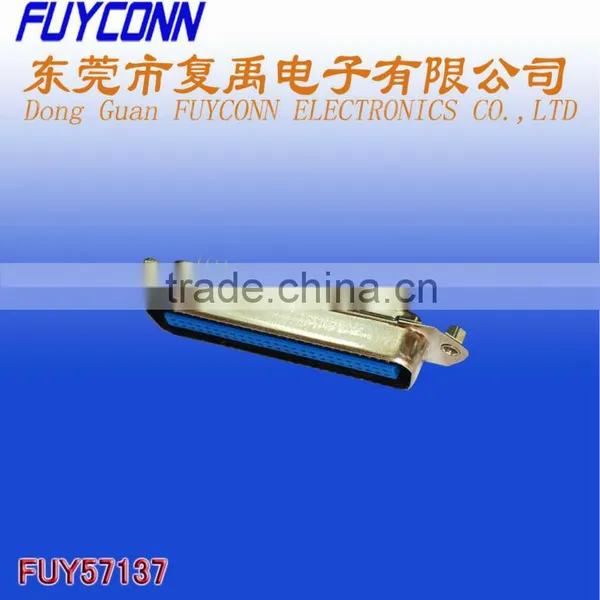

Help Center57 Series Centronics Plug Male PCB Mount DDK DIP Type Header Connector
Related Products
-
Centronic Champ DDK Male Plug PCB Straight DIP Type Header ConnectorUS$ 1 - 2MOQ: 1000 Pieces -
Centronics Connector PCB DIP Stright Angle Male Type HeaderUS$ 1 - 2MOQ: 1000 Pieces
-
Centronics DDK Ribbon Female PCB Straight Solder DIP Termination ConnectorUS$ 1 - 2MOQ: 1000 Pieces
-
57 Series Centronics PCB Straight Female DDK Connector Rear Riveting Board LockUS$ 1 - 2MOQ: 1000 Pieces
-
Centronics Female 57GE DDK PCB Straight Solder DIP Termination ConnectorUS$ 1 - 2MOQ: 1000 Pieces
Specifications
Item No.: FUY571371,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |

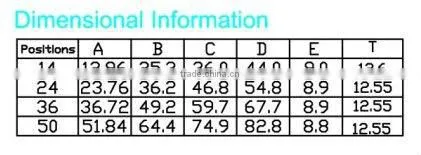

4) Parameters
