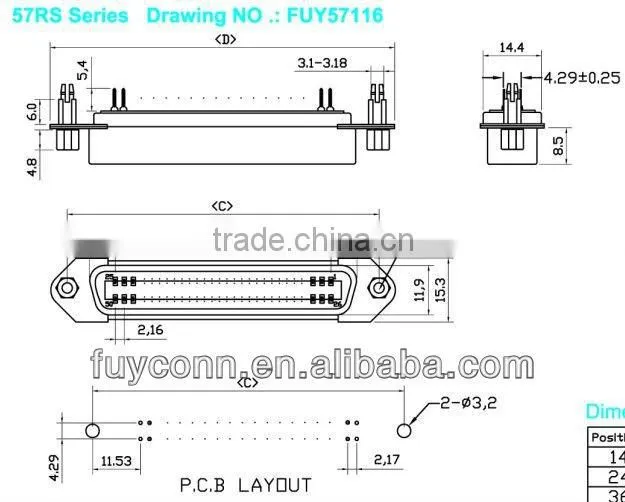

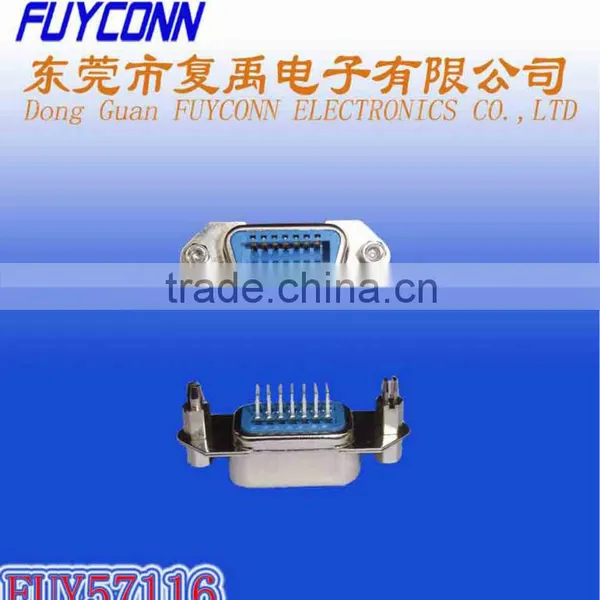

Help CenterFemale PCB Straight Mounting DIP Type DDK Centronic Connector With Board Lock and Jack Screws
Related Products
-
57 Series Female Receptacle Type DDK Solder DIP Termination Centronics Connector PCB Straight MountUS$ 1 - 2MOQ: 1000 Pieces -
Centronics Connector Female PCB Mounting Solder DIP Termination Socket Type With Board Lock and Spring LatchesUS$ 1 - 2MOQ: 1000 Pieces
-
DDK PCB DIP Straight Female Type Centronics Connector Receptacle Socket With Spring LatchesUS$ 0.8 - 2MOQ: 1000 Pieces
-
57 Series Centronics Female DIP Socket Connector PCB Straight MountingUS$ 0.8 - 2MOQ: 1000 Pieces
-
57 Series Centronics Plug Male PCB Mount DDK DIP Type Header ConnectorUS$ 0.6 - 2MOQ: 1000 Pieces
Specifications
Item No. : FUY571161,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features:
Product Type: Connector
Connector Modul: FUY57116
Product Line:CENTRONIC/CHAMP
Connector Style: Female
Orientation:Standard Orientation
PCB Mount Style: Straight
Mechanical Attachment
Panel Attachment Style: Hex Rear Revit Insert and Front Screw Lock
Com Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)

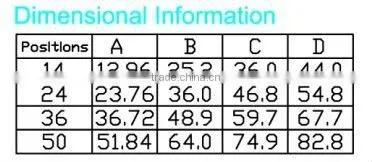

Number of Position: 14,26,34,50pins
PCB Mount Retention Type: Straight
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Socket
Housing Material: Thermoplastic-GF
UL Flammability Rating: UL 94-VO
Special Function
A:180° DIP Hex Front Screw Lock(4.75*10.5*5.0mm)
B:Rear Revit Insert(4.75*6.0*11.7mm)
C:"Z" Fork Nut
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
