Help Center14 Pin 24 Pin 36 Pin 50 Pin and 64 Pin Configurations Combo Connector Female Type PCB Mount Right Angle
Related Products
-
Centronics Male Plug Communication Connector PCB Mount Right AngleUS$ 1 - 2MOQ: 1000 Pieces -
Female Centronics PCB Mount Right Angle 57 Series DDK 40 Type Receptacle Connector With Bail LockUS$ 1 - 2MOQ: 1000 Pieces
-
57 Series Centronics Female 90 Degree Angle Telecom Connector PCB Mounting With Spring LatchesUS$ 1 - 2MOQ: 1000 Pieces
-
Centronics PCB Right Angle Female Socket Connector With Jack ScrewUS$ 1 - 2MOQ: 1000 Pieces
-
2.16mm Pitch Female Telecom Connector PCB Mount Right AngleUS$ 1 - 2MOQ: 1000 Pieces
Specifications
Item No.: FUY571491,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female

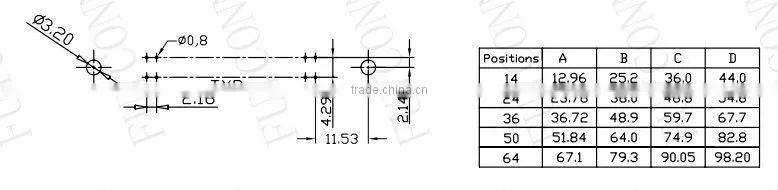

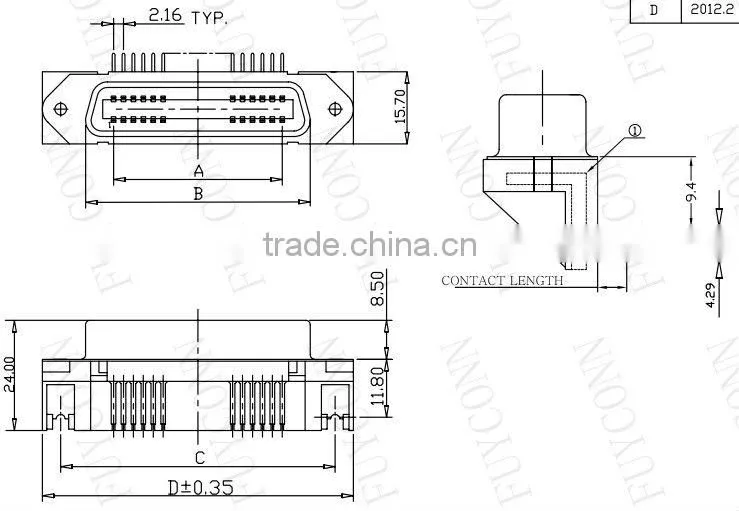

4. Certerline :2.16mm(0.85 in)
5. Number of Position: 36 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard

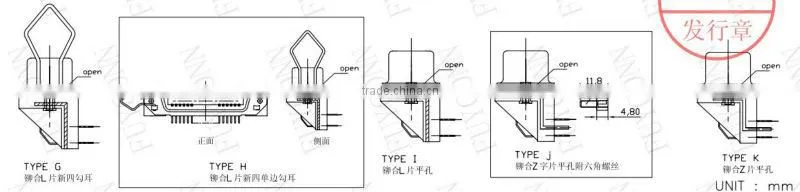

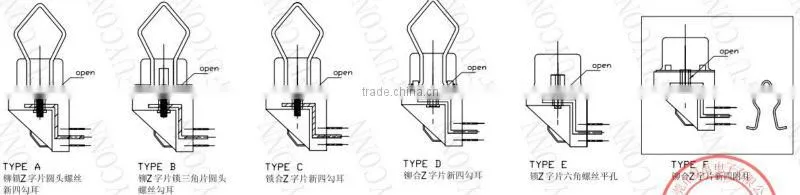

12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
4) Technology Parameters
