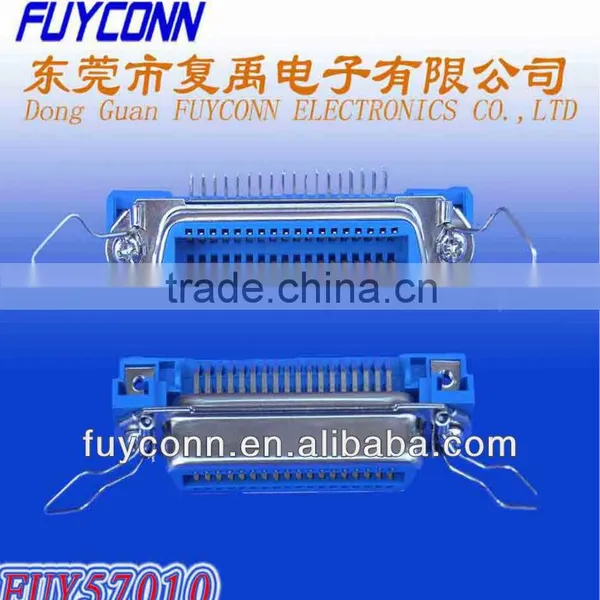

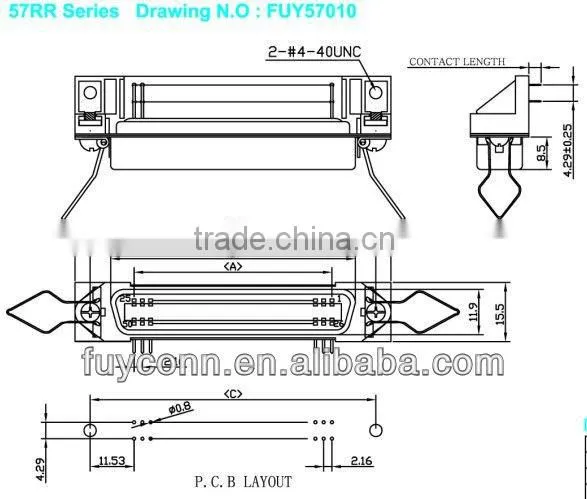

Help Center57 Series Centronics Female 90 Degree Angle Telecom Connector PCB Mounting With Spring Latches
Related Products
-
Centronics PCB Right Angle Female Socket Connector With Jack ScrewUS$ 1 - 2MOQ: 1000 Pieces -
2.16mm Pitch Female Telecom Connector PCB Mount Right AngleUS$ 1 - 2MOQ: 1000 Pieces
-
57CN Centronic Connector Right Angle PCB 2.16mm Pitch Female HeaderUS$ 1 - 2MOQ: 1000 Pieces
-
57 Series PCB Right Angle Solder Termination Centronics Connector Female Receptacle TypeUS$ 1 - 2MOQ: 1000 Pieces
-
DDK DIP Female Right Angle PCB Mounting Receptacle Type Centronics Connector Reversed DirectionUS$ 1 - 2MOQ: 1000 Pieces
Specifications
Item No.: FUY570101,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features:
Product Type: Connector
Product Line:CENTRONIC
Item No.:FUY57010
Connector Style: Female
Orientation:Standard Orientation
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Mechanical Attachment
Panel Attachment Style: Screw Lock
Plate Mertial:Gold Plated
Core Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)

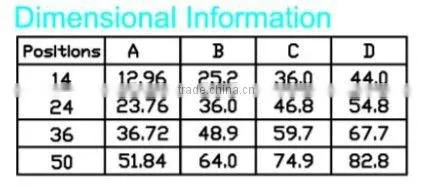

Number of Position: 14,24,36,50pin
PCB Mount Retention Type: Right Angle
Contact Plating: Gold (A:5u" ,B15u",C:15u",D:30u")
Contact Material: High Strength Copper Alloy
Housing Features
Connector Style: Socket
Housing Material: Thermoplastic-GF
UL Flammability Rating: UL 94V-O
Special Function
A:90°C DIP Round Head screw(4*7) type
B:With Bail Lock
C:"L" Shape (Both #4-40 UNC Thread)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
