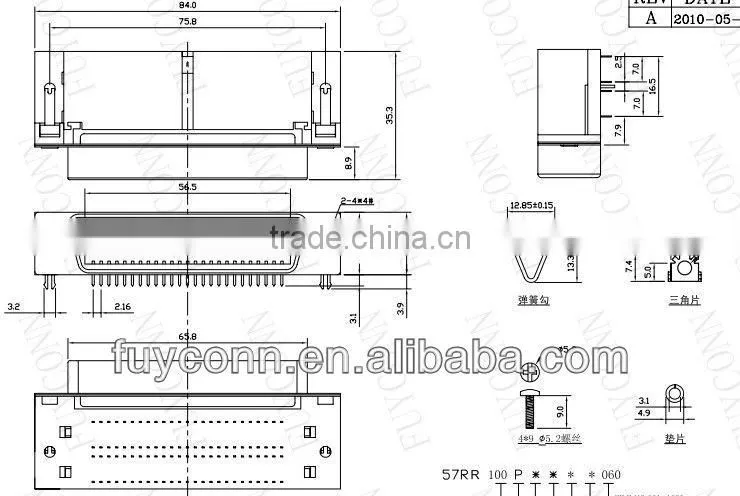

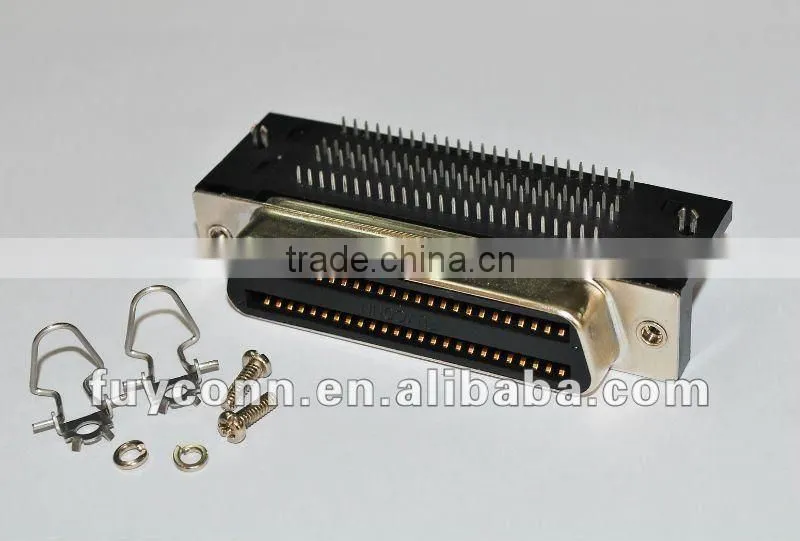

Centronics Champ 90 Degree PCB Mounting Amphenol Female 100 Pin Centronix Connector 2.16mm Pitch

Specifications

Item No.: FUY57060
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample

Specifications



1) Product features



1. Product Type: Connector

2. Product Line:CENTRONIC

3. Connector Style: Female

4. Certerline :2.16mm(0.85 in)

5. Number of Position:100 pin

6. Contact Material: Copper Alloy

7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')

8. Comb Material:Thermoplastic

9. UL Flammability Rating: UL-94-V0

10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel

11. Orientation:Standard

12. Special Function:(Pan Holes)

  A: Screw Lock  B:Rivet Insert

  C: 4.8mm Hex Screw Lock

  D: IEEE488 Hex Screw Lock



2) Electrical Specifications



1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C



3) Application



Product Type:	Centronics PCB Mounting Connector
Product Line:	Champ Connector
Gender:	Male
Connector Style:	Plug
Certerline :	2.16mm(0.85in)
Number of Position:	36 pin
Contact Plating:	Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Terminals Type	Straight Terminals
Insulator Color:	Black or Blue
Shielded:	Yes
Orientation:	Parllel Lines
Mating connector lock:	Screws Lock







4) Technology Parameters
