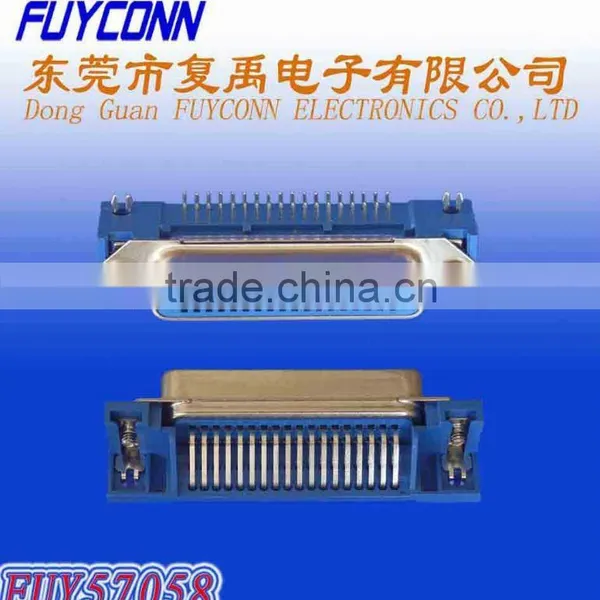

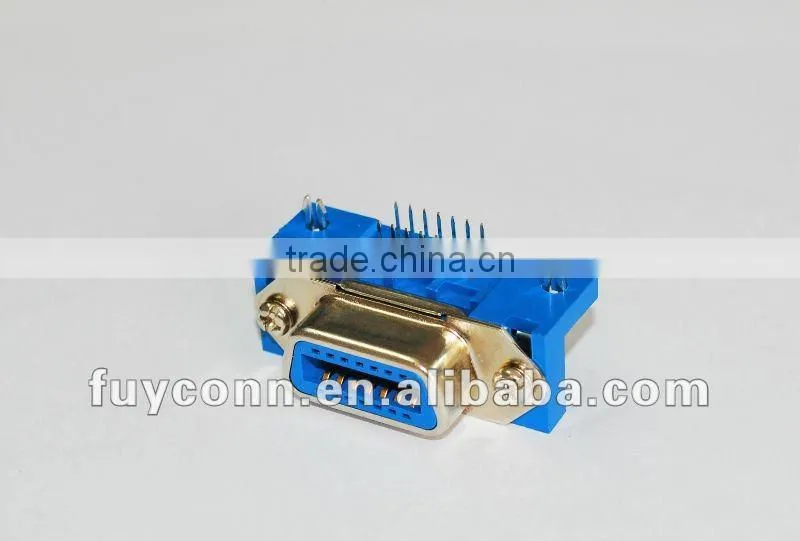

Help CenterCentronics PCB Mount 90 Degree Female Connector Receptacle Type
Related Products
-
Micro Ribbon PCB Female Connectors With Spring Approvaled ULE346172NegotiableMOQ: 1000 Pieces -
57 Series Female Centronics 90 Degree Connector for PCB With Board Lock and Bail ClipUS$ 1 - 2MOQ: 1000 Pieces
-
Centronic Connector PCB DIP Right AngleSocket TypeNegotiableMOQ: 100 Pieces
-
57 Series Centronics PCB Mounting Right Angle DIP Solder Receptacle Connector Female Champ 2.16mm PitchUS$ 1 - 2MOQ: 1000 Pieces
-
2.16mm Pitch Champ Amphenol 957 100 Pin Reversed Connector Right Angle PCB MountingType DIP Termination Female ReceptacleUS$ 4 - 6MOQ: 100 Pieces
Specifications

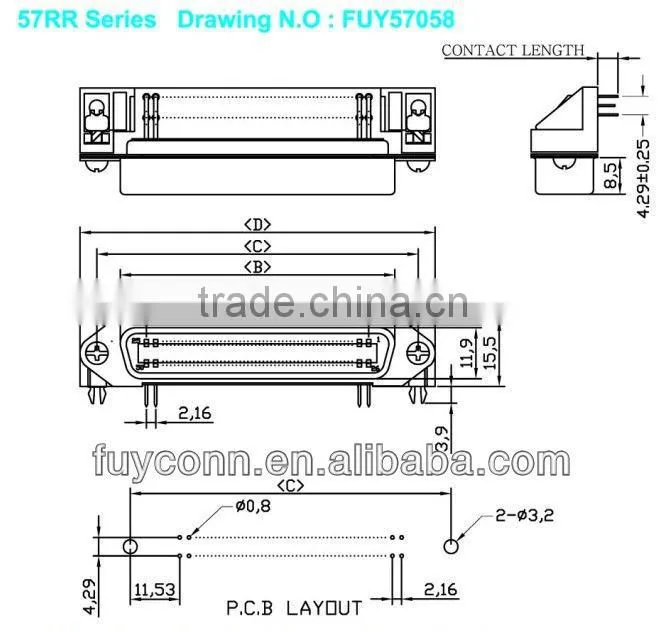

Item No.: FUY570581,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1)
2) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
3) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
4)Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
5) Technology Parameters
