Home > Products > 2.16mm Pitch Champ Solder Pin Connector > 90 degree Side cable Entry 2.16mm Pitch champ 25 pair Solder DDK Header connector Male Plug Type

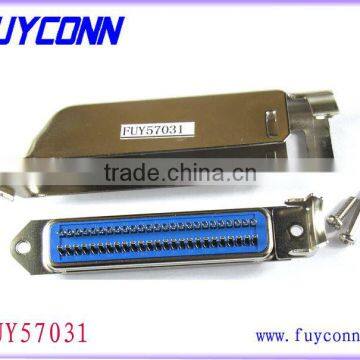

90 degree Side cable Entry 2.16mm Pitch champ 25 pair Solder DDK Header connector Male Plug Type
USD $1.5 - $3
/ Piece
1000 Pieces(Min.Order)
- 300000 Piece / Pieces per Month
- Guangzhou/ Sheznzhen
- T/T Credit Card
You May Like
-
57 Series DDK Ribbon Connector Solder Brass Contact Pin Male Plug Header 2.16mm Pitch
-
All Plastic TYCO 90 Degree Receptacle Solder Type Champ 50 Pin Socket Connector 2.16mm Pitch
-
TYCO AMP Plug Male 2.16mm pitch Champ Solder type 50 pin Header connector with 180 degree cover
-
Centronic TYCO AMP male Plug type Solder 50 pin 25 pair header connector with side cable entry plastic cover
-
2.16mm pitch Champ Easy and Soften Insulator Matel Cover Solder Pin Connector Male Plug Type
-
24 Pin Solder Contact Centronic Champ Connector Male Plug Type with 180 degree cable outlet Matel Cover
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCOONN | |
| Model Number | FUY57031 | Type | Other, Champ Solder Connector | |
| Application | Other, Cable to Cable | Gender | Male |
Product Description
Specifications
Item No. : FUY570311,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Technical Parameters
