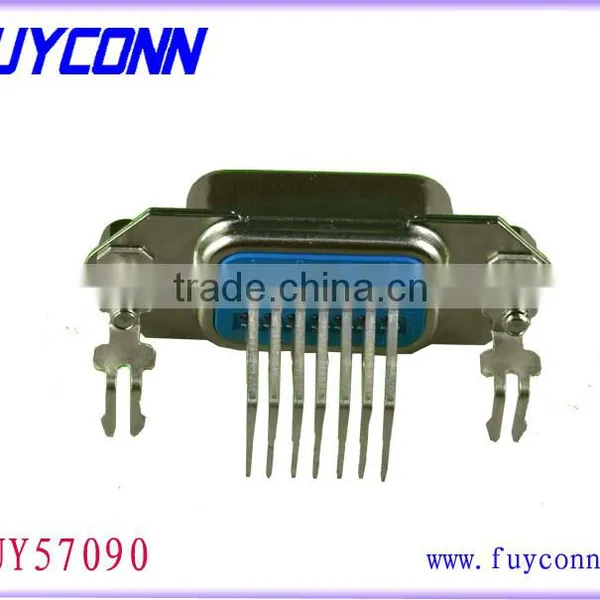

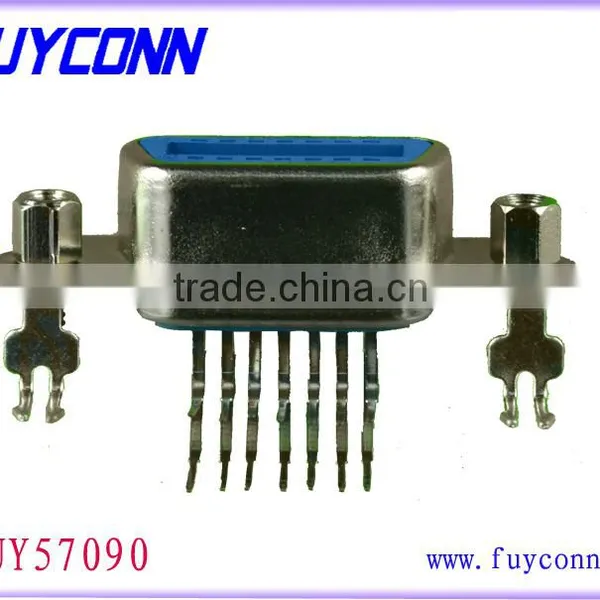

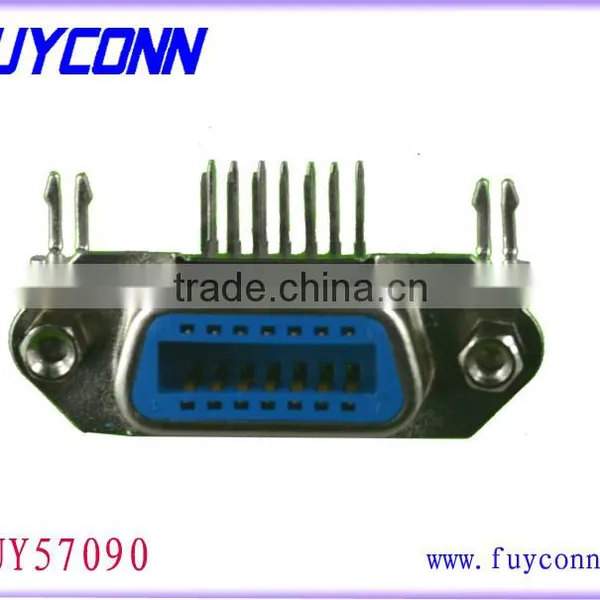

24 Pin Female DDK Centronics Connector PCB Right Angle Type
- 1000000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Right Angle PCB Mounting DDK 24 Pin Male Centronic Connector Solder DIP Plug Type
-
24 pin Centronic Connector Solder DIP Receptacle Female PCB Right Angle Type
-
0.085in pitch Right Angle PCB Mounting DDK 24P Solder DIP Receptacle Type connector Female
-
0.085in pitch DDK DIP Right Angle PCB Header Connector 24 pin Female Receptacle
-
0.085in Pitch PCB Mount 90 degree Receptacle Connector Female 24pin Socket Header with Board Lock
-
DDK DIP Male Centronic 24 Way Connector Right Angle PCB Mount Plug Type
Product Details
| Place of Origin | China | Brand Name | FUYCONN | |
| Model Number | FUY57090-24P | Type | Other, Connector, Right Angle PCB Connector | |
| Application | PCB | Gender | Female |
Product Description
Specifications
Product features
Product Type: Connector
Product Line:CENTRONIC/CHAMP
Product Model: FUY57090
Connector Style: Male Plug
Orientation:Standard Orientation
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Mechanical Attachment
Panel Attachment Style: Square Rivet Insert
Insulator Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50 pins
PCB Mount Retention Type: Right Angel
Contact Plating: Gold (1u", 3u",10u",15u",20u",30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Receptacle
Housing Material: Thermoplastic
UL Flammability Rating: UL 94-V0
Special Function
A:90°C DIP Square Holes ,Round Head (4*7)
B:Screw Lock
C:3.9mm"Z" Fork Board Lock (Both #4-40 UNC Thread)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |

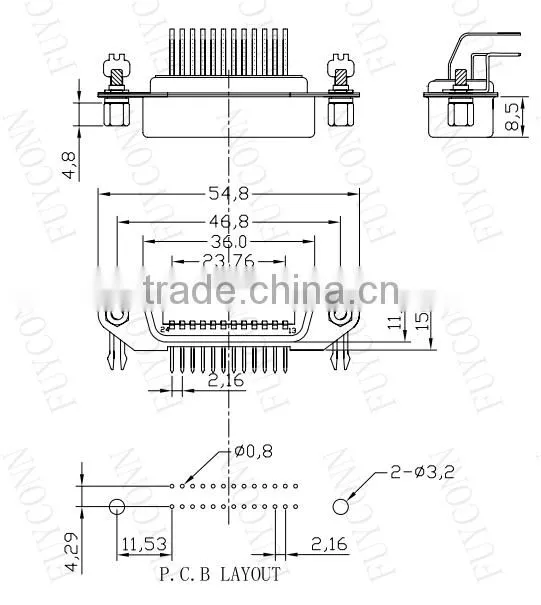

Technology Parameters
